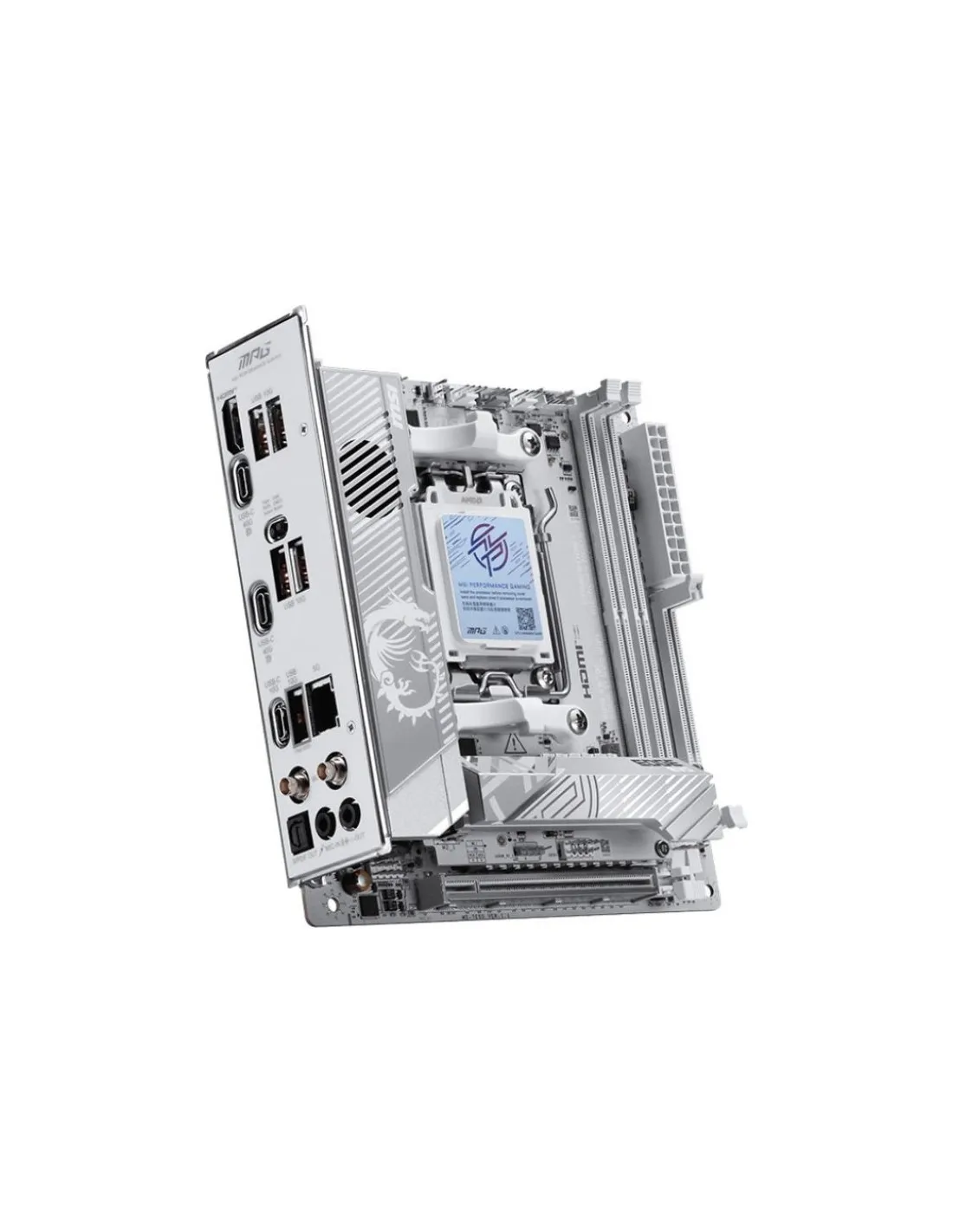

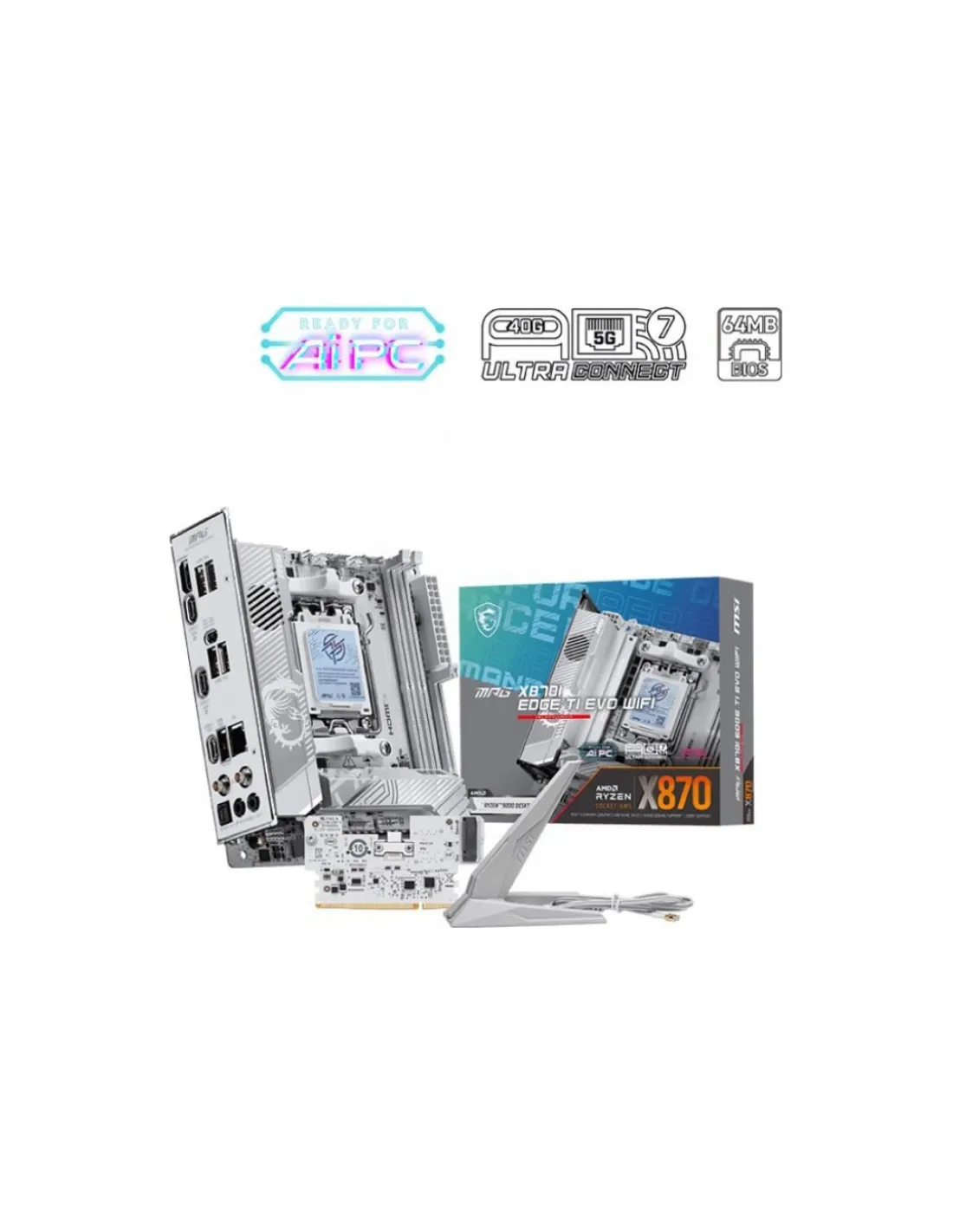

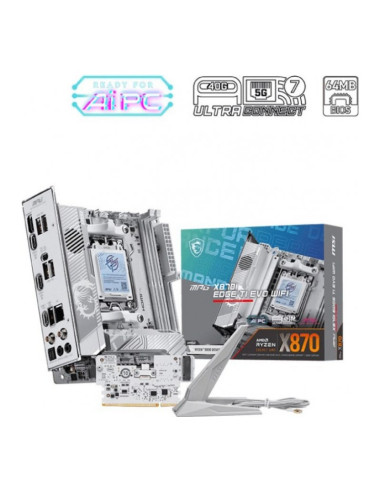

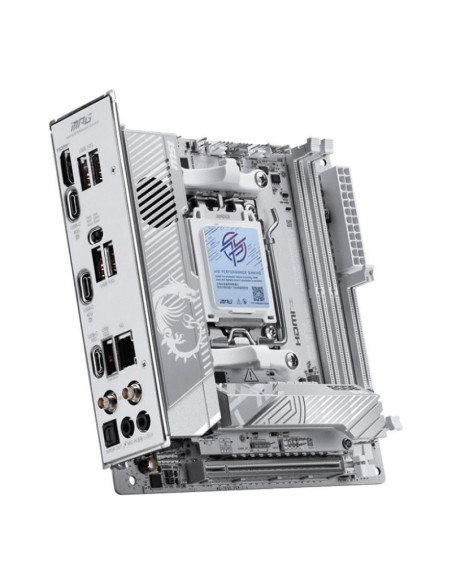

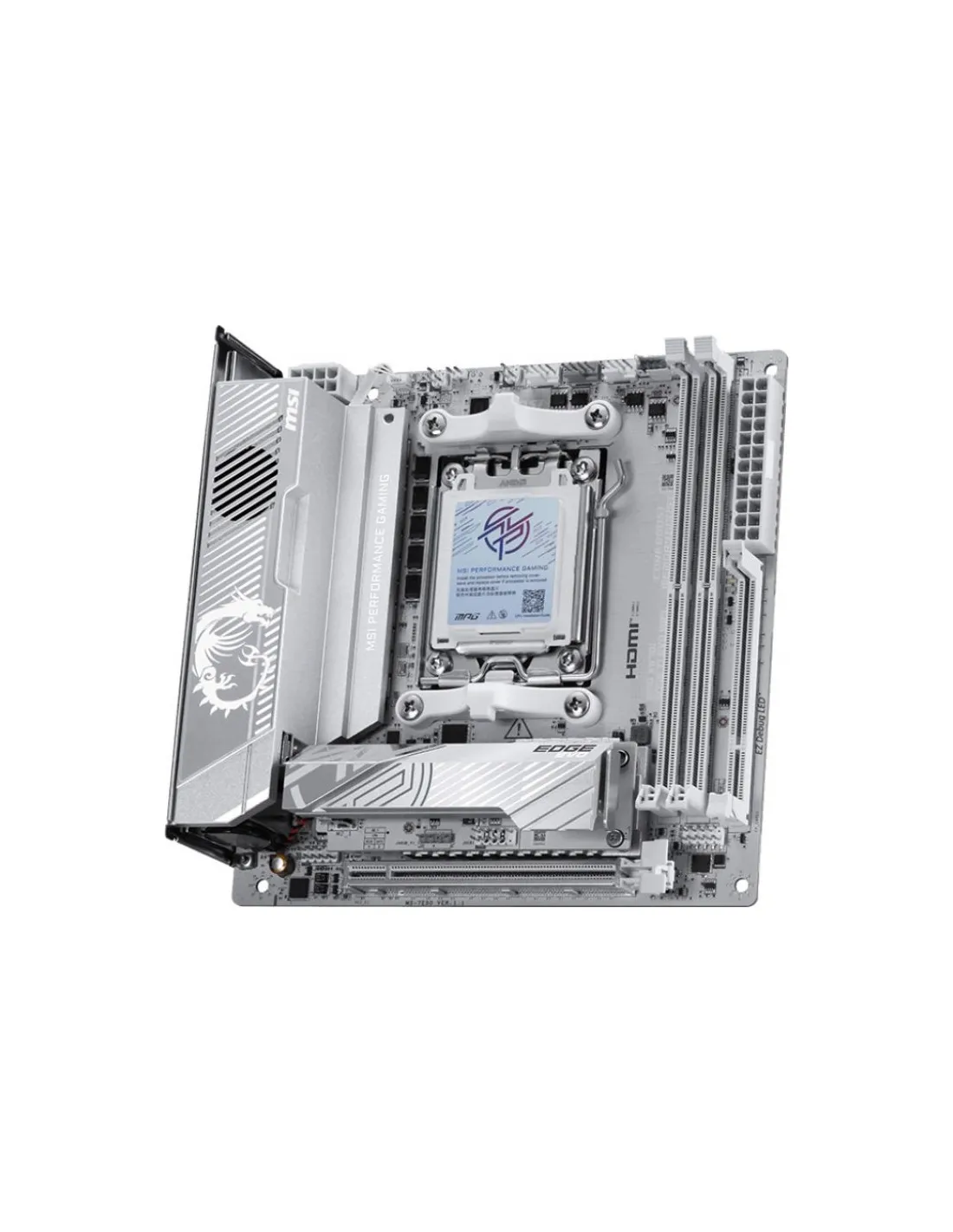

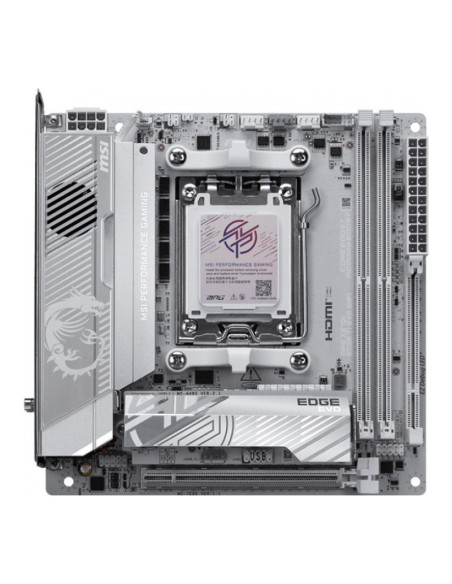

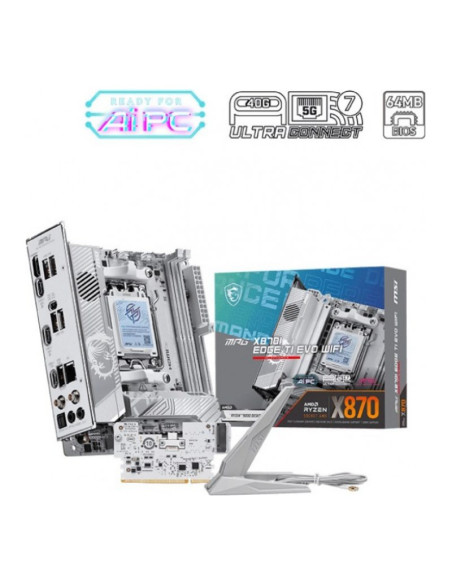

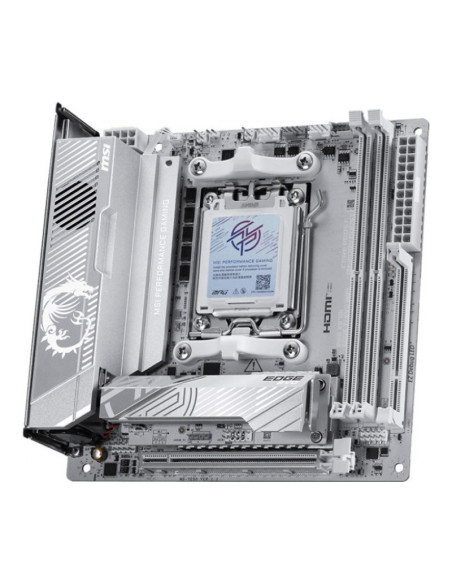

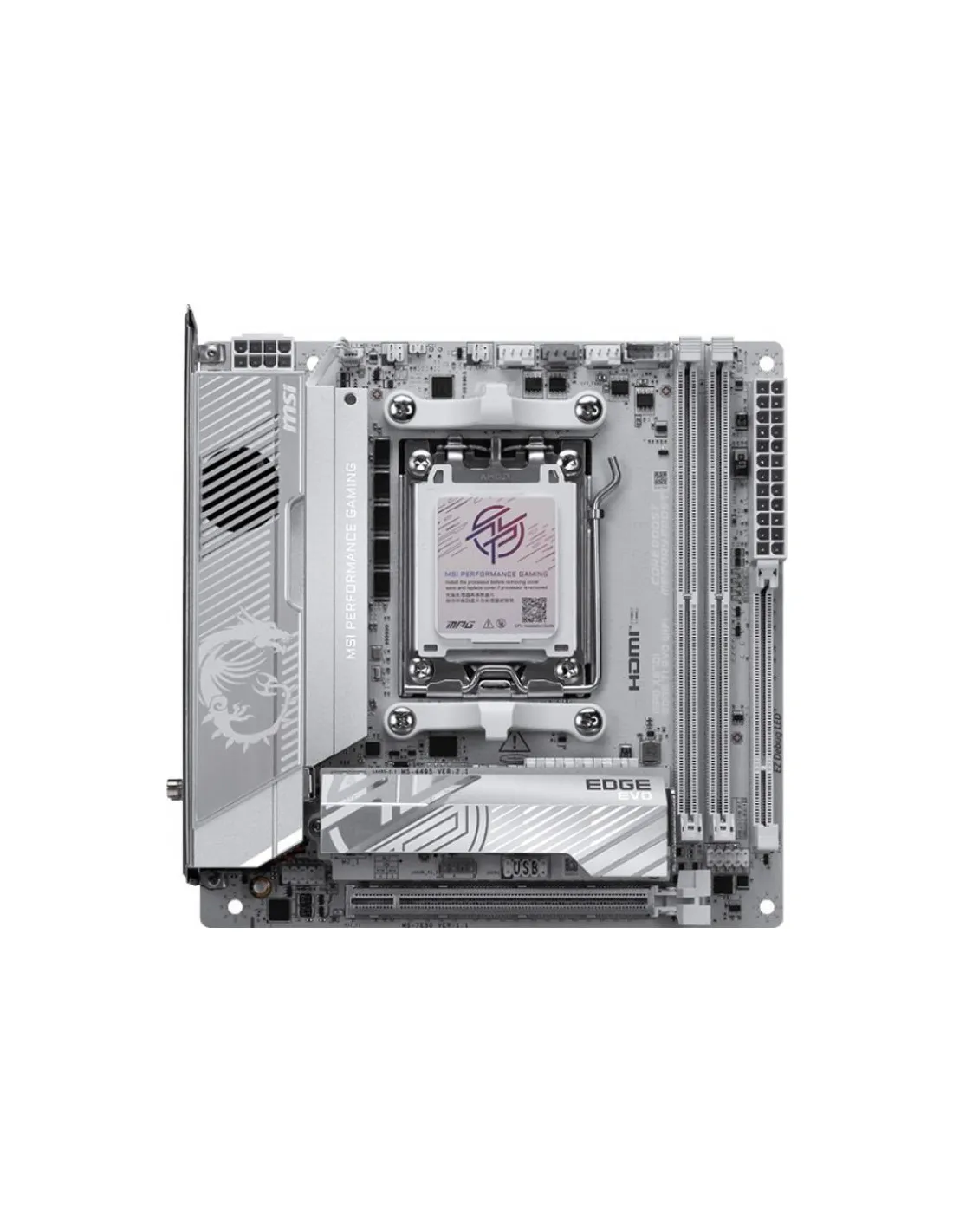

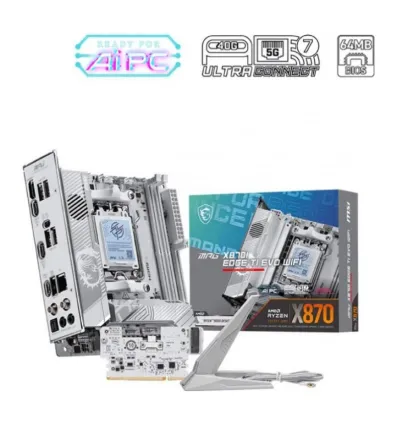

MSI MPG X870I Edge Ti Evo WiFi Socket AM5 Mini-ITX

Carcterísticas de la placa base MSI MPG X870I Edge Ti Evo WiFi

Procesador

• AMD X870

Chipset

• Supports AMD Ryzen™ 9000/ 8000/ 7000 Series Desktop Processors
• Socket AM5

Memoria

• 2x DDR5, Maximum Memory Capacity 128GB
• Memory Support DDR5 10000 - 5600 (OC) MT/s / 5600 - 4800 (JEDEC) MT/s
• Ryzen™ 9000 Series Processors max. overclocking frequency:
• 1DPC 1R Max speed up to 8400+ MT/s
• 1DPC 2R Max speed up to 8000+ MT/s
• Supports AMD POR Speed and JEDEC Speed
• Supports Memory Overclocking and AMD EXPOTM
• Supports Dual-Channel mode
• Supports Non-ECC, Un-buffered memory
• Supports CUDIMM, Clock Driver bypass mode only

Slots

• 1x PCI-E x16 slot
• PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU)
• PCI_E1 slot (From CPU)
• Supports PCIe 5.0 x16 (For Ryzen™ 9000/ 7000 Series processors)
• Supports PCIe 4.0 x8 (For Ryzen™ 8700/ 8600/ 8400 Series processors)
• Supports PCIe 4.0 x4 (For Ryzen™ 8500/ 8300 Series processor)
• 1x FP card slot
• Supports the installation of MSI 5-in-1 XPANDER card only.

Gráficos

• 1x HDMI™
• Support HDMITM 2.1 with TMDS port, supporting a maximum resolution of 4K 60Hz*
• 2x Type-C DisplayPort

Almacenamiento

• 1x M.2
• M.2_1 Source (From CPU) supports up to PCIe 5.0 x4 , supports 2280 devices
• M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280 devices
• M.2_3 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280 devices
• 2x SATA 6G
• M.2_1 slot (From CPU)
• Supports up to PCIe 5.0 x4 (For Ryzen™ 9000/ 7000 Series processors)
• Supports up to PCIe 4.0 x4 (For Ryzen™ 8000 Series processors)
• M.2_2 slot (From X870 chipset)
• Supports up to PCIe 4.0 x4
• Supports 2260/2280 storage devices
• Supports single sieded M.2 SSD only
• 5-in-1 XPANDER Card
• M.2_3 slot (From X870 chipset)
• Supports up to PCIe 4.0 x4
• Supports 2260/2280 storage devices
• Supports single sided M.2 SSD only
• Supports RAID 0, and RAID 1 for SATA storage devices
• Supports RAID 0, RAID 1 and RAID 5* for M.2 NVMe storage devices

USB

• 2x USB 2.0 (Front)
• 2x USB 5Gbps Type A (Front)
• 5x USB 10Gbps Type A (Rear)
• 1x USB 10Gbps Type C (Rear)
• 1x USB 20Gbps Type C (Front)
• 2x USB 40Gbps Type C (Rear)

Audio

• Realtek® ALC4080 Codec
• 7.1-Channel USB High-Performance Audio
• Supports up to 32-Bit/384 kHz playback on front panel
• Supports S/PDIF output

Conectividad y redes

• 1x Realtek® 8126 5G LAN
• Wi-Fi 7
• The Wireless module is pre-installed in the M.2 (Key-E) slot
• Supports MU-MIMO TX/RX, 2.4GHz/ 5GHz/ 6GHz (320MHz) up to 5.8Gbps
• Supports 802.11 a/ b/ g/ n/ ac/ ax/ be
• Supports Bluetooth® 5.4, MLO, 4KQAM

Conectores Internos

• 1x Power Connector(ATX_PWR)
• 1x Power Connector(CPU_PWR)
• 1x CPU Fan
• 1x Combo Fan (Pump_Sys Fan)
• 1x System Fan
• 1x EZ Conn-header (JAF_2)
• 2x Front Panel (JFP)
• 1x Chassis Intrusion (JCI)
• 1x Front Audio (JAUD)
• 1x Addressable V2 RGB LED connector (JARGB_V2)
• 2x USB 2.0 ports
• 2x USB 5Gbps Type A ports
• 1x USB 20Gbps Type C ports

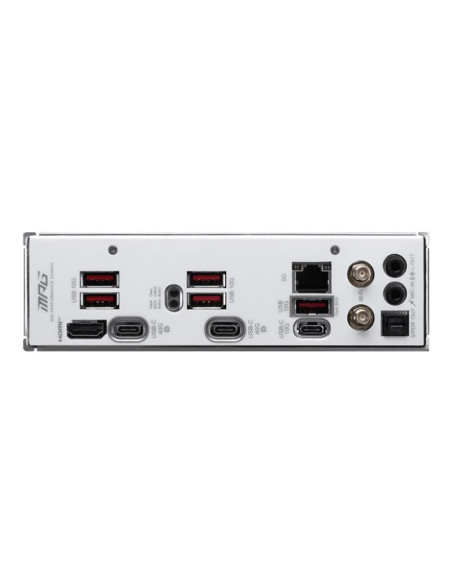

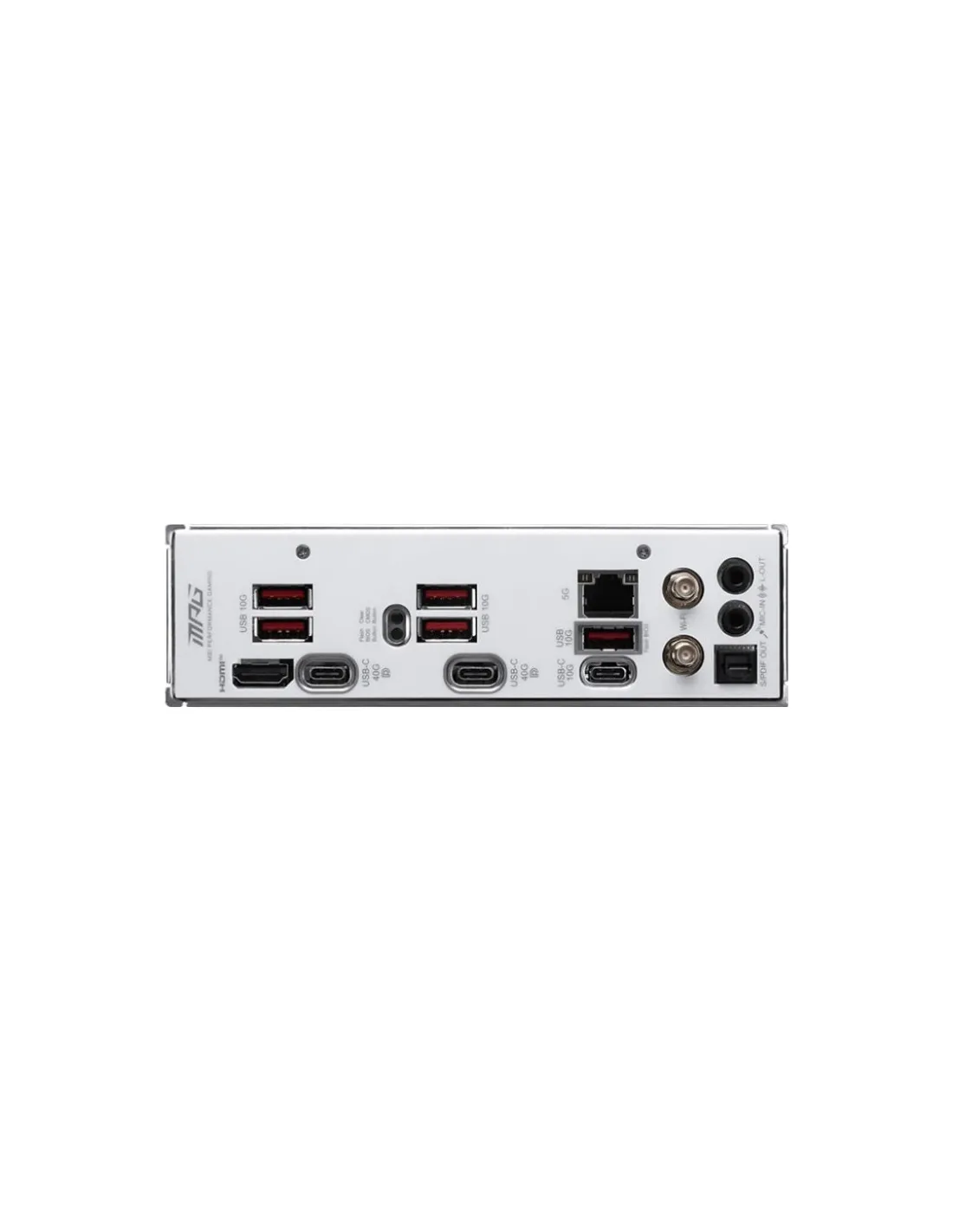

Conectores Traseros

• USB 10Gbps Type-A
• Clear CMOS Button
• USB 10Gbps Type-A
• 5G LAN
• Wi-Fi / Bluetooth
• Audio Connectors
• HDMI™
• USB 40Gbps Type-C
• Flash BIOS Button
• USB 10Gbps Type-C
• Optical S/PDIF Out

Factor de forma

• Mini-ITX
