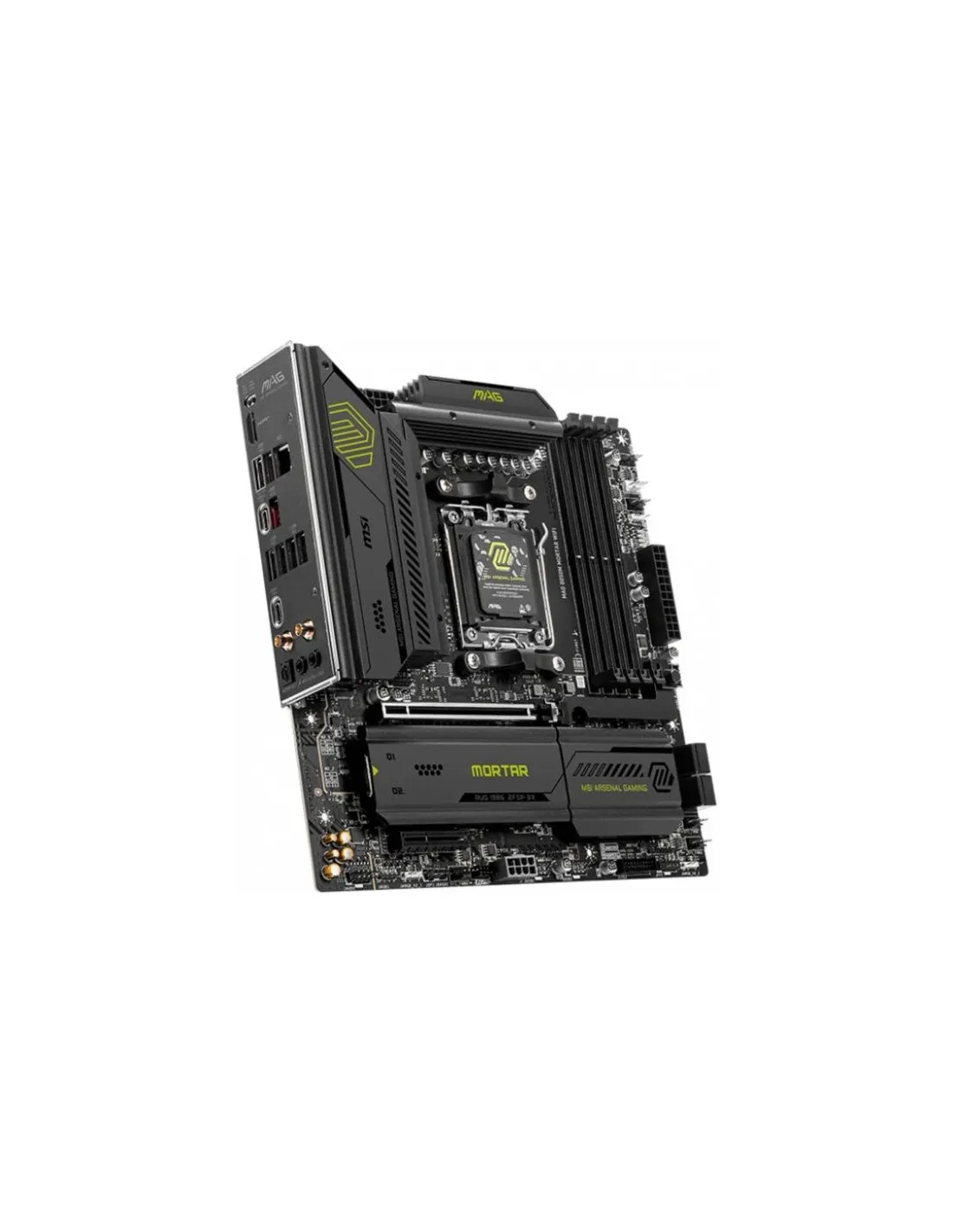

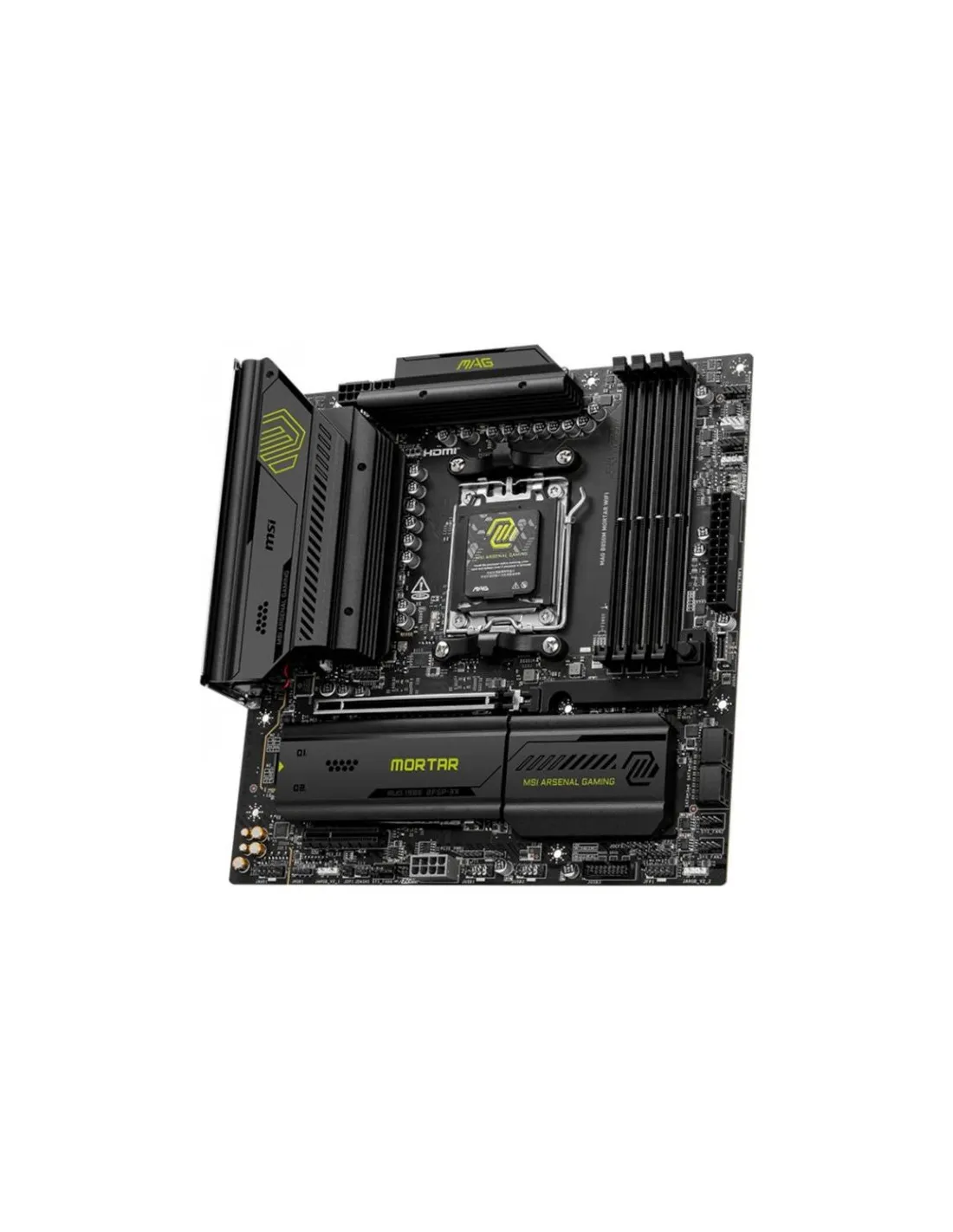

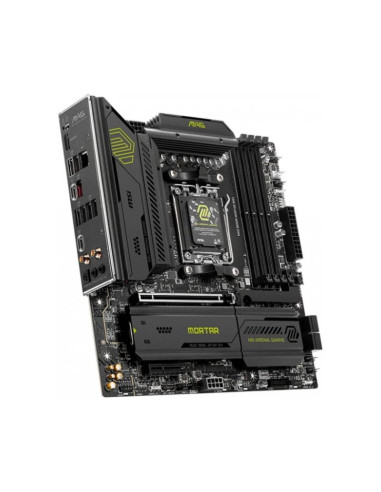

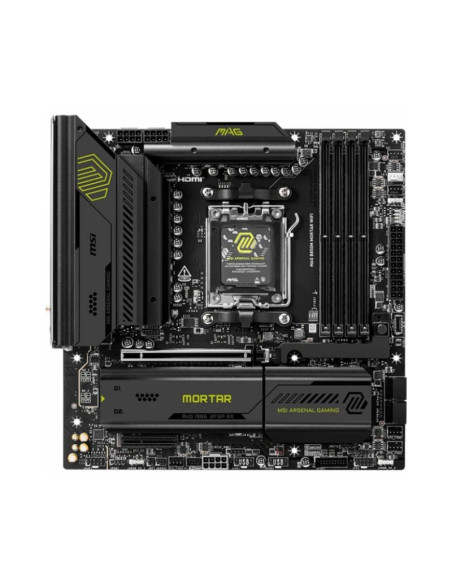

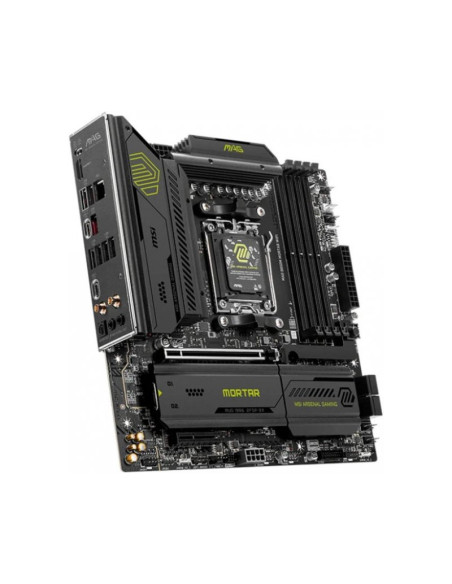

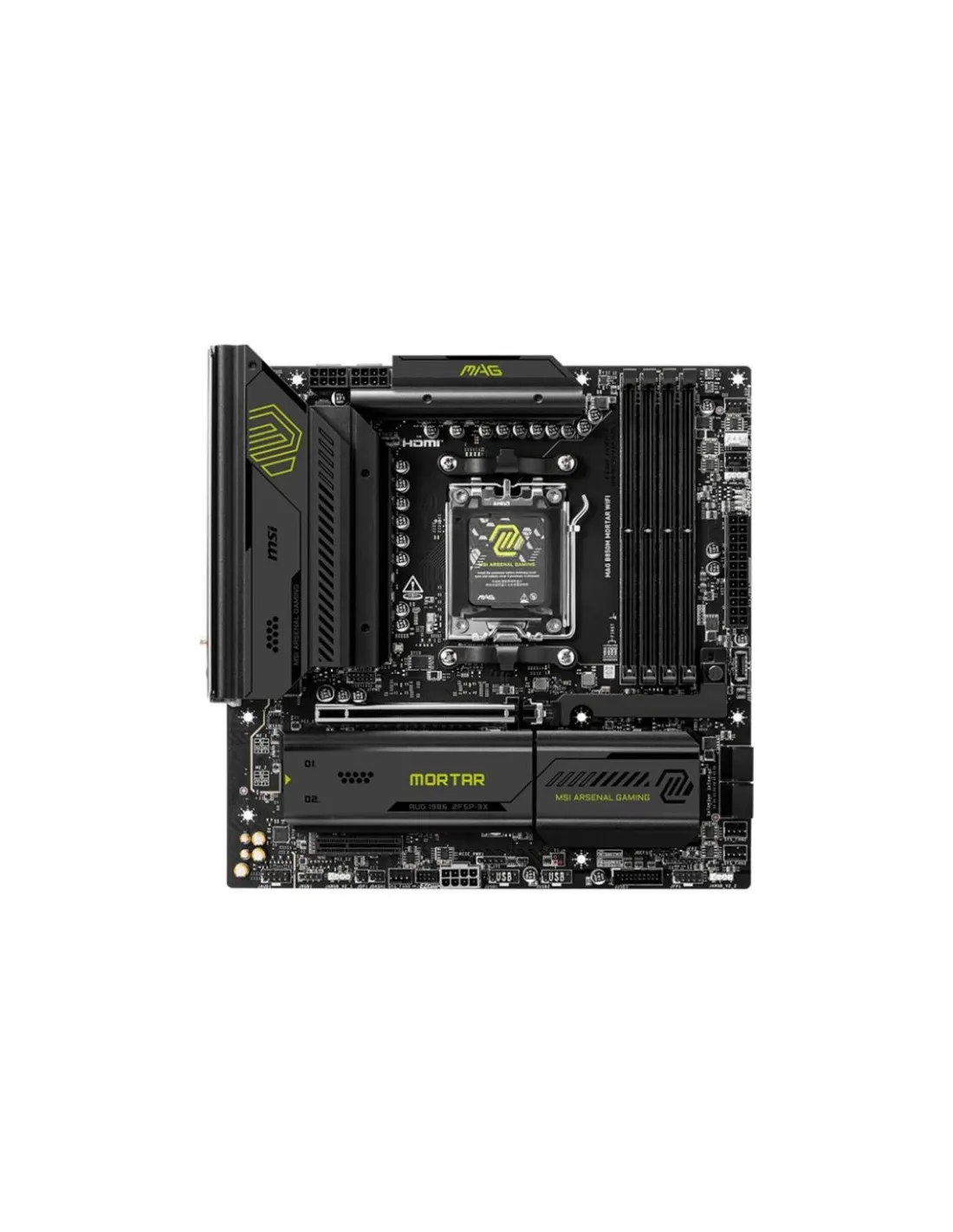

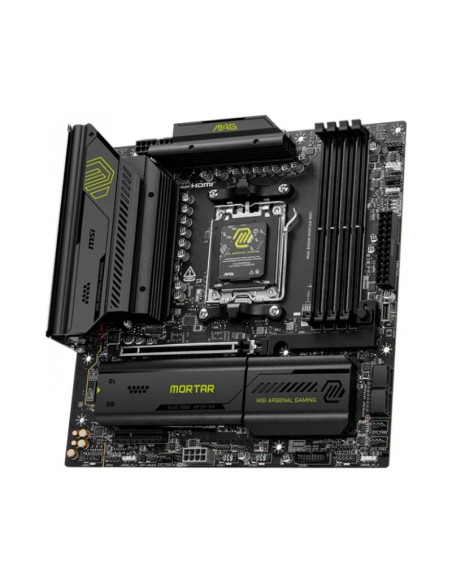

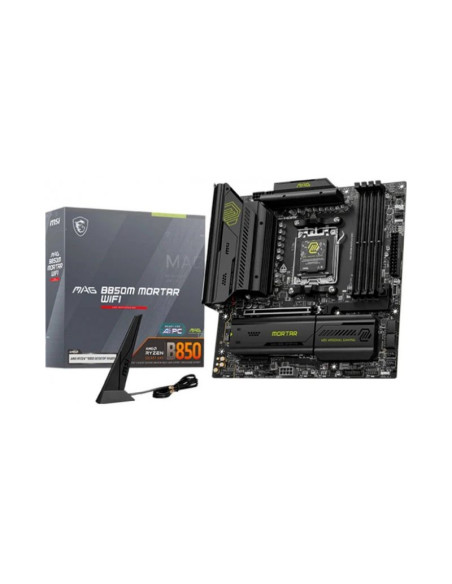

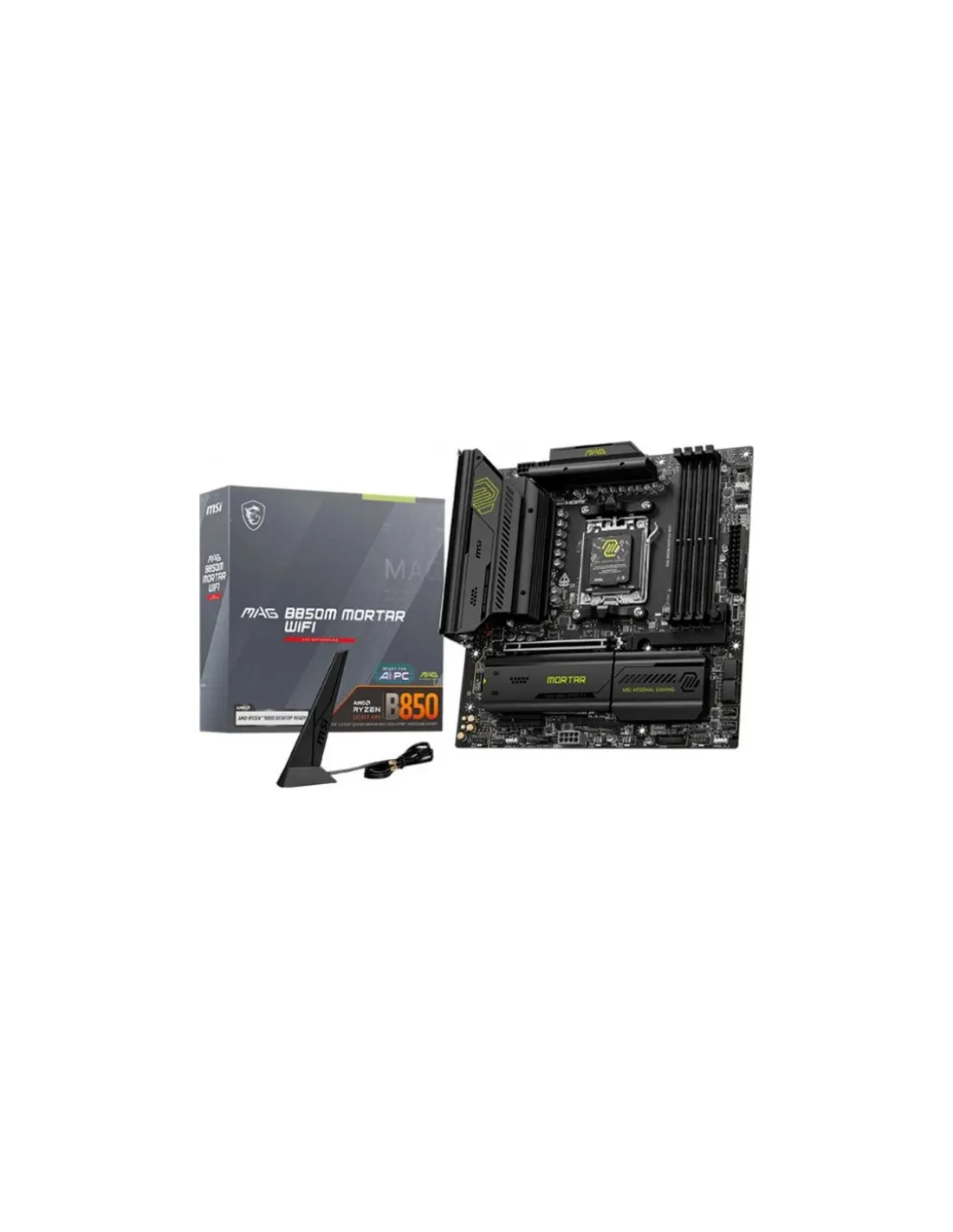

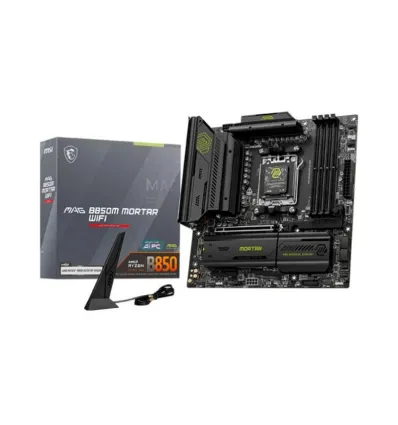

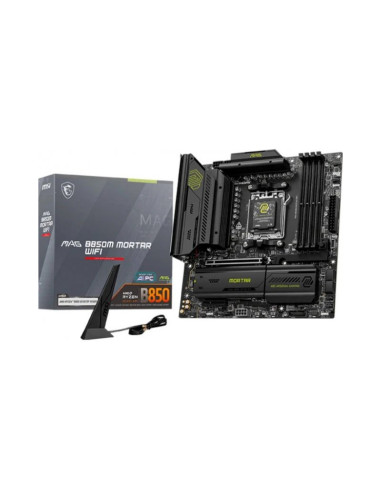

MSI MAG B850M Mortar WiFi Socket AM5 Micro-ATX

Características de la placa base MSI MAG B850M Mortar WiFi Socket AM5 Micro-ATX

Procesador

• Supports AMD Ryzen™ 9000/ 8000/ 7000 Series Desktop Processors
• Socket AM5

Chipset

• AMD B850

Memoria

• 4x DDR5 UDIMM, Maximum Memory Capacity 256GB
• Memory Support DDR5 8200 - 5600 (OC) MT/s / 5600 - 4800 (JEDEC) MT/s
• Ryzen™ 9000 Series Processors max. overclocking frequency:
• 1DPC 1R Max speed up to 8200+ MT/s
• 1DPC 2R Max speed up to 6400+ MT/s
• 2DPC 1R Max speed up to 6400+ MT/s
• 2DPC 2R Max speed up to 4800+ MT/s
• Supports AMD POR Speed and JEDEC Speed
• Supports Memory Overclocking and AMD EXPO™
• Supports Dual-Channel mode
• Supports Non-ECC, Un-buffered memory
• Supports CUDIMM, Clock Driver bypass mode only

Slots

• 1x PCI-E x16 slot
• 1x PCI-E x4 slot
• PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU)
• PCI_E2 Gen PCIe 4.0 supports up to x4 (From Chipset)
• PCI_E1 slot
• Supports PCIe 5.0 x16 (For Ryzen™ 9000/ 7000 Series processors)
• Supports PCIe 4.0 x8 (For Ryzen™ 8700/ 8600/ 8400 Series processors)
• Supports PCIe 4.0 x4 (For Ryzen™ 8500/ 8300 Series processors)

Gráficos

• 1x HDMI™
• Support HDMI™ 2.1 FRL, maximum resolution of 8K 60Hz
• AMD MULTI-GPU Support

Almacenamiento

• 3x M.2
• M.2_1 Source (From CPU) supports up to PCIe 5.0 x4 , supports 2280/2260 devices
• M.2_2 Source (From CPU) supports up to PCIe 5.0 x4 , supports 2280/2260 devices
• M.2_3 Source (From Chipset) supports up to PCIe 4.0 x2 , supports 2280 devices
• 4x SATA 6G
• M2_1 slot
• Supports up to PCIe 5.0 x4 (For Ryzen™ 9000/ 7000 Series processors)
• Supports up to PCIe 4.0 x4 (For Ryzen™ 8000 Series processors)
• M2_2 slot
• Supports up to PCIe 5.0 x4 (For Ryzen™ 9000/ 7000 Series processors)
• Supports up to PCIe 4.0 x4 (For Ryzen™ 8700/ 8600/ 8400 Series processors)
• Supports up to PCIe 4.0 x2 (For Ryzen™ 8500/ 8300 Series processors)
• M2_3 slot
• Supports up to PCIe 4.0 x2
• Supports RAID 0 , RAID 1 and RAID 10 for SATA storage devices
• Supports RAID 0, RAID 1 and RAID 5 for M.2 NVMe storage devices

USB

• 4x USB 5Gbps Type A (Rear)
• 2x USB 5Gbps Type A (Front)
• 3x USB 10Gbps Type A (Rear)
• 1x USB 10Gbps Type C (Rear)
• 1x USB 10Gbps Type C (Front)
• 1x USB 20Gbps Type C (Rear)

Audio

• Realtek® ALC4080 Codec
• 7.1-Channel USB High Performance Audio
• Supports up to 32-bit/384kHz playback on front panel
• Supports S/PDIF output

Conectividad y redes

• Realtek® 8126-VB 5G LAN
• Wi-Fi 7 Solution
• The Wireless module is pre-installed in the M.2 (Key-E) slot
• Supports MU-MIMO TX/RX, 2.4GHz/ 5GHz/ 6GHz* (320MHz) up to 5.8Gbps
• Supports 802.11 a/ b/ g/ n/ ac/ ax/ be
• Supports Bluetooth® 5.4, MLO, 4KQAM

Conectores Internos

• 1x Conector de alimentación (ATX_PWR)
• 2x Conector de alimentación (CPU_PWR)
• 1x Conector de alimentación (PCIE_PWR 8 pines)
• 1x Ventilador de CPU
• 1x Ventilador combinado (Ventilador Pump_Sys)
• 4x Ventilador del sistema
• 1x Encabezado de conexión EZ (JAF_1)
• 2x Panel frontal (JFP)
• 1x Intrusión de chasis (JCI)
• 1x Audio frontal (JAUD)
• 1x Conector del controlador de ajuste (JDASH)
• 3x Conector LED RGB V2 direccionable (JARGB_V2)
• 1x Conector LED RGB (JRGB)
• 1x Encabezado de pines TPM (compatible con TPM 2.0)
• 4x Puertos USB 2.0
• 2x Puertos USB tipo A de 5 Gbps
• 1x Puertos USB tipo C de 10 Gbps

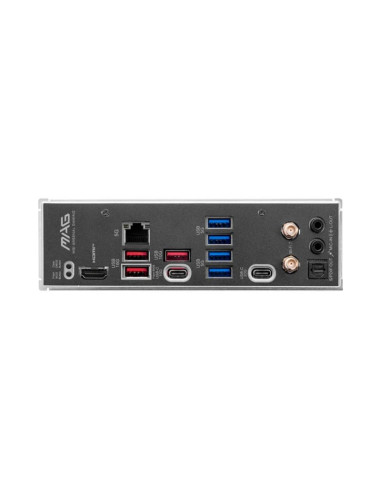

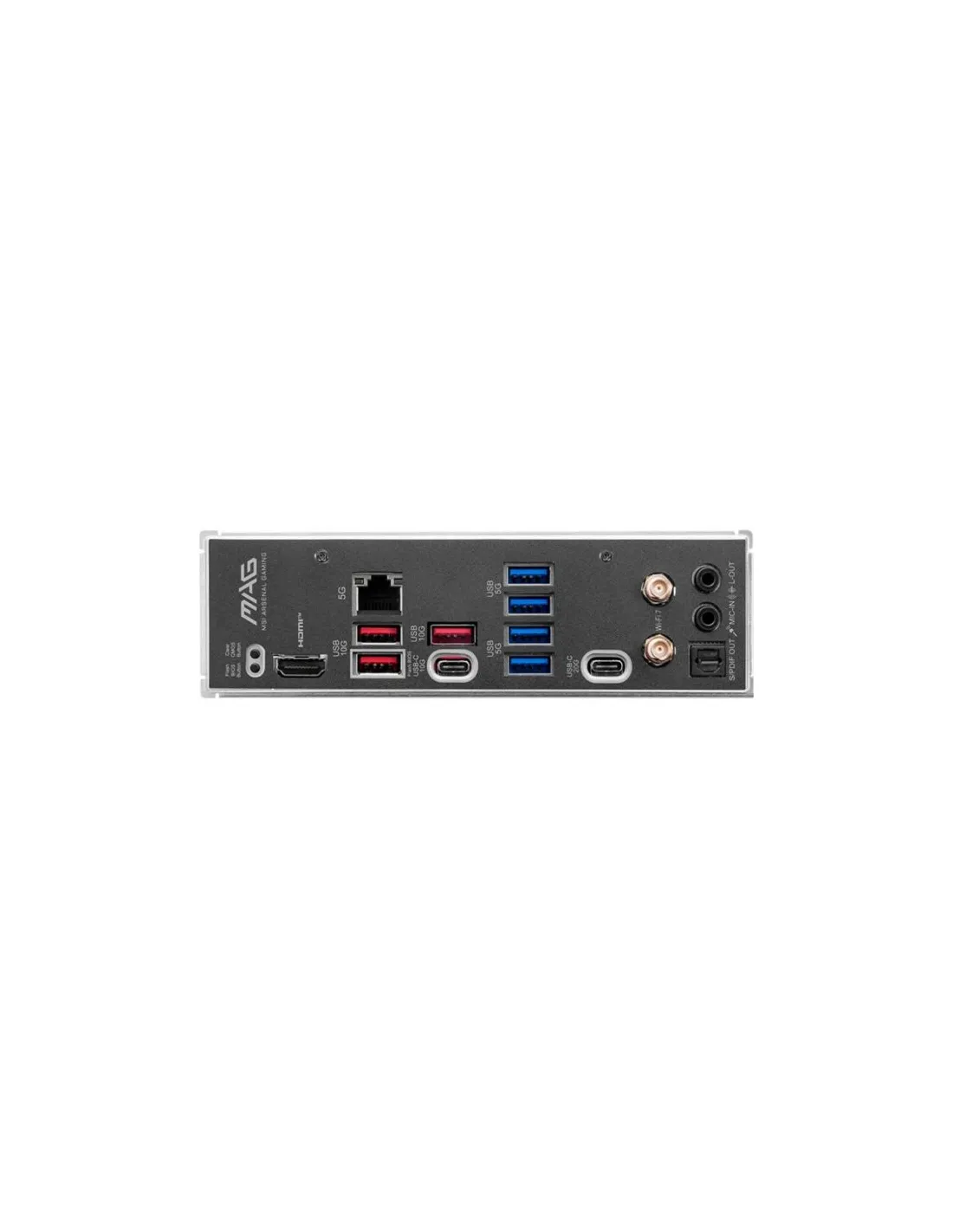

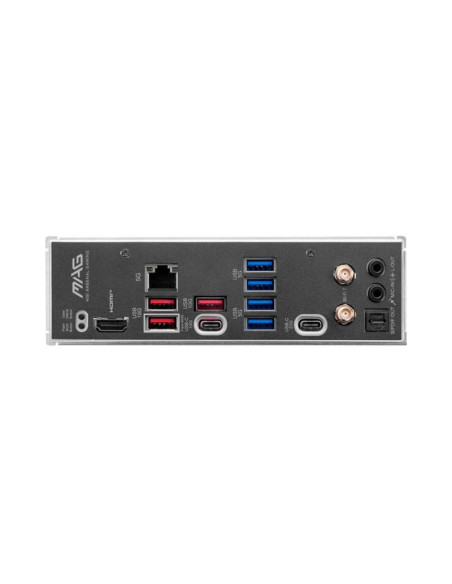

Conectores Traseros

• Botón de borrado de CMOS
• Red de área local 5G
• USB 10 Gbps Tipo A
• USB 5 Gbps Tipo A
• Conectores de audio
• Botón Flash BIOS
• HDMI™
• USB 10 Gbps Tipo A
• USB 10 Gbps Tipo-C
• USB 20 Gbps Tipo-C
• Wi-Fi / Bluetooth
• Salida óptica S/PDIF

Factor de forma

• mATX
• 243,84 mm x 243,84 mm
