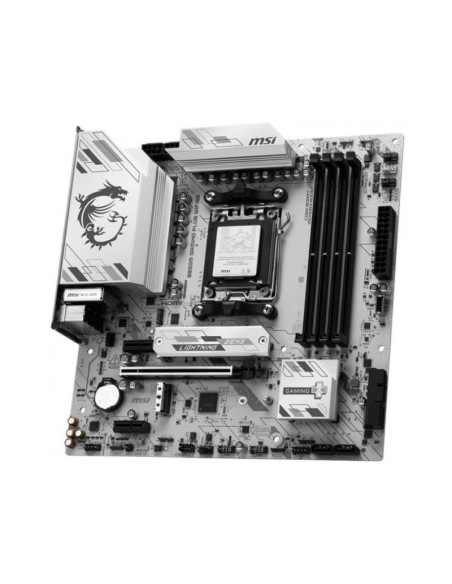

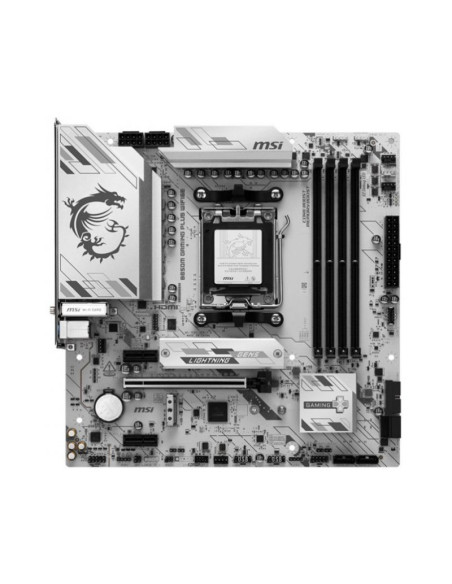

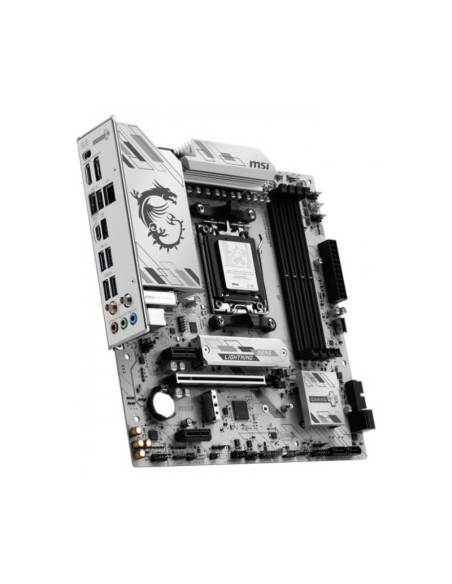

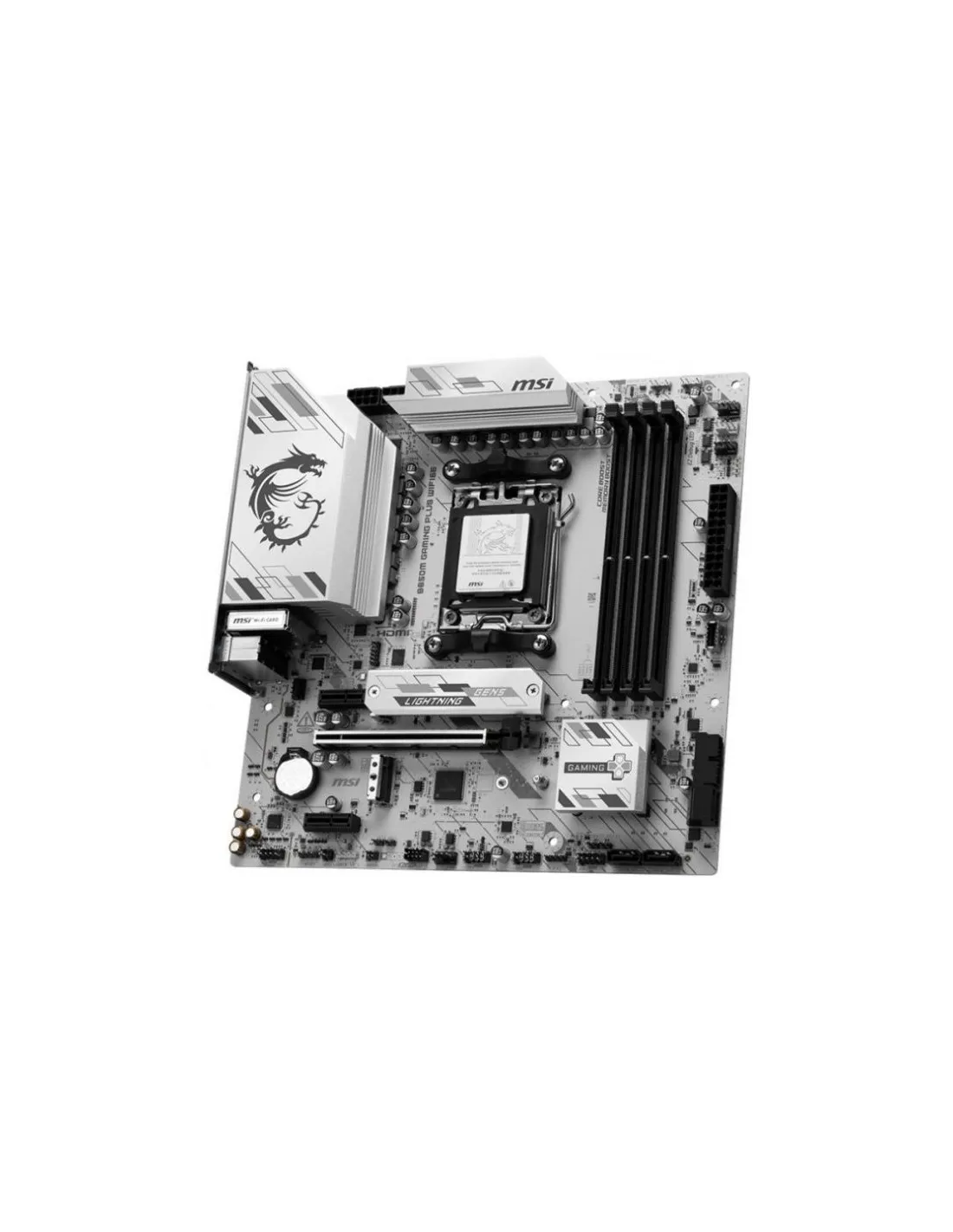

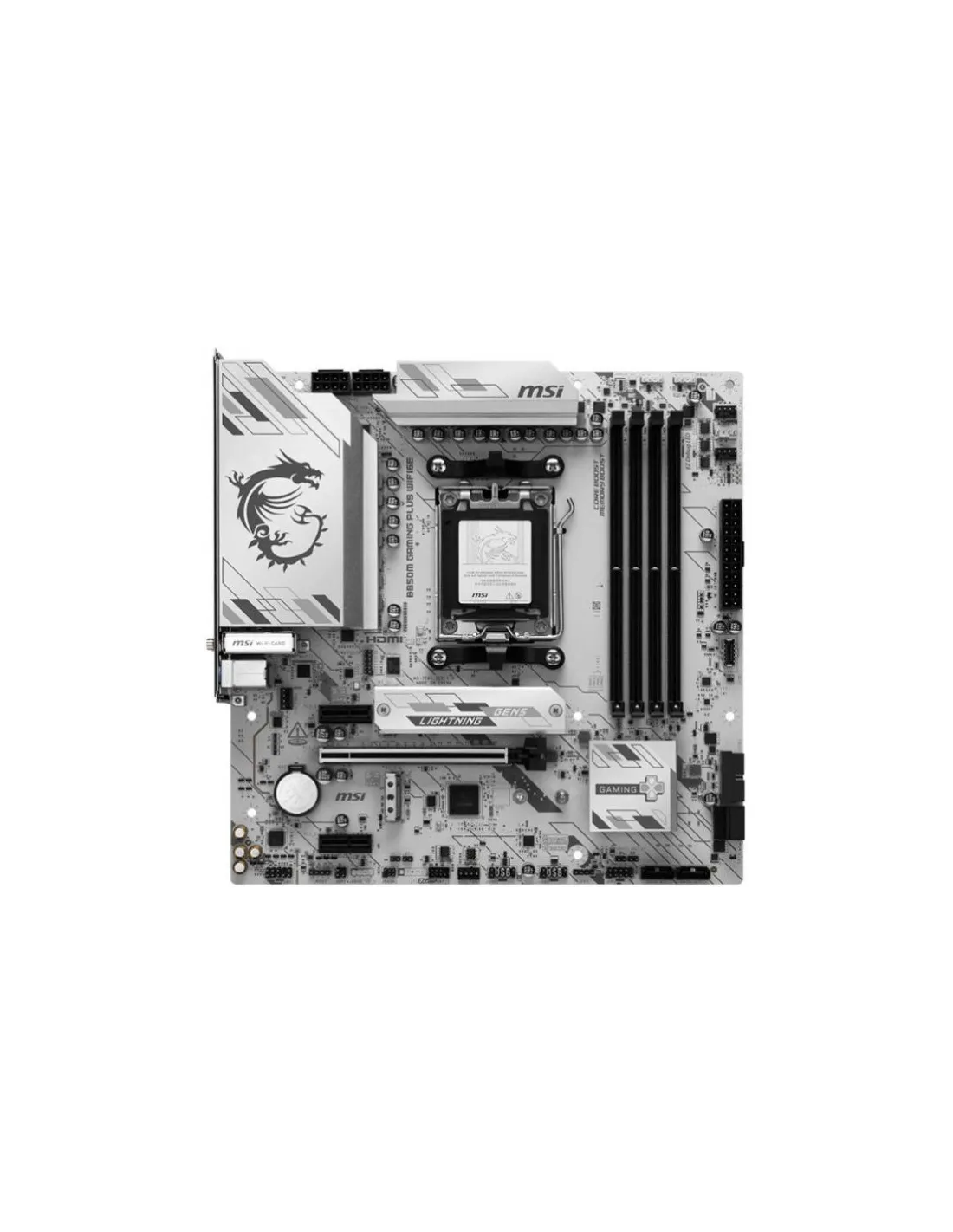

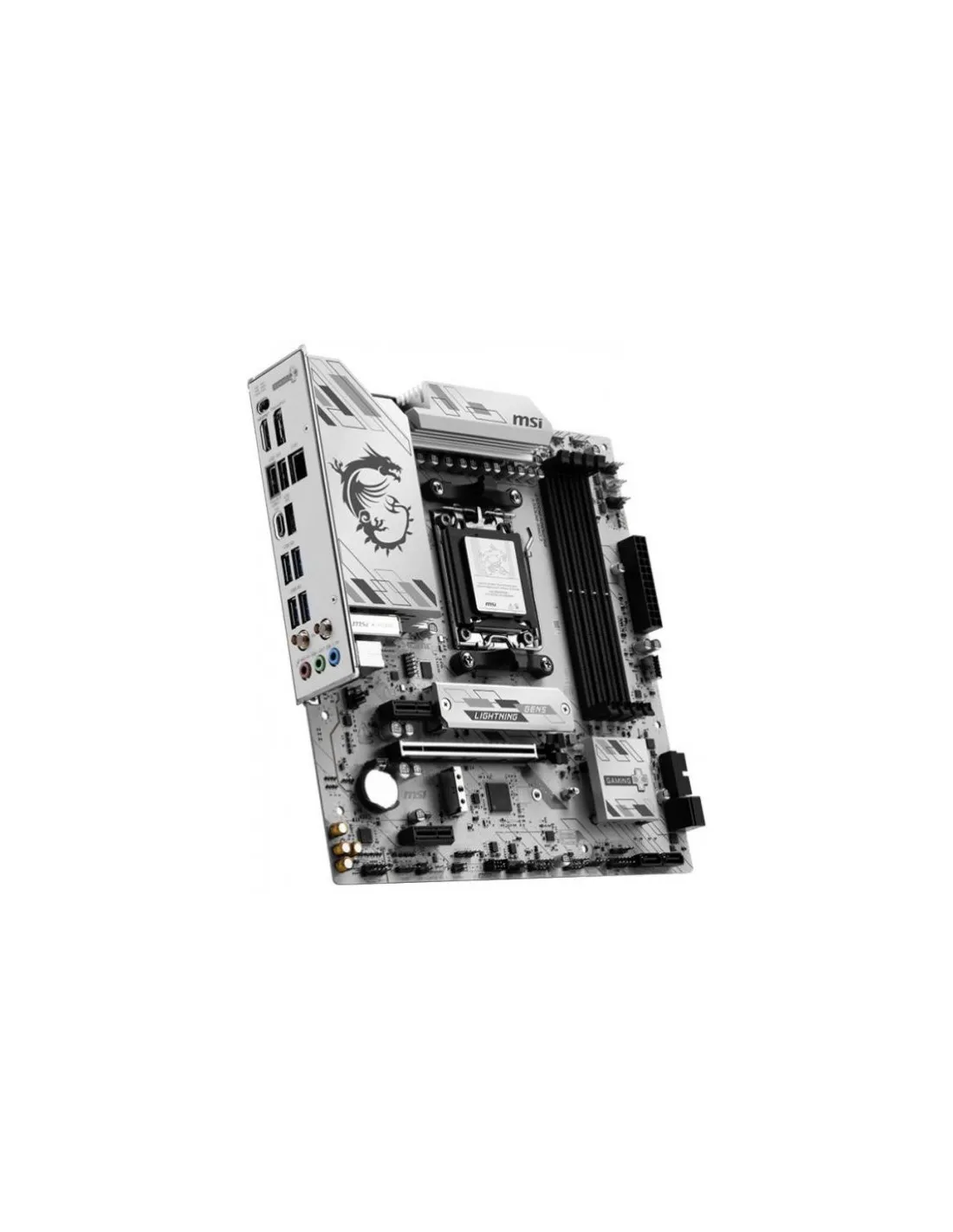

MSI B850M Gaming Plus WiFi6E Socket AM5 Micro-ATX

Características de la placa base MSI B850M Gaming Plus WiFi6E Socket AM5 Micro-ATX

Procesador

• Supports AMD Ryzen™ 9000/ 8000/ 7000 Series Desktop Processors
• Socket AM5

Chipset

• AMD B850

Memoria

• 4x DDR5 UDIMM, Maximum Memory Capacity 256GB
• Memory Support DDR5 8200 - 5600 (OC) MT/s / 5600 - 4800 (JEDEC) MT/s
• Ryzen™ 9000 Series Processors max. overclocking frequency:
• 1DPC 1R Max speed up to 8200+ MT/s
• 1DPC 2R Max speed up to 6400+ MT/s
• 2DPC 1R Max speed up to 6400+ MT/s
• 2DPC 2R Max speed up to 6000+ MT/s
• Supports AMD POR Speed and JEDEC Speed
• Supports Memory Overclocking and AMD EXPOTM
• Supports Dual-Channel mode
• Supports Non-ECC, Un-buffered memory
• Supports CUDIMM, Clock Driver bypass mode only

Slots

• 1x PCI-E x16 slot
• 2x PCI-E x1 slot
• PCI_E1 Gen PCIe 3.0 supports up to x1 (From Chipset)
• PCI_E2 Gen PCIe 4.0 supports up to x16 (From CPU)
• PCI_E3 Gen PCIe 3.0 supports up to x1 (From Chipset)
• PCI_E2 slot
• Supports PCIe 4.0 x16 (For Ryzen™ 9000/ 7000 Series processors)
• Supports PCIe 4.0 x8 (For Ryzen™ 8700/ 8600/ 8400 Series processors)
• Supports PCIe 4.0 x4 (For Ryzen™ 8500/ 8300 Series processor)

Gráficos

• 1x HDMI™
• Support HDMI™ 2.1, maximum resolution of 4K 60Hz
• 1x DisplayPort
• Support DisplayPort 1.4, maximum resolution of 4K 60Hz

Almacenamiento

• 2x M.2
• M.2_1 Source (From CPU) supports up to PCIe 5.0 x4 , supports 2280/2260 devices
• M.2_2 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260 devices
• 4x SATA 6G
• M2_1 slot
• Supports up to PCIe 5.0 x4 (For Ryzen™ 9000/ 7000 Series processors)
• Supports up to PCIe 4.0 x4 (For Ryzen™ 8000 Series processors)
• M2_2 slot
• Supports up to PCIe 4.0 x4 (For Ryzen™ 9000/ 8700/ 8600/ 8400/ 7000 Series processors)
• Supports up to PCIe 4.0 x2 (For Ryzen™ 8500/ 8300 Series processors)
• Supports RAID 0, RAID 1 and RAID 10 for SATA storage devices
• Supports RAID 0 and RAID 1 for M.2 NVMe storage devices

USB

• 4x USB 2.0 (Front)
• 4x USB 5Gbps Type A (Rear)
• 2x USB 5Gbps Type A (Front)
• 3x USB 10Gbps Type A (Rear)
• 1x USB 10Gbps Type C (Rear)
• 1x USB 10Gbps Type C (Front)

Audio

• Realtek® ALC897
• 7.1-Channel High Definition Audio

Conectividad y redes

• Realtek® 8125D 2.5G LAN
• Wi-Fi 6E Solution
• The Wireless module is pre-installed in the M.2 (Key-E) slot
• Supports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz* (160MHz) up to 2.4Gbps
• Supports 802.11 a/ b/ g/ n/ ac/ ax
• Supports Bluetooth® 5.3, FIPS, FISMA

Conectores Internos

• 1x Power Connector(ATX_PWR)
• 2x Power Connector(CPU_PWR)
• 1x CPU Fan
• 1x Combo Fan (Pump_Sys Fan)
• 3x System Fan
• 1x EZ Conn-header (JAF_1)
• 2x Front Panel (JFP)
• 1x Chassis Intrusion (JCI)
• 1x Front Audio (JAUD)
• 1x Tuning Controller connector(JDASH)
• 3x Addressable V2 RGB LED connector (JARGB_V2)
• 1x RGB LED connector(JRGB)
• 1x TPM pin header(Support TPM 2.0)
• 4x USB 2.0 ports
• 2x USB 5Gbps Type A ports
• 1x USB 10Gbps Type C ports

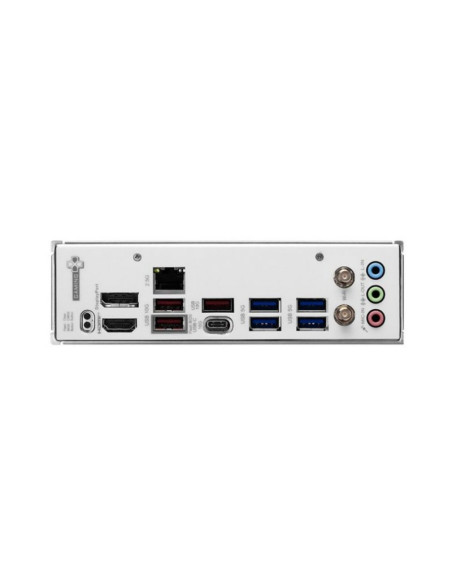

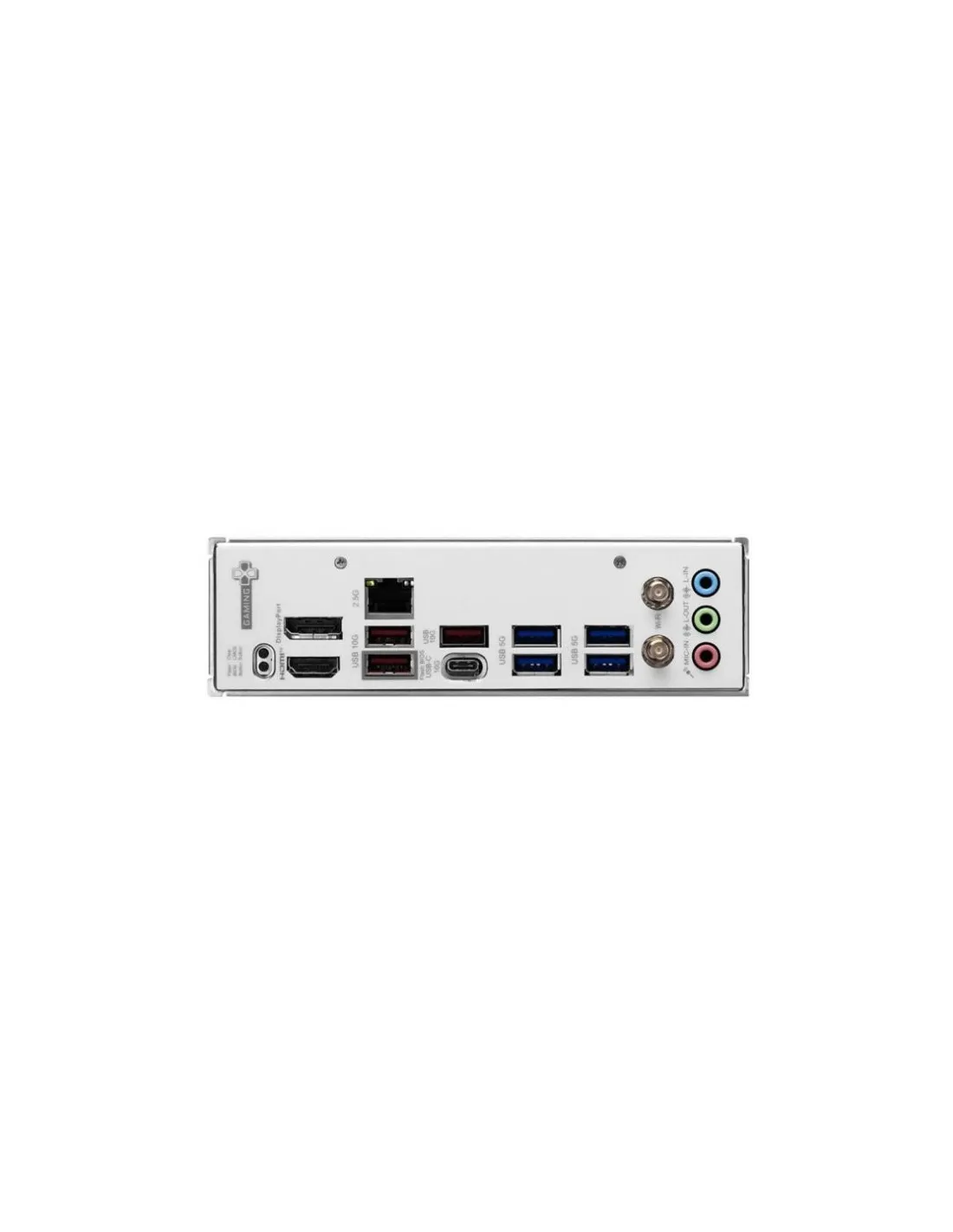

Conectores Traseros

• Clear CMOS Button
• DisplayPort 1.4
• 2.5G LAN
• USB 10Gbps (Type-A)
• Wi-Fi / Bluetooth
• HD Audio Connectors
• Flash BIOS Button
• HDMI™
• USB 10Gbps (Type-A)
• USB 10Gbps (Type-C)
• USB 5Gbps (Type-A)

Factor de forma

• mATX
