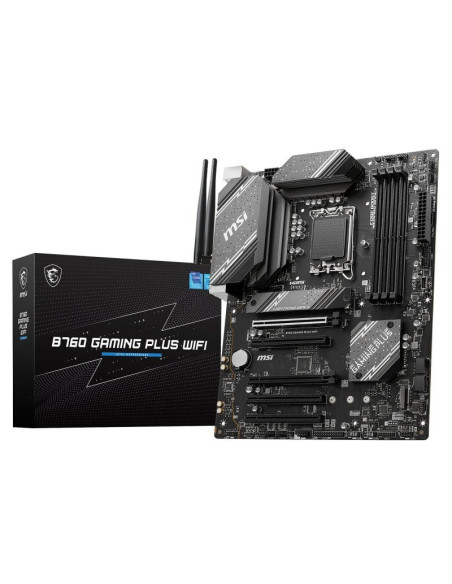

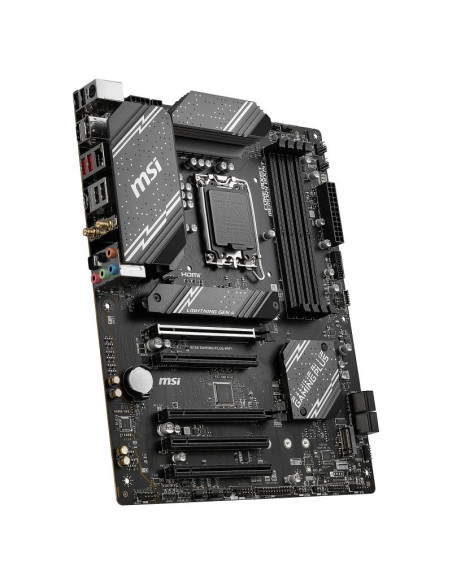

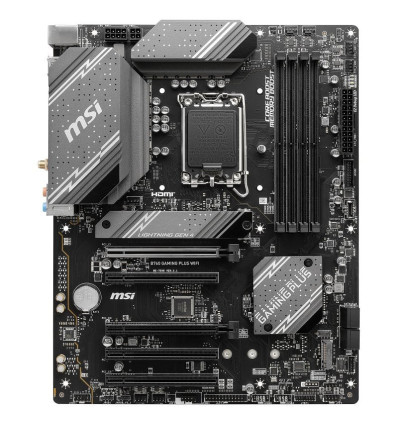

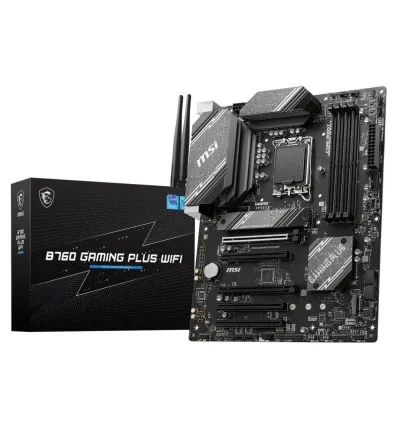

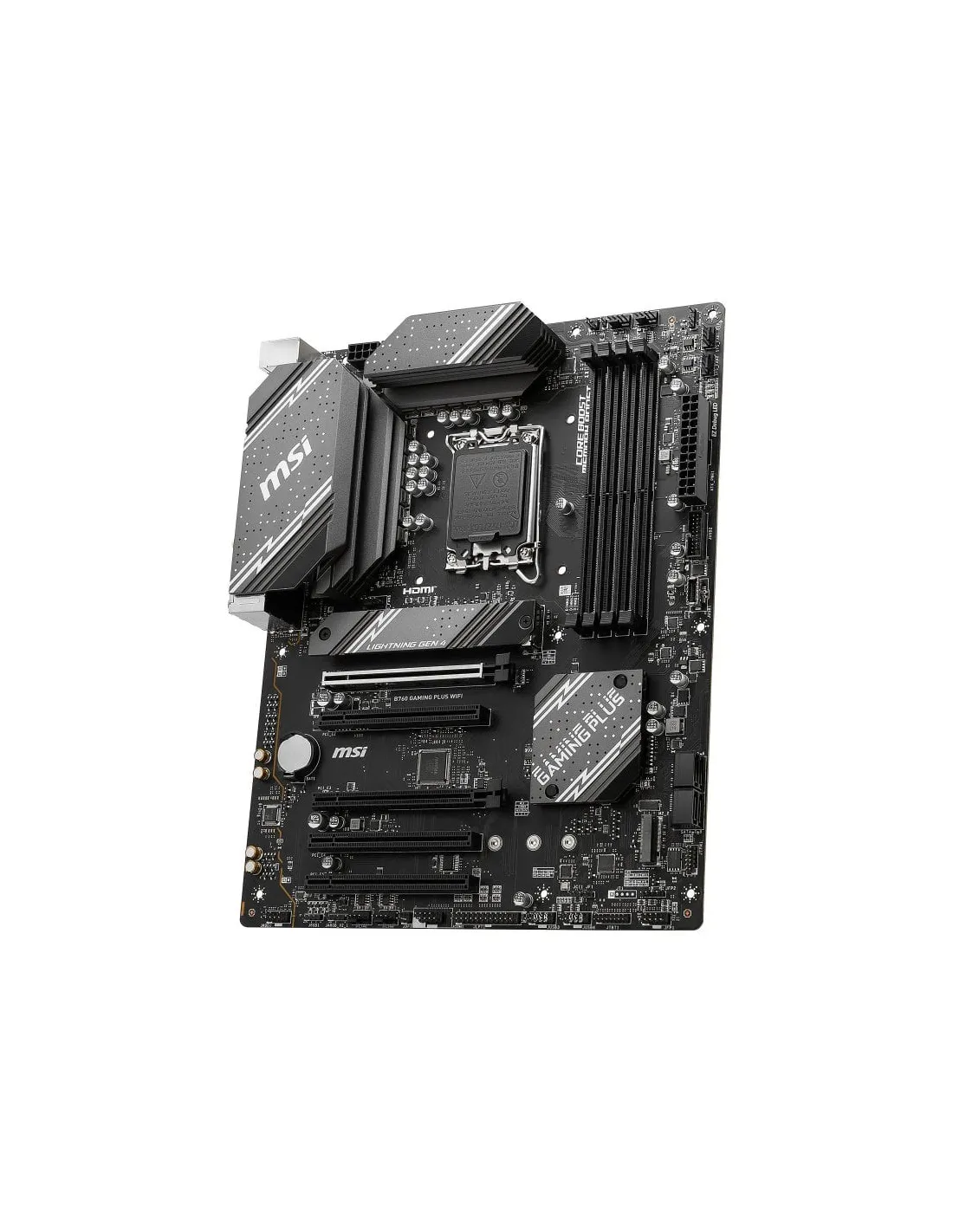

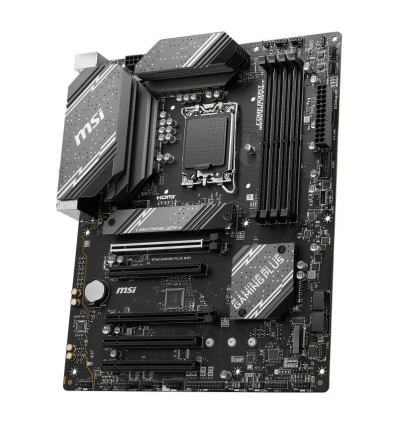

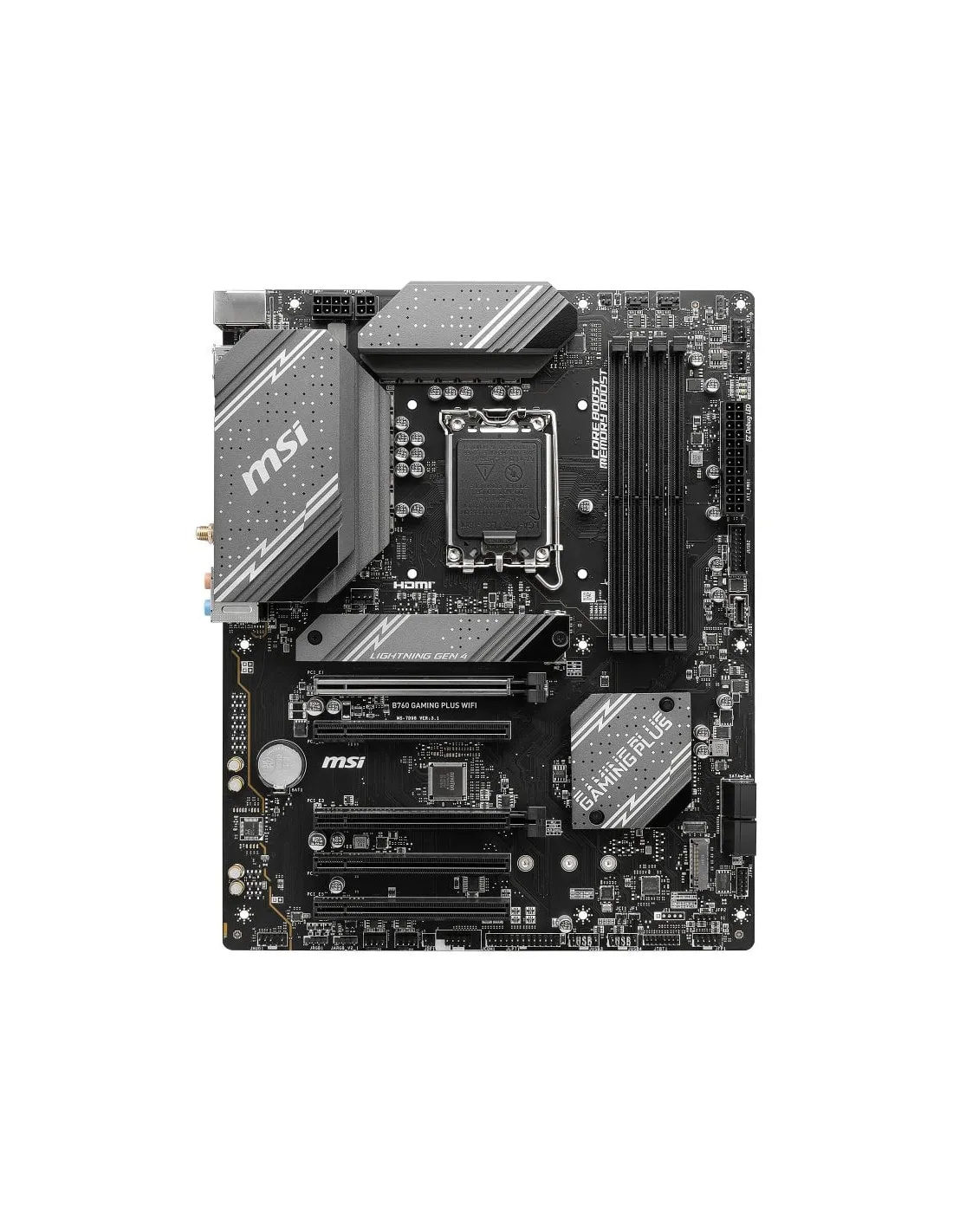

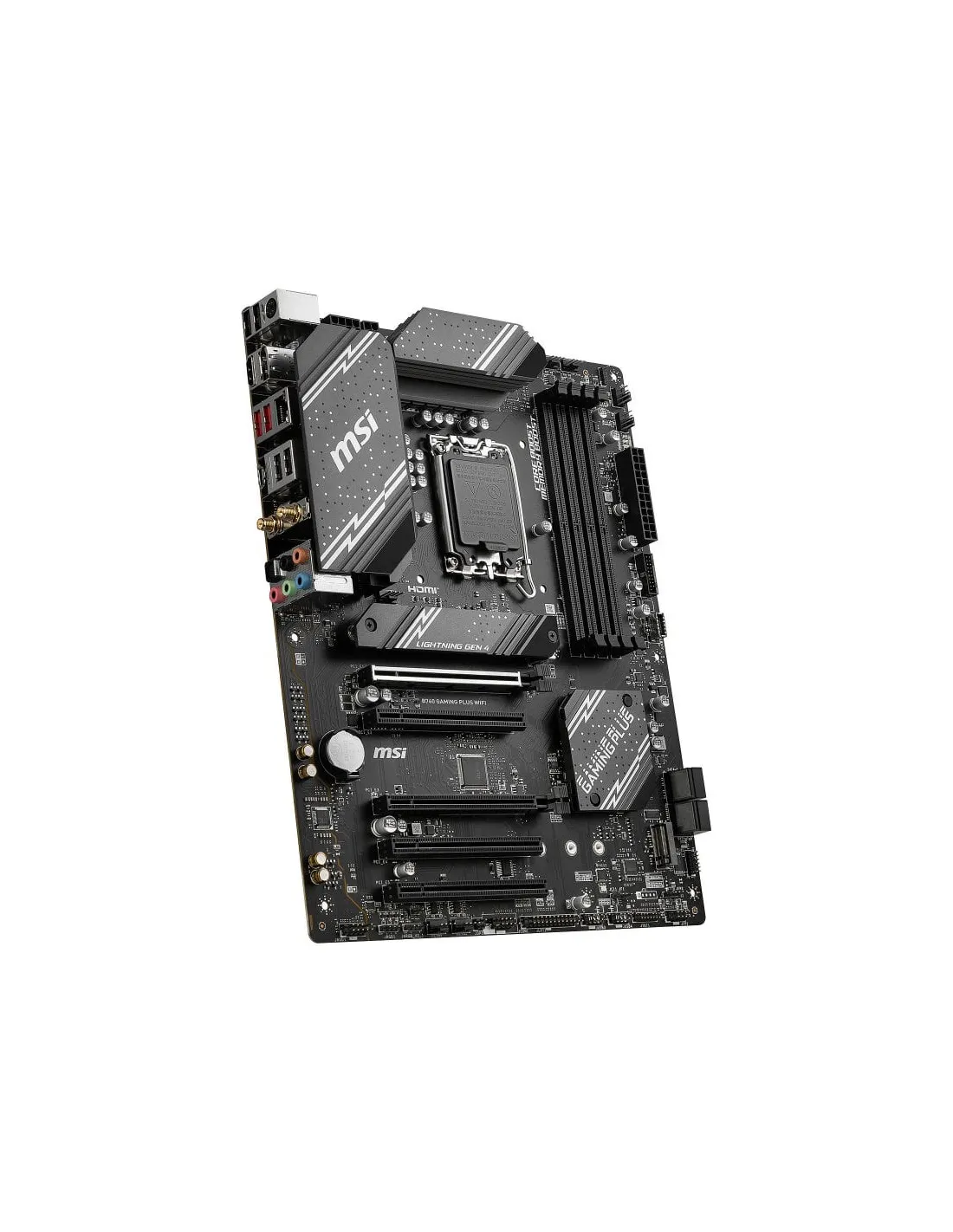

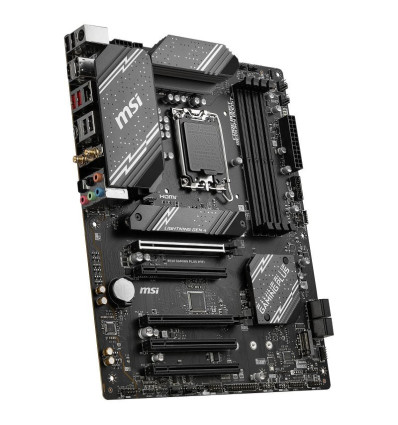

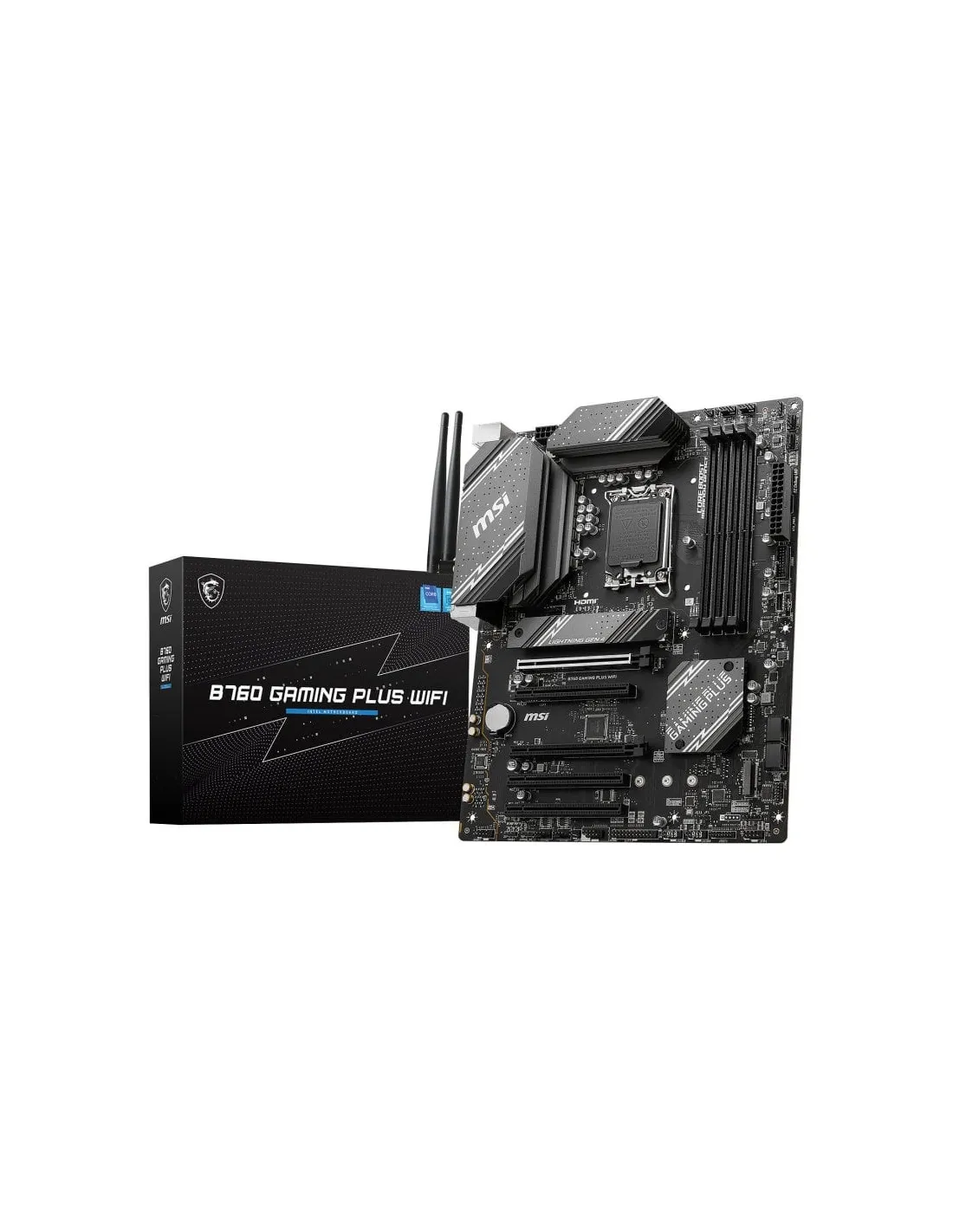

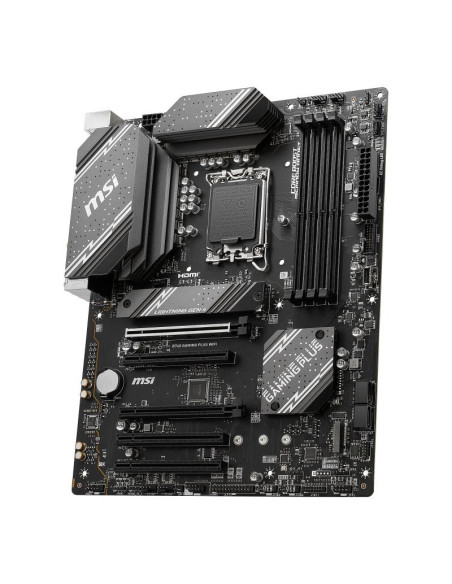

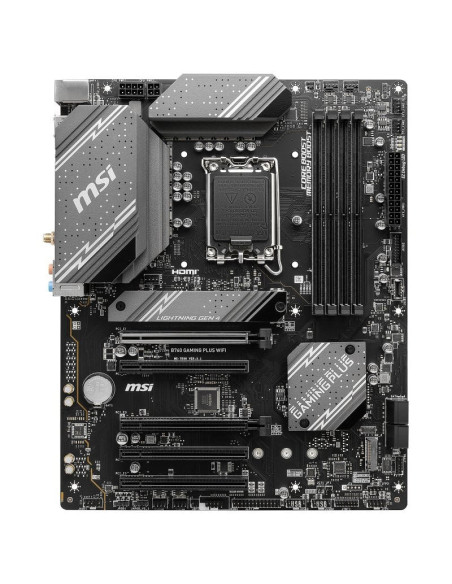

MSI B760 Gaming Plus Wifi Socket 1700

Características de la Placa base MSI B760 Gaming Plus WIFI Socket 1700

Procesador

• Supports 12th/13th Gen Intel® Core™ Processors, Pentium® Gold and Celeron® Processors

Chipset

• Intel B760

Memoria

• 4x DDR5 RAM slots, Maximum Memory Capacity 192GB
• Memory Support DDR5 6800+(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(JEDEC)/ 5400(JEDEC)/ 5200(JEDEC)/ 5000(JEDEC)/ 4800(JEDEC) MHz
• Supports Intel® XMP 3.0 OC
• Supports Dual-Controller Dual-Channel mode
• Supports non-ECC, un-buffered memory

Slots

• 5x PCI-E x16 slot
• PCI_E1 Gen PCIe 4.0 supports up to x16 (From CPU)
• PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset)
• PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset)
• PCI_E4 Gen PCIe 3.0 supports up to x1 (From Chipset)
• PCI_E5 Gen PCIe 3.0 supports up to x1 (From Chipset)

Gráficos

• 1x HDMI 2.1
• 1x DisplayPort 1.4

Almacenamiento

• 2x M.2 Gen4 x 4
• 4 x SATA 6Gb/s ports

USB

• 4x USB 2.0 (Rear)
• 4x USB 2.0 (Front)
• 2x USB 3.2 Gen1 Type A (Front)
• 1x USB 3.2 Gen1 Type C (Front)
• 2x USB 3.2 Gen2 Type A (Rear)
• 1x USB 3.2 Gen2 Type C (Rear)

Audio

• Realtek ALC897 Codec 8-Channel (7.1) HD Audio with Audio Boost

Conectividad y redes

• Realtek RTL8125BG 2.5Gbps LAN
• Intel® Wi-Fi 6E
• Supports Bluetooth® 5.3

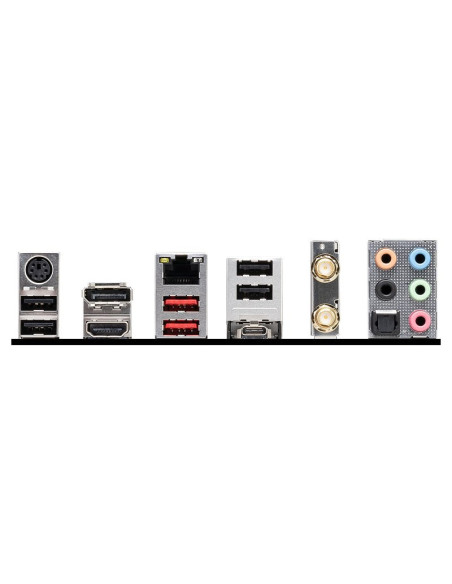

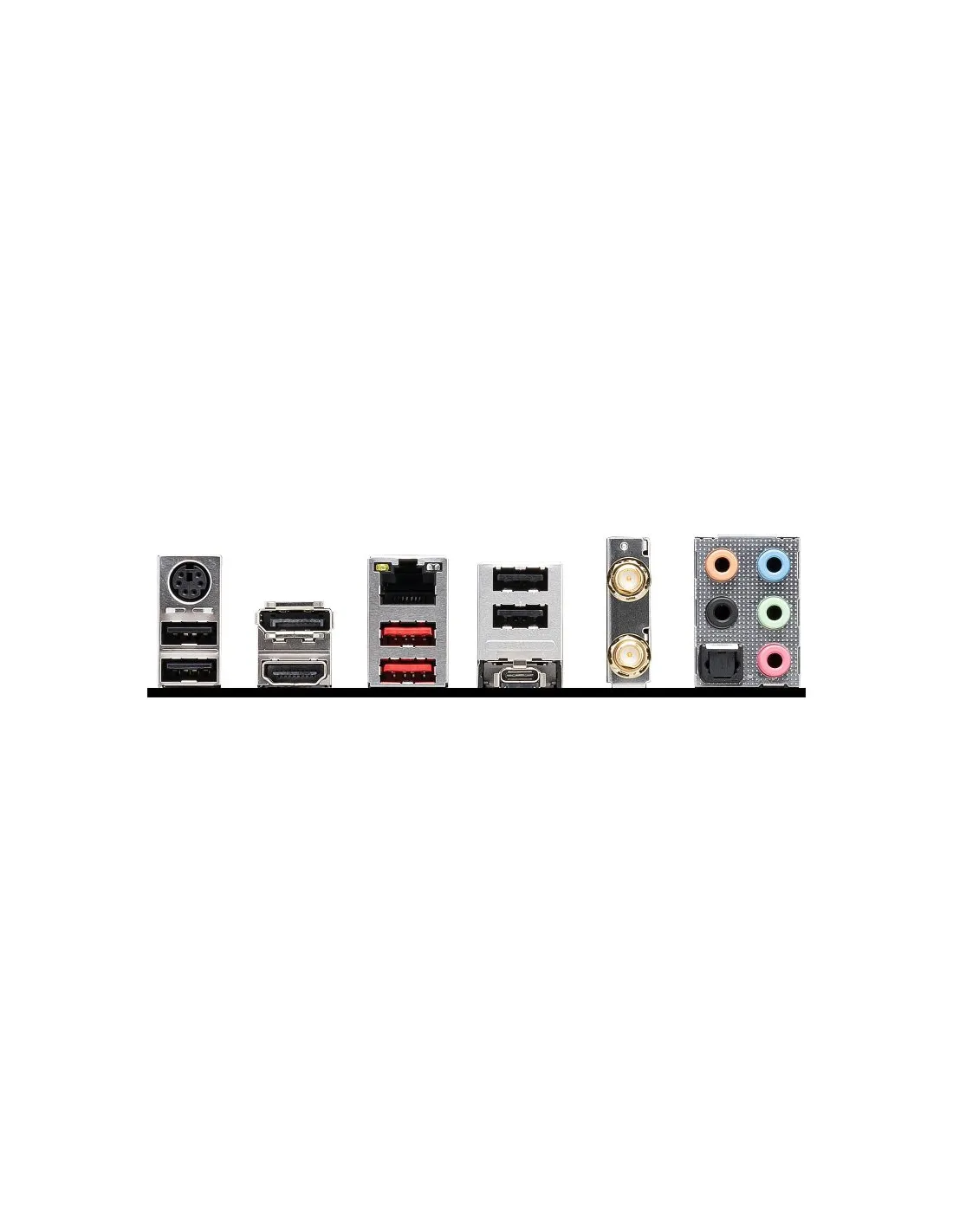

Conectores Traseros

• Keyboard / Mouse
• DisplayPort
• 2.5G LAN
• 4 x USB 2.0
• Wi-Fi / Bluetooth
• Audio Connectors
• HDMI
• 2 x USB 3.2 Gen 2 10Gbps (Type-A)
• 1 x USB 3.2 Gen 2 10Gbps (Type-C)
• S/PDIF-OUT

Factor de forma

• ATX (243.84 x304.8mm)
