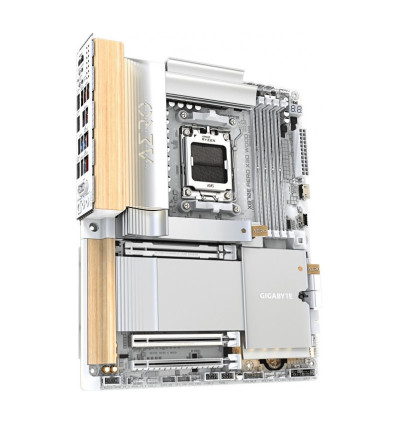

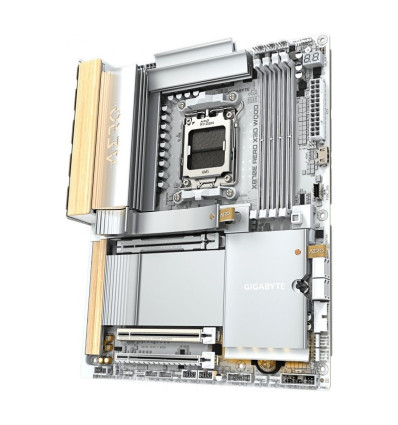

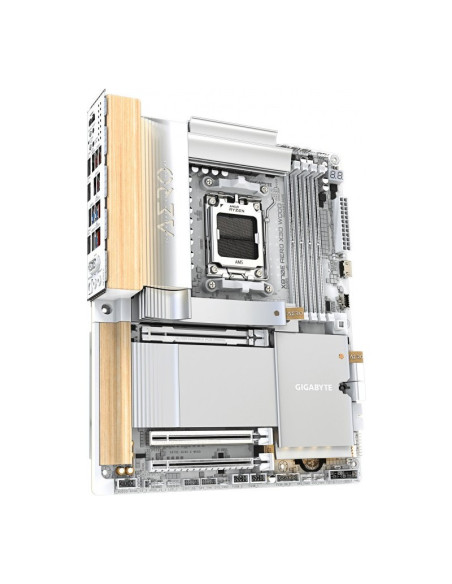

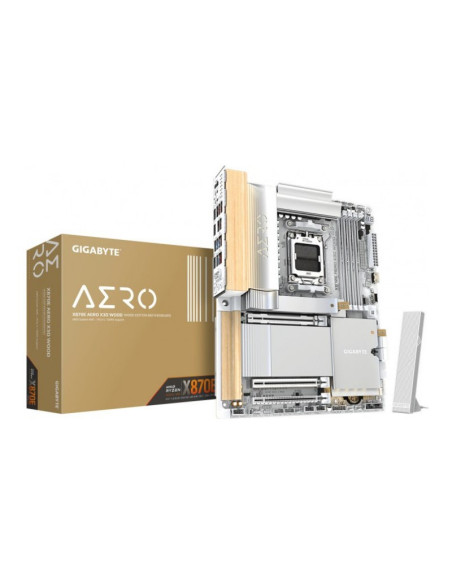

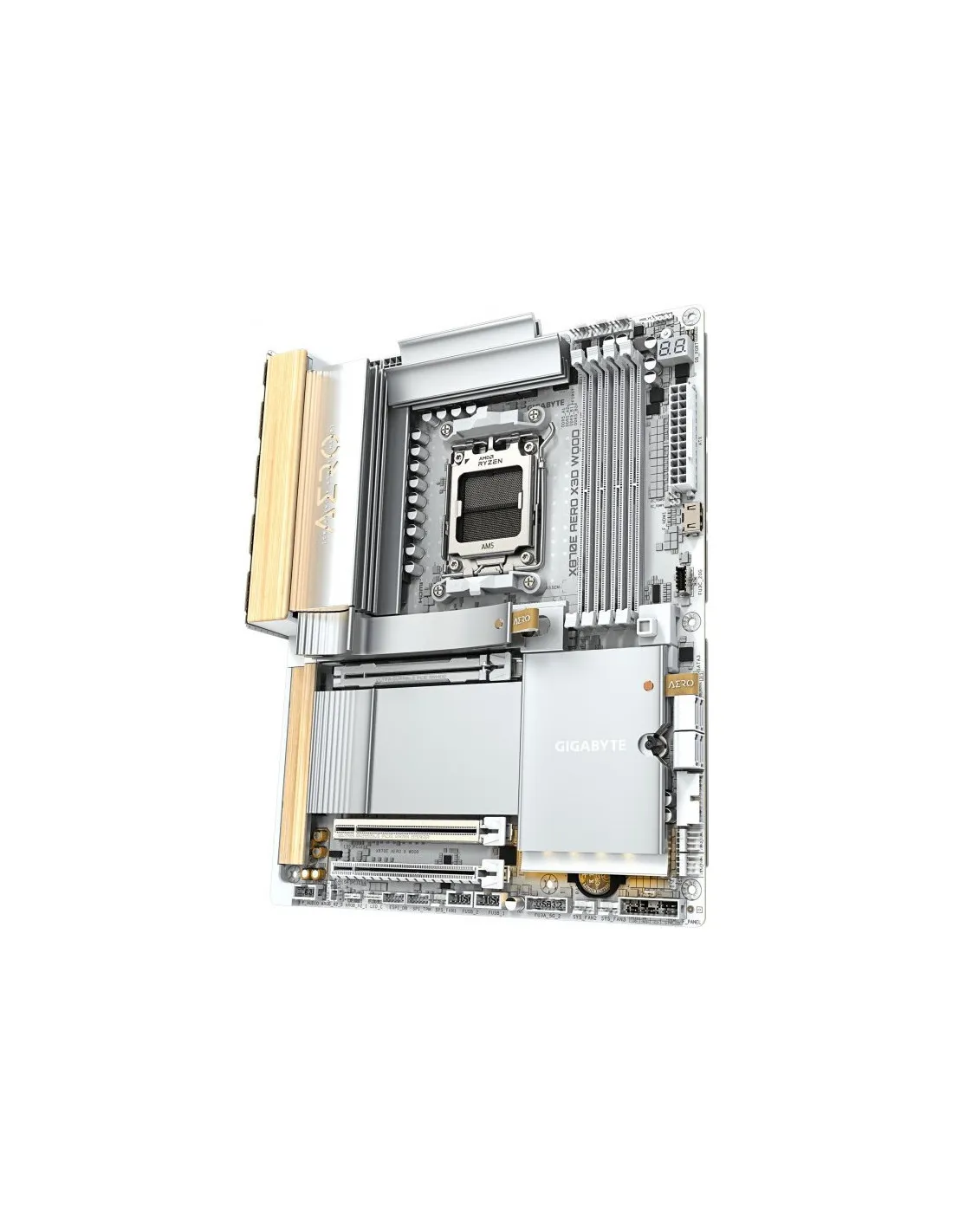

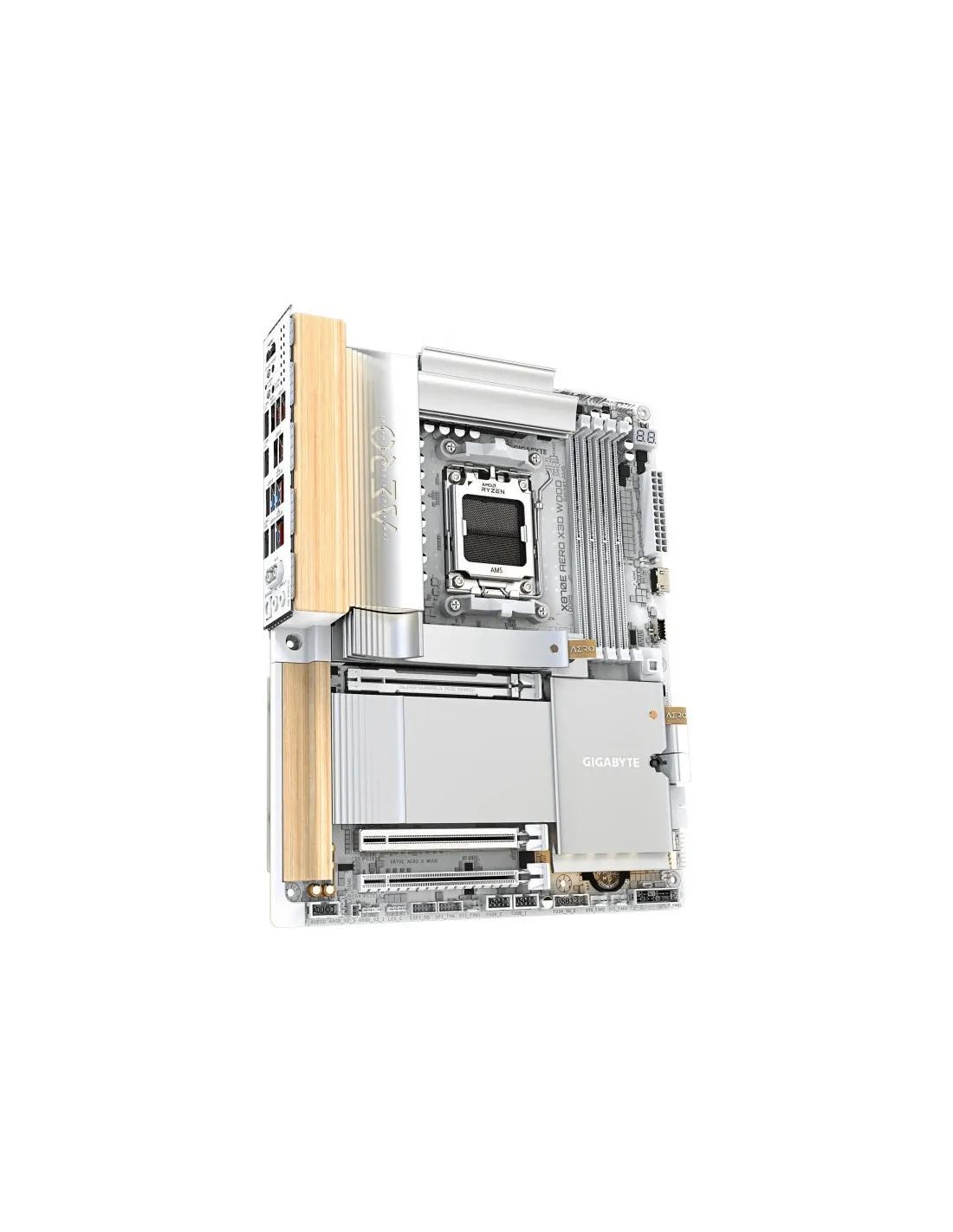

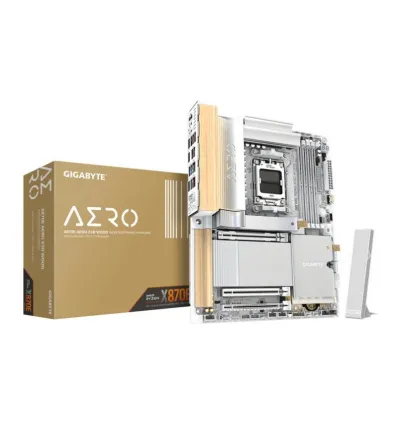

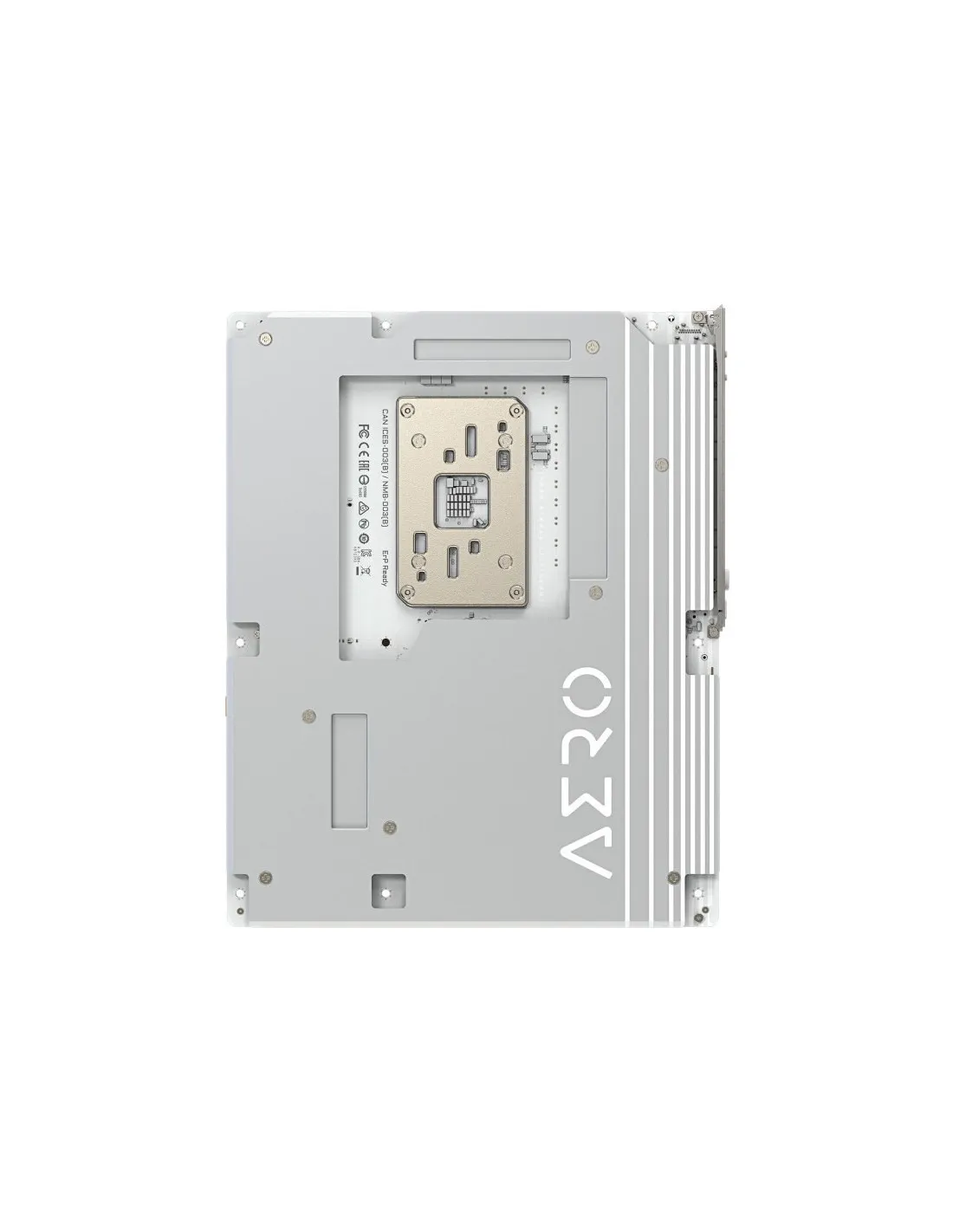

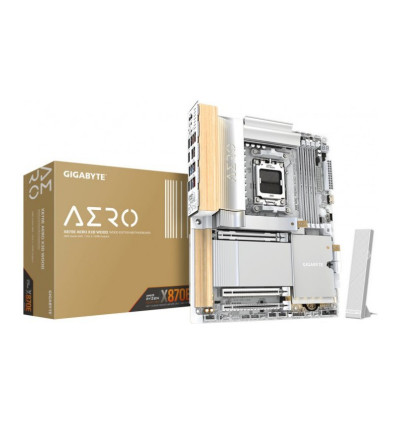

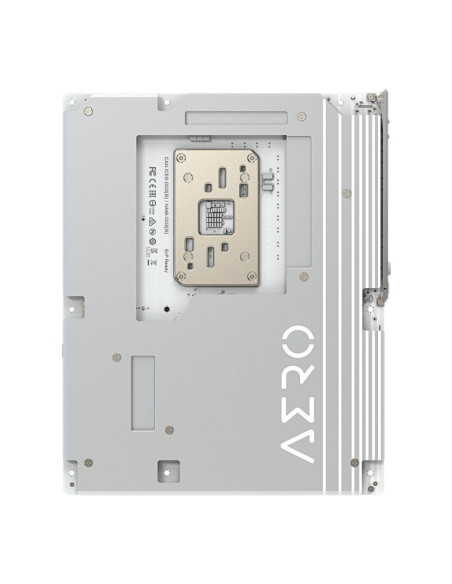

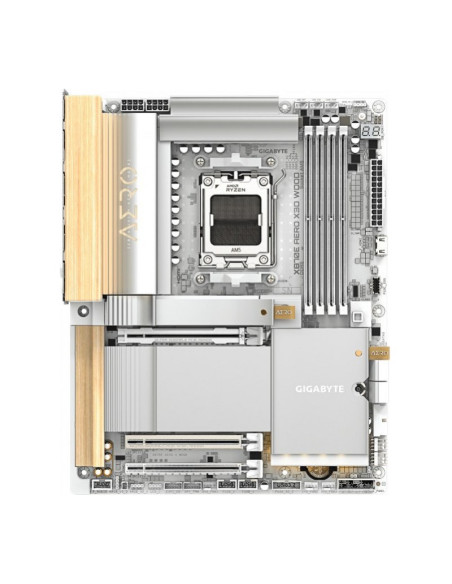

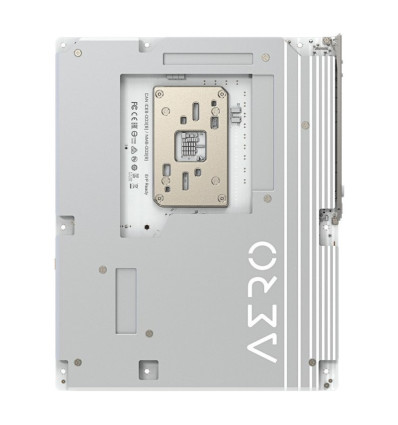

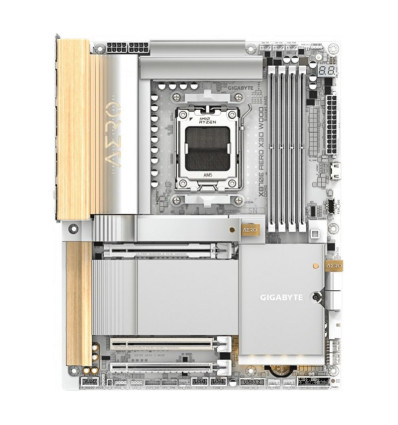

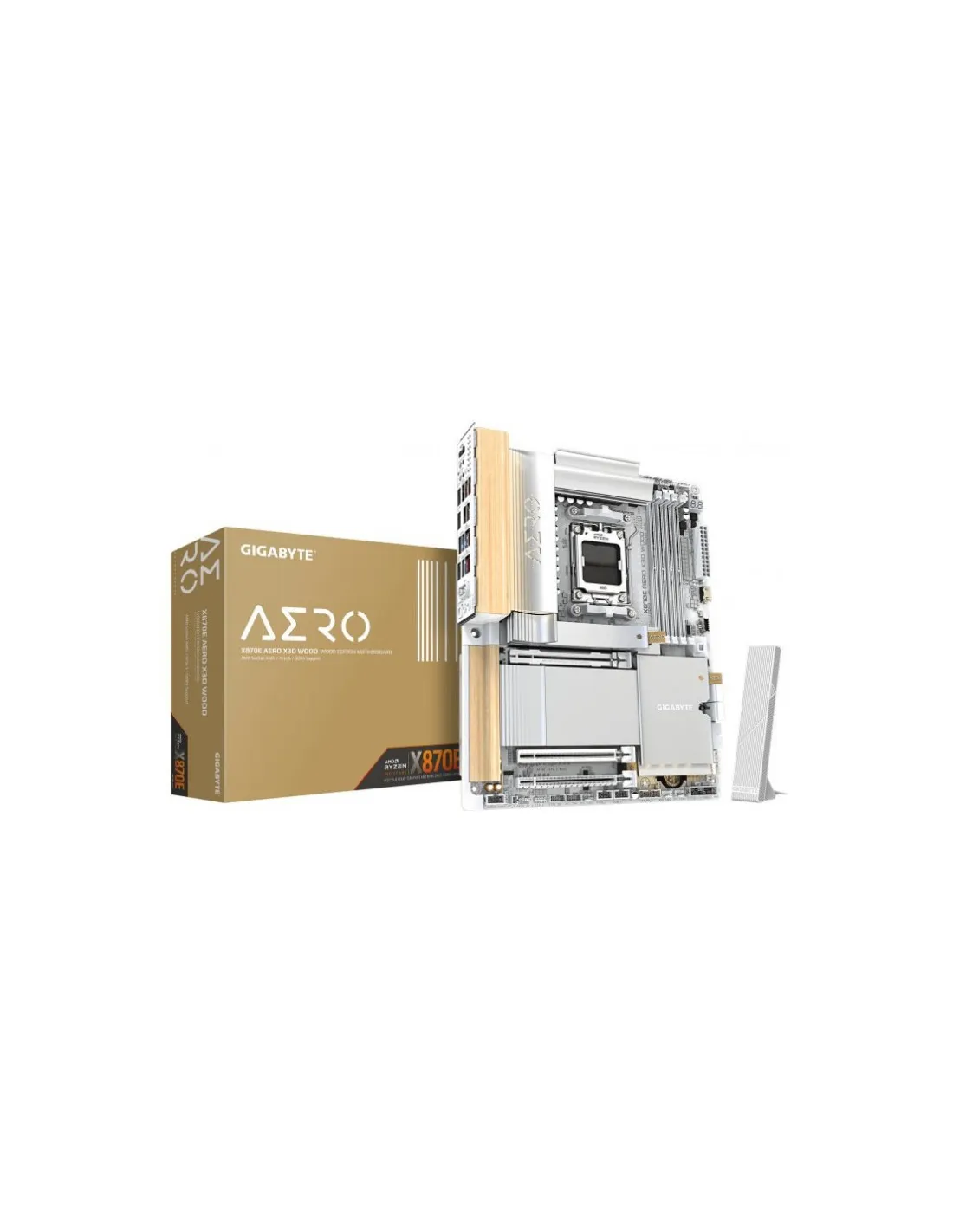

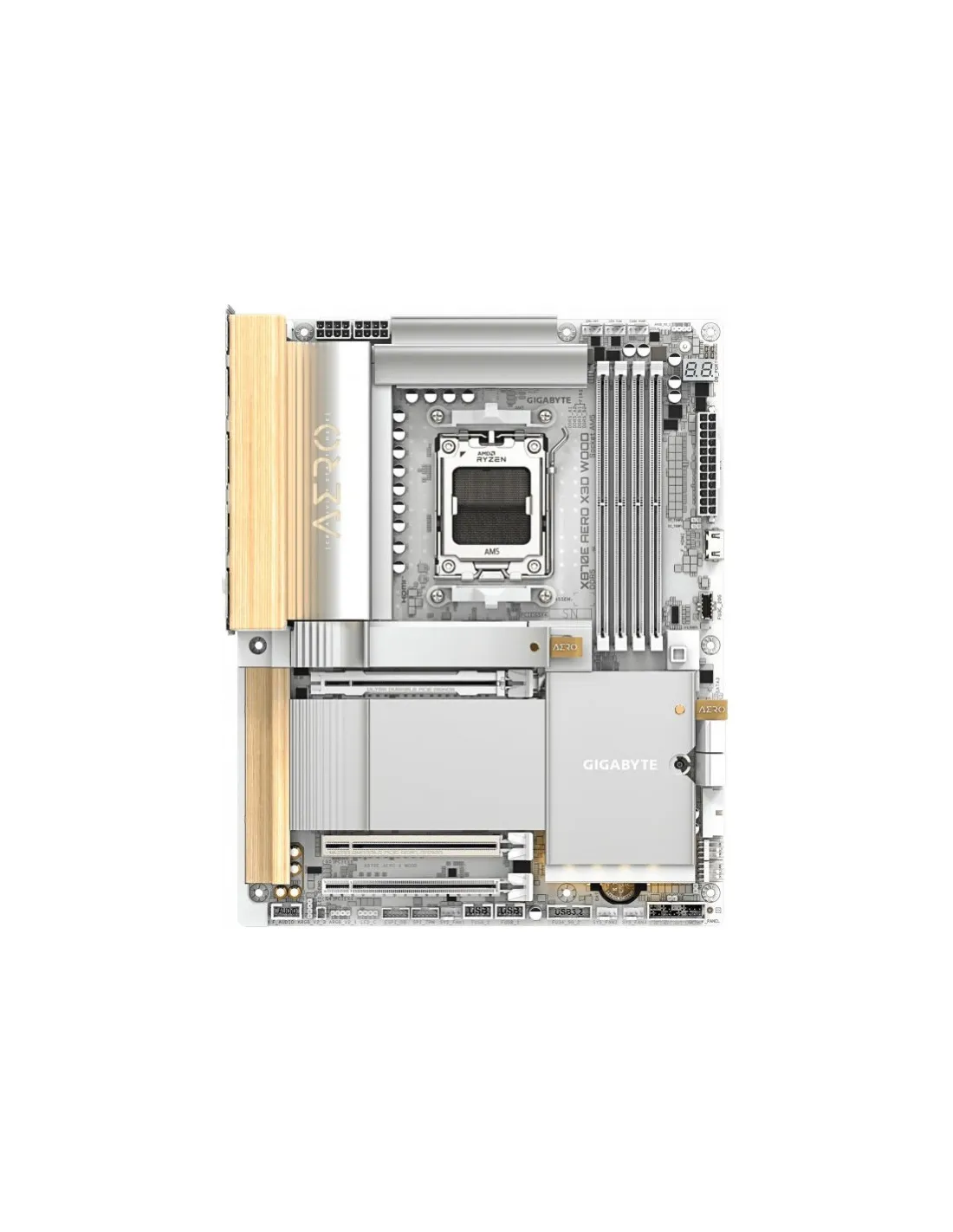

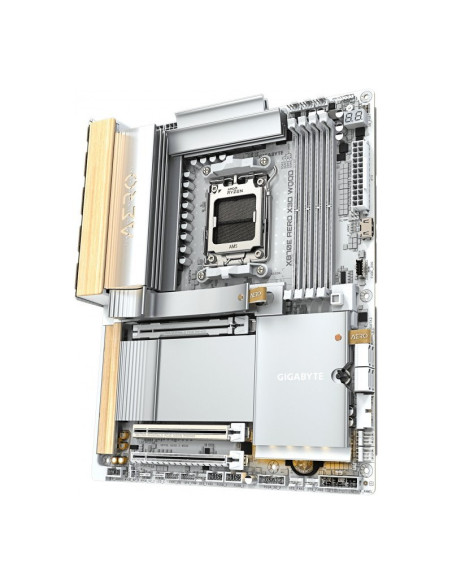

Gigabyte X870E AERO X3D Wood Socket AM5 ATX

Características de la placa base Gigabyte X870E AERO X3D Wood Socket AM5 ATX

Procesador

• AMD Socket AM5
• AMD Ryzen™ 9000 / 8000 / 7000 Series Processors

Chipset

• AMD X870E

Memoria

• Support for DDR5 9000(O.C) /8800(O.C) /8600(O.C) /8400(O.C) / 8000(O.C) / 7800(O.C) / 7600(O.C) / 7800(O.C) / 7600(O.C.) / 7200(O.C.) / 7000(O.C.) / 6800(O.C.) / 6600(O.C.) / 6400(O.C) / 6200(O.C) / 6000(O.C) / 5600(O.C) / 5200 / 4800 / 4400 MT/s memory modules.
• Support for DDR5 5200/4800 MT/s memory modules
• 4 x DDR5 DIMM sockets supporting up to 256 GB (64 GB single DIMM capacity) of system memory
• Dual channel memory architecture
• Support for non-ECC Un-buffered DIMM memory modules
• Support for AMD EXtended Profiles for Overclocking (AMD EXPO™) and Extreme Memory Profile (XMP) memory modules

Slots

• 1 x PCI Express x16 slot (PCIEX16), integrated in the CPU
• 1 x PCI Express x16 slot (PCIEX8), integrated in the CPU
• 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x4 (PCIEX4)

Gráficos

• 2 x USB4® USB Type-C® ports, supporting USB4 and DisplayPort video outputs and a maximum resolution of 3840x2160@240 Hz
• 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz
• 1 x front HDMI port, supporting a maximum resolution of 1920x1080@30 Hz

Almacenamiento

• 1 x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 2580/2280 SSDs
• 1 x M.2 connector (M2B_CPU), integrated in the CPU, supporting Socket 3, M key, type 22110/2280 SSDs
• 2 x M.2 connectors (M2C_SB, M2D_SB), integrated in the Chipset, supporting Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSDs
• 4 x SATA 6Gb/s connectors
• RAID 0, RAID 1, RAID 5, and RAID 10 support for NVMe SSD storage devices
• RAID 5 is only available on AMD Ryzen™ 9000 Series Processors.
• RAID 0, RAID 1, and RAID 10 support for SATA storage devices

USB

• 2 x USB4® USB Type-C® ports on the back panel
• 1 x USB 3.2 Gen 2 Type-A port (red) on the back panel
• 4 x USB 3.2 Gen 1 ports available through the internal USB headers
• 2 x USB Type-C® ports, with USB 3.2 Gen 2x2 support (1 port on the back panel, 1 port available through the internal USB header)
• 4 x USB 3.2 Gen 2 Type-A ports (red) on the back panel
• 3 x USB 3.2 Gen 1 ports on the back panel
• 4 x USB 2.0/1.1 ports available through the internal USB headers

Audio

• Realtek® ALC1220 CODEC
• High Definition Audio
• 2/4/5.1/7.1-channel
• Support for S/PDIF Out

Conectividad y redes

• 2 x Realtek® 5GbE LAN chips (5 Gbps/2.5 Gbps/1 Gbps/100 Mbps)
• MediaTek Wi-Fi 7 MT7927, RZ738
• 802.11a, b, g, n, ac, ax, be, supporting 2.4/5/6 GHz carrier frequency bands
• BLUETOOTH 5.4
• Support for 11be 320MHz wireless standard

Conectores Internos

• 1 x 24-pin ATX main power connector
• 2 x 8-pin ATX 12V power connectors
• 1 x CPU fan header
• 1 x CPU fan/water cooling pump header
• 4 x system fan headers
• 2 x system fan/water cooling pump headers
• 3 x addressable RGB Gen2 LED strip headers
• 1 x RGB LED strip header
• 4 x M.2 Socket 3 connectors
• 4 x SATA 6Gb/s connectors
• 1 x front panel header
• 1 x front panel audio header
• 1 x USB Type-C® header, with USB 3.2 Gen 2x2 support
• 2 x USB 3.2 Gen 1 headers
• 2 x USB 2.0/1.1 headers
• 1 x noise detection header
• 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI V2 module only)
• 1 x HDMI port (Note)
• 1 x reset jumper
• 1 x Clear CMOS jumper
• 2 x temperature sensor headers

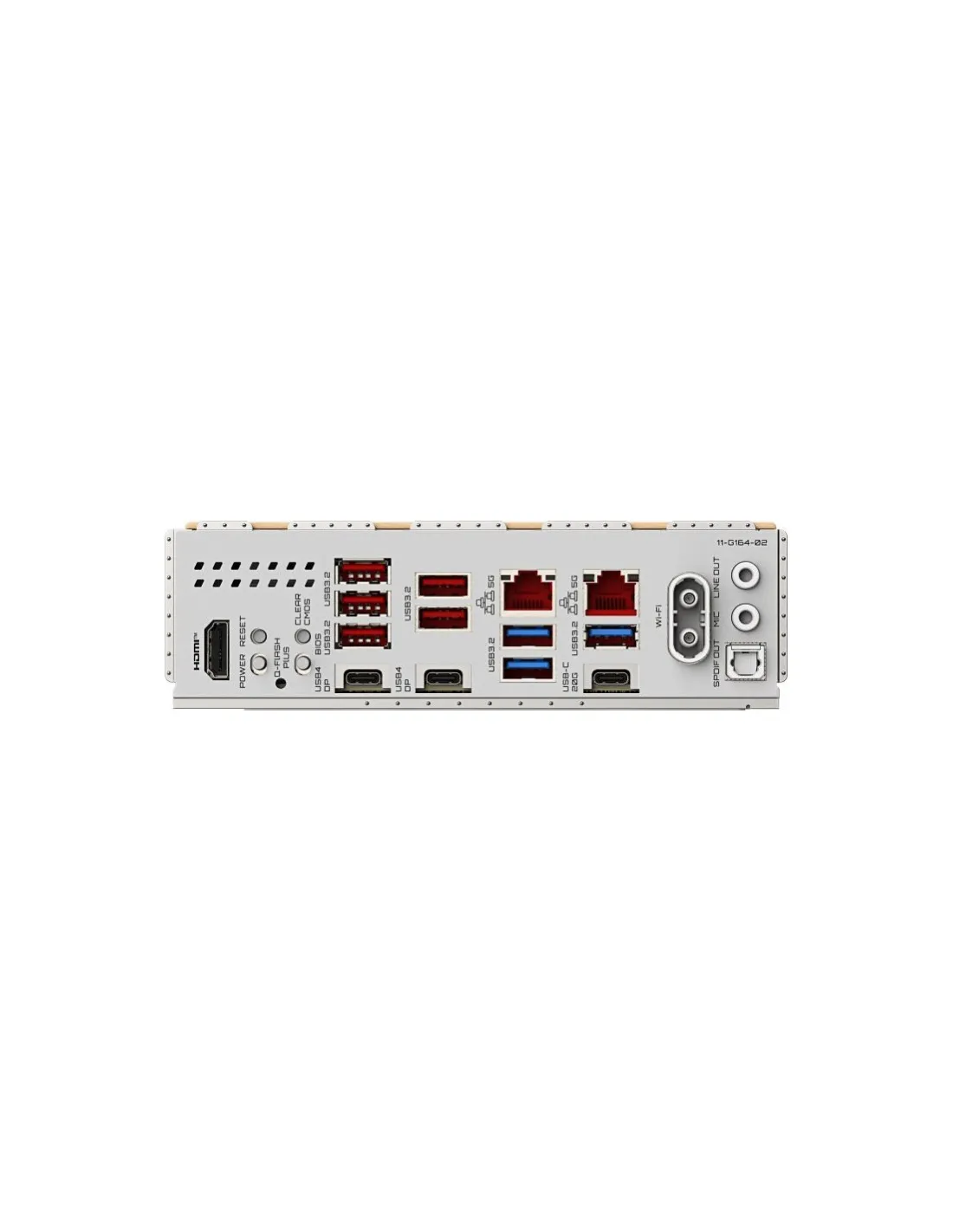

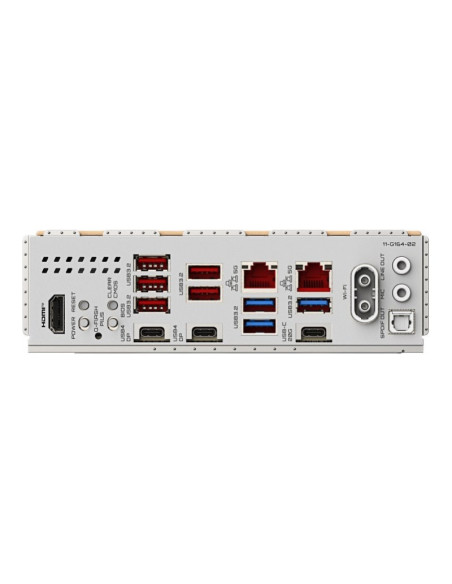

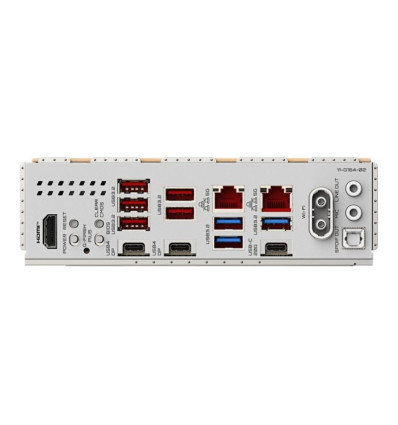

Conectores Traseros

• 1 x Q-Flash Plus button
• 1 x Clear CMOS button
• 1 x power button
• 1 x reset button
• 1 x HDMI port (Note)
• 2 x USB4® USB Type-C® ports (DisplayPorts (Note))
• 1 x USB Type-C® port, with USB 3.2 Gen 2x2 support
• 5 x USB 3.2 Gen 2 Type-A ports (red)
• 3 x USB 3.2 Gen 1 ports
• 2 x RJ-45 ports
• 2 x antenna connectors (2T2R)
• 2 x audio jacks
• 1 x optical S/PDIF Out connector

Factor de forma

• ATX (30.5 x 24.4cm)
