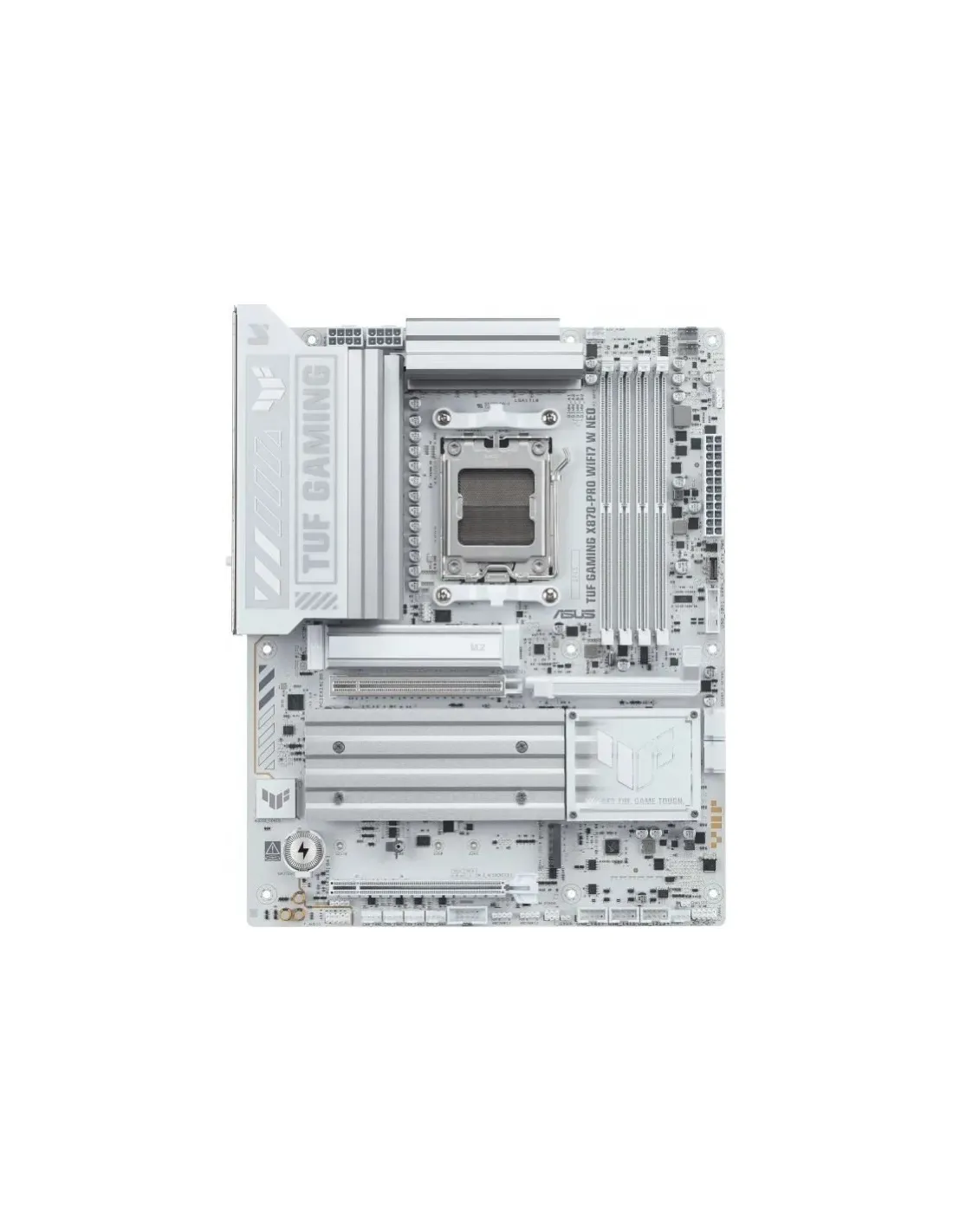

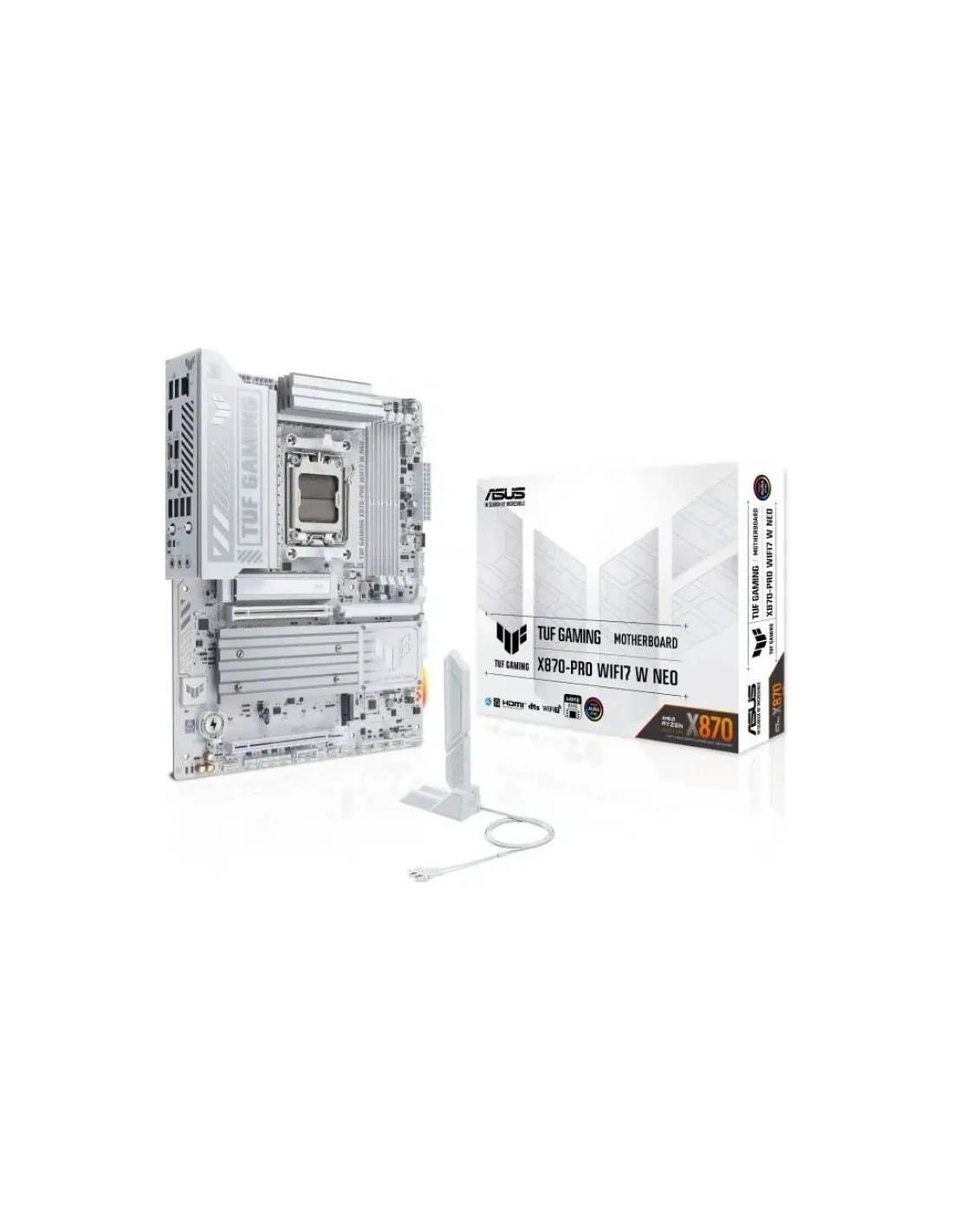

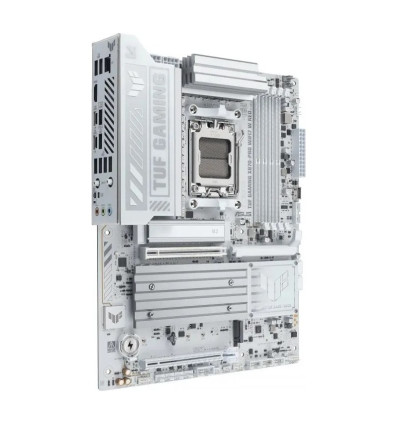

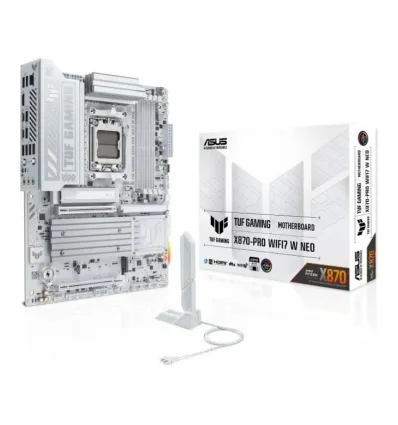

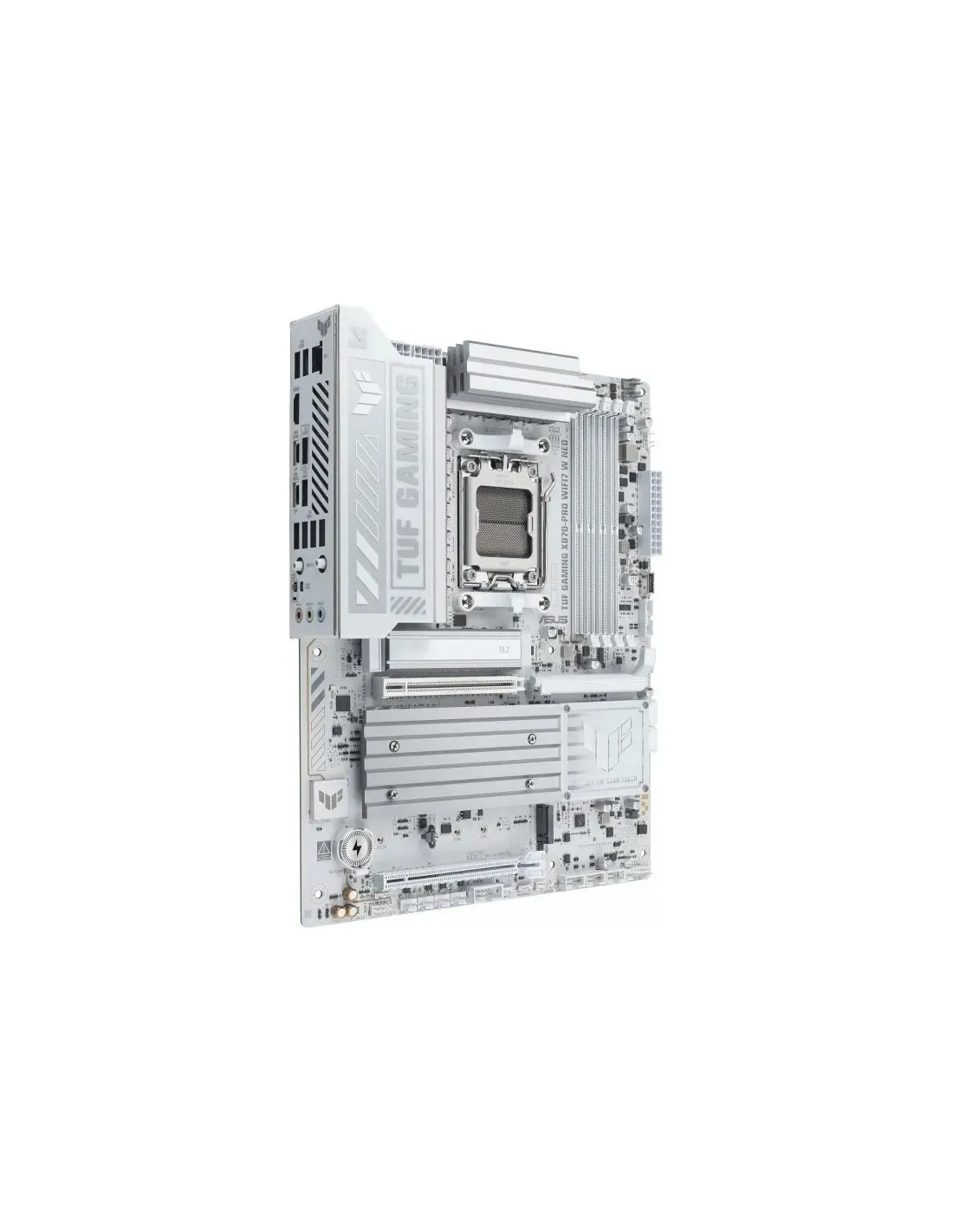

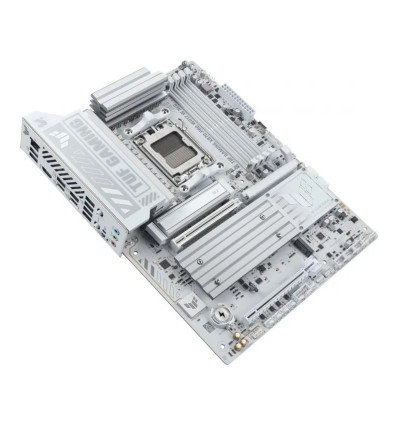

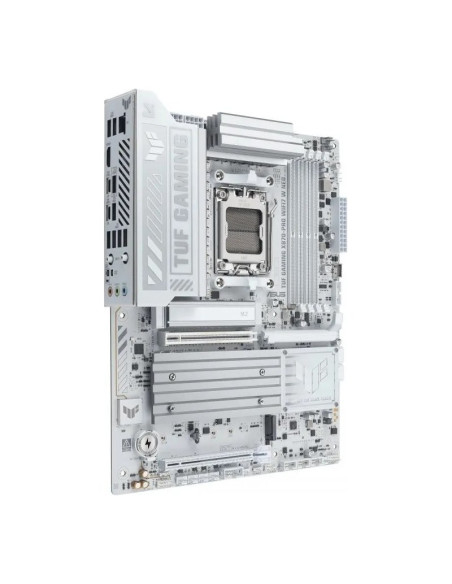

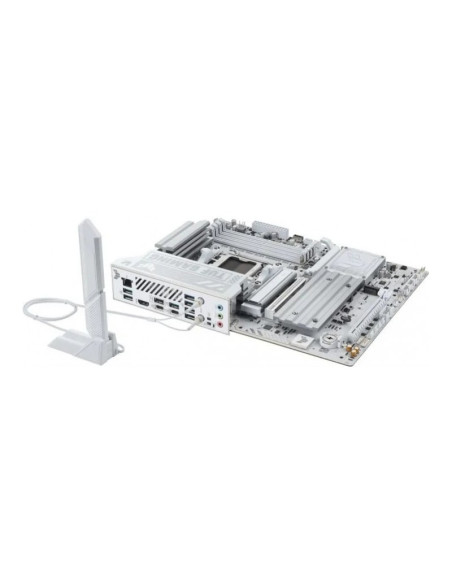

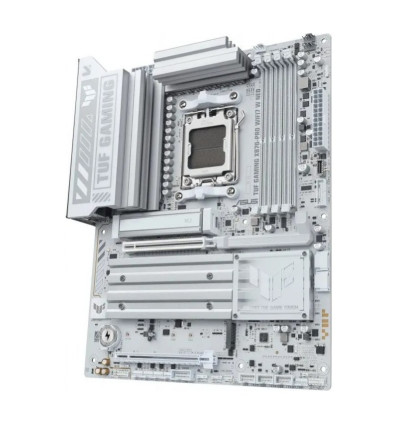

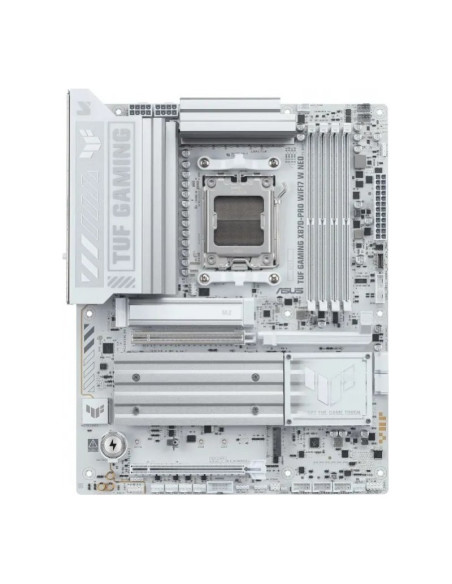

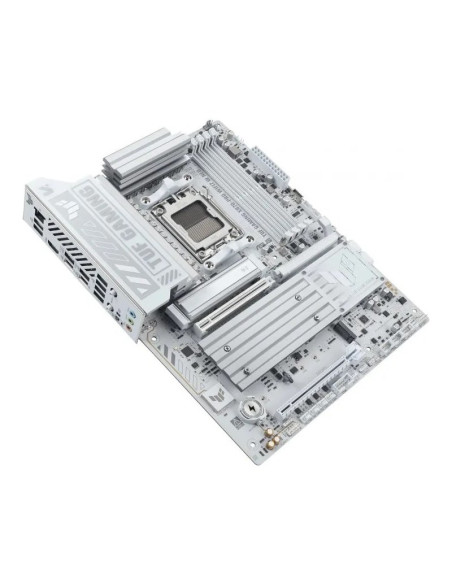

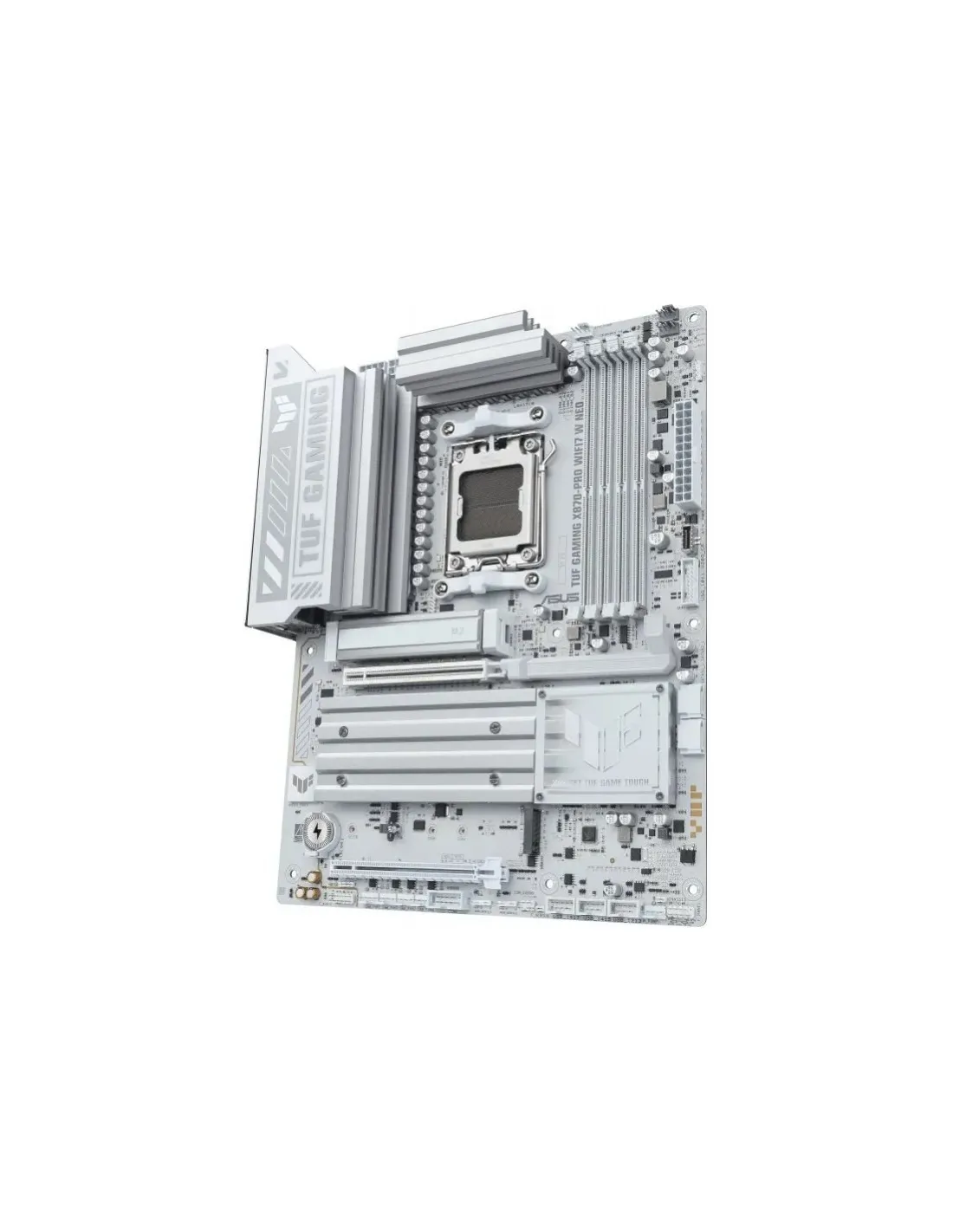

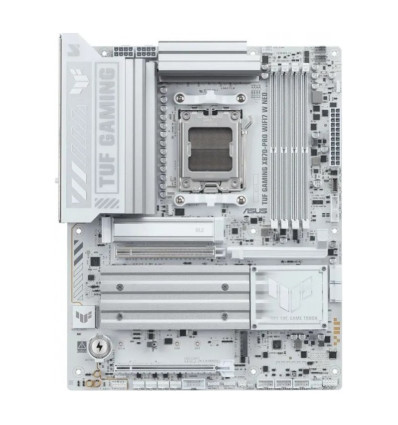

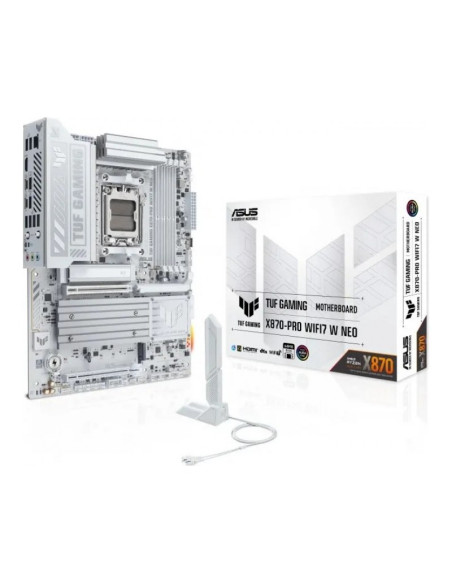

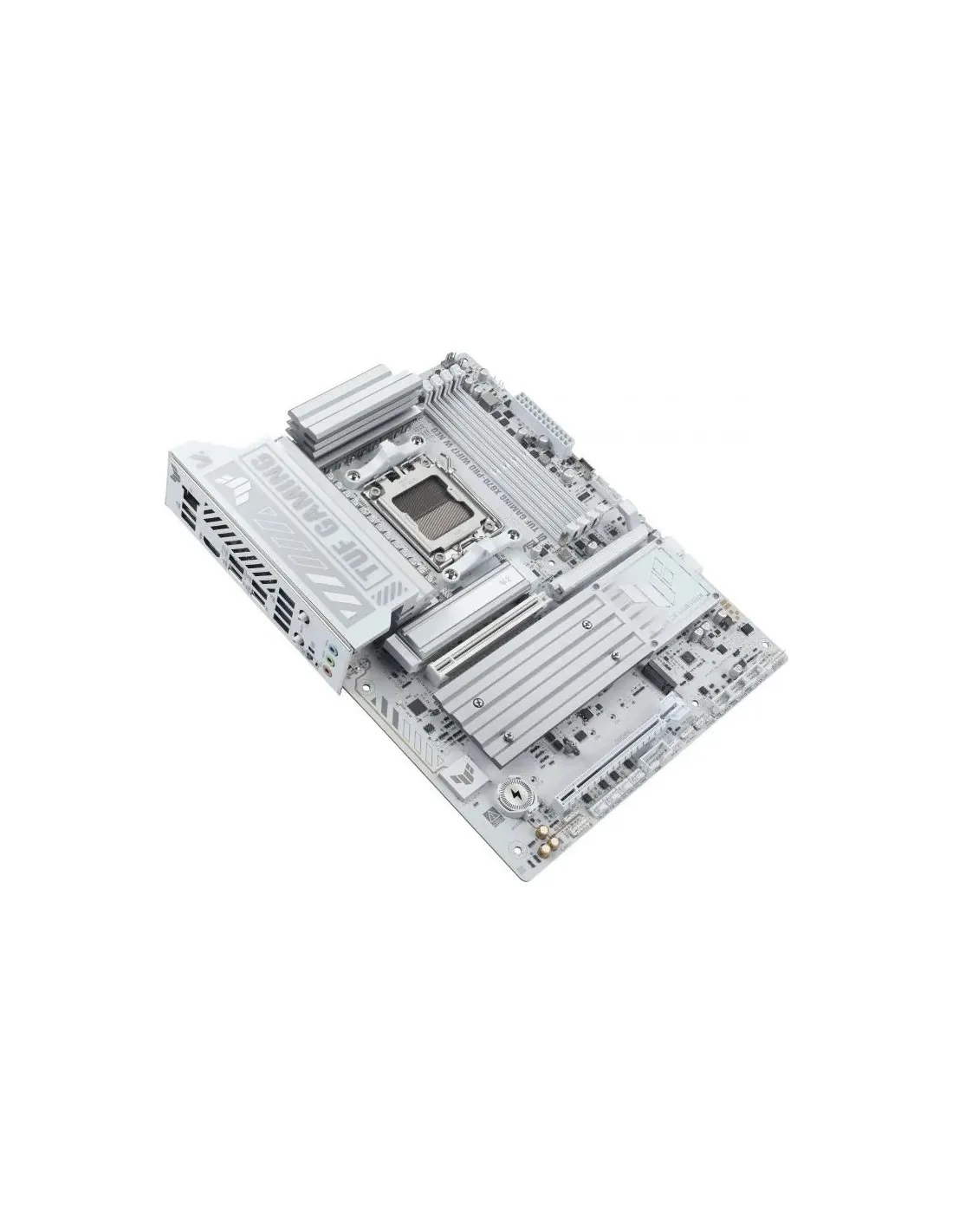

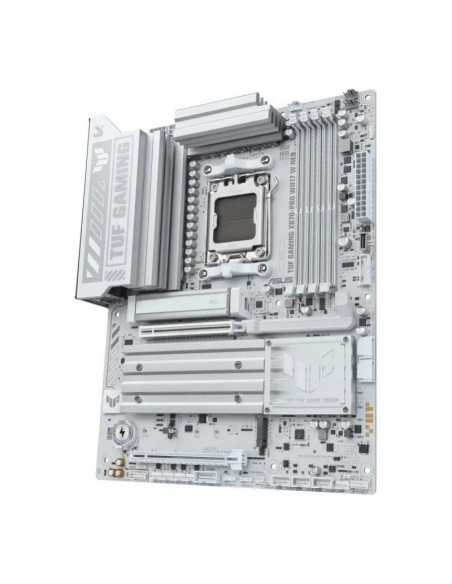

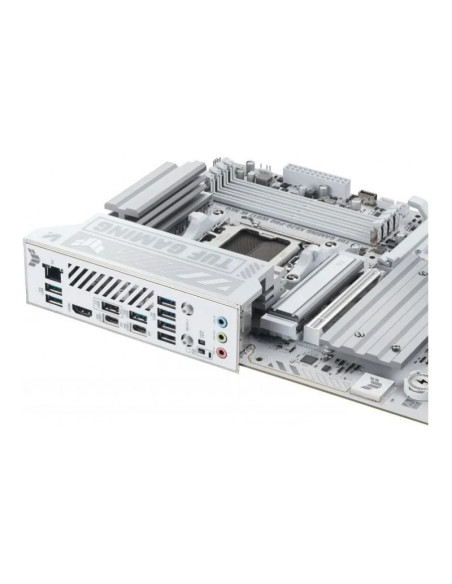

Asus TUF Gaming X870-Pro WiFi7 W Neo Socket AM5 ATX

Características de la placa base Asus TUF Gaming X870-Pro WiFi7 W Neo

Procesador

• AMD Socket AM5 for AMD Ryzen™ 9000 & 8000 & 7000 Series Desktop Processors

Chipset

• AMD X870

Memoria

• 4 x DIMM slots, max. 256GB, DDR5
• Supports up to
• 8600+MT/s(OC)*/8200+MT/s(OC)** with Ryzen™ 9000 Series Processors,
• 9600+MT/s(OC)*/9000+MT/s(OC)** with Ryzen™ 8000 Series Processors,
• 8000+MT/s(OC)*/8000+MT/s(OC)** with Ryzen™ 7000 Series Processors,
• ECC and Non-ECC Un-buffered DIMM***
• Dual channel memory architecture
• Supports AMD Extended Profiles for Overclocking (EXPO™)
• Supports DIMM Fit and DIMM Fit Pro
• NitroPath DRAM Technology
• ASUS Enhanced Memory Profile (AEMP)

Slots

• 1 x PCIe 5.0 x16 slot (supports x16 mode)
• 1 x PCIe 4.0 x16 slot (supports x8/x4 mode)**
• 1 x PCIe 4.0 x16 slot (supports x4 mode)***

Gráficos

• 1 x HDMI™ port**
• 2 x USB4® (40Gbps) ports support USB Type-C® display outputs***

Almacenamiento

• Total supports 4 x M.2 slots and 2 x SATA 6Gb/s ports
• M.2_1 slot (Key M), type 2280 (supports PCIe 5.0 x4 mode)
• M.2_2 slot (Key M), type 2280 (supports PCIe 5.0 x4 mode)
• M.2_3 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)
• M.2_4 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4)***
• 2 x SATA 6Gb/s ports

USB

• 2 x USB4® (40Gbps) ports (2 x USB Type-C®)*
• 3 x USB 10Gbps ports (3 x Type-A)
• 4 x USB 5Gbps ports (4 x Type-A)
• 1 x USB 2.0 port (1 x Type-A)
• 1 x USB 20Gbps connector (supports USB Type-C® with up to 30W PD/PPS Fast-charge )**
• 1 x USB 5Gbps header supports 2 additional USB 5Gbps ports
• 3 x USB 2.0 headers support 6 additional USB 2.0 ports

Audio

• Realtek® ALC1220P 7.1 Surround Sound High Definition Audio CODEC*
• Impedance sense for front and rear headphone outputs
• Internal audio Amplifier to enhance the highest quality sound for headphone and speakers
• Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
• High quality 120 dB SNR stereo playback output and 113 dB SNR recording input (Line-in)
• Supports up to 32-Bit/192 kHz playback**
• Audio Shielding
• Premium audio capacitors
• Dedicated audio PCB layers
• Audio cover
• Unique de-pop circuit

Conectividad y redes

• 1 x Realtek® 5Gb Ethernet
• TUF LANGuard
• Wi-Fi 7 (Realtek® RTL8922AE)
• 2x2 Wi-Fi 7* (802.11be)
• Supports 2.4/5/6GHz frequency band**
• Supports Wi-Fi 7 160MHz bandwidth
• Bluetooth® v5.4 (suppport LE Audio)***
• * Wi-Fi features may vary depending on the operating system.
• For Windows 11, Wi-Fi 7 will require 24H2 or later version for full functions, Windows 11 21H2/22H2/23H2 only supports Wi-Fi 6E.
• For Windows 10, only Wi-Fi 6 is supported.

Conectores Internos

• 1 x 4-pin CPU Fan header
• 1 x 4-pin CPU OPT Fan header
• 1 x 4-pin AIO Pump header
• 4 x 4-pin Chassis Fan headers
• 1 x W_PUMP+ header
• 1 x 24-pin Main Power connector
• 2 x 8-pin +12V CPU Power connectors
• 4 x M.2 slots (Key M)
• 2 x SATA 6Gb/s ports
• 1 x USB 20Gbps connector (supports USB Type-C® with up to 30W PD/PPS Fast-charge )
• 1 x USB 5Gbps header supports 2 additional USB 5Gbps ports
• 3 x USB 2.0 headers support 6 additional USB 2.0 ports
• 3 x Addressable RGB Gen 2 headers
• 1 x Chassis Intrusion header
• 1 x COM Port header
• 1 x Front Panel Audio header (F_AUDIO)
• 1 x S/PDIF Out header
• 1 x 10-1 pin Front Panel System header
• 1 x Thermal Sensor header

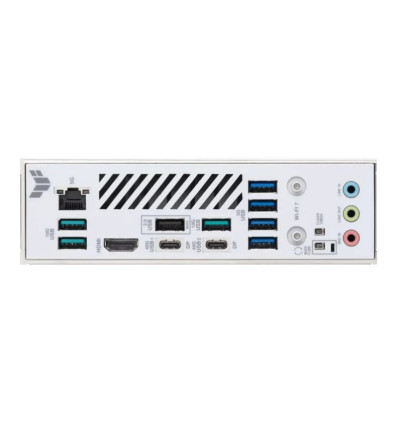

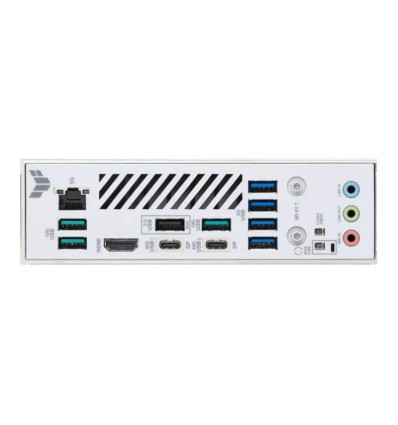

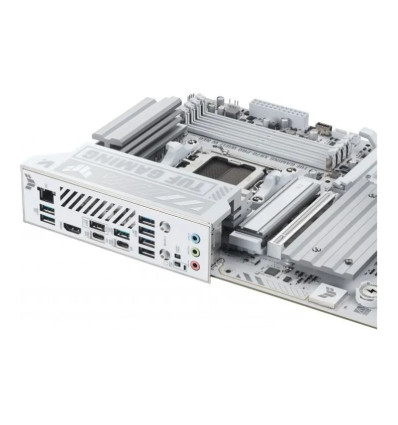

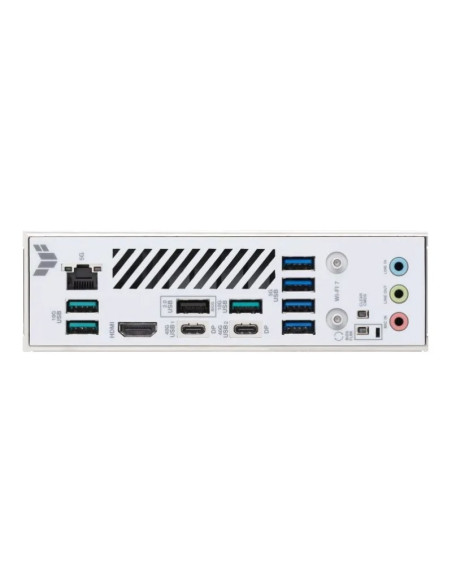

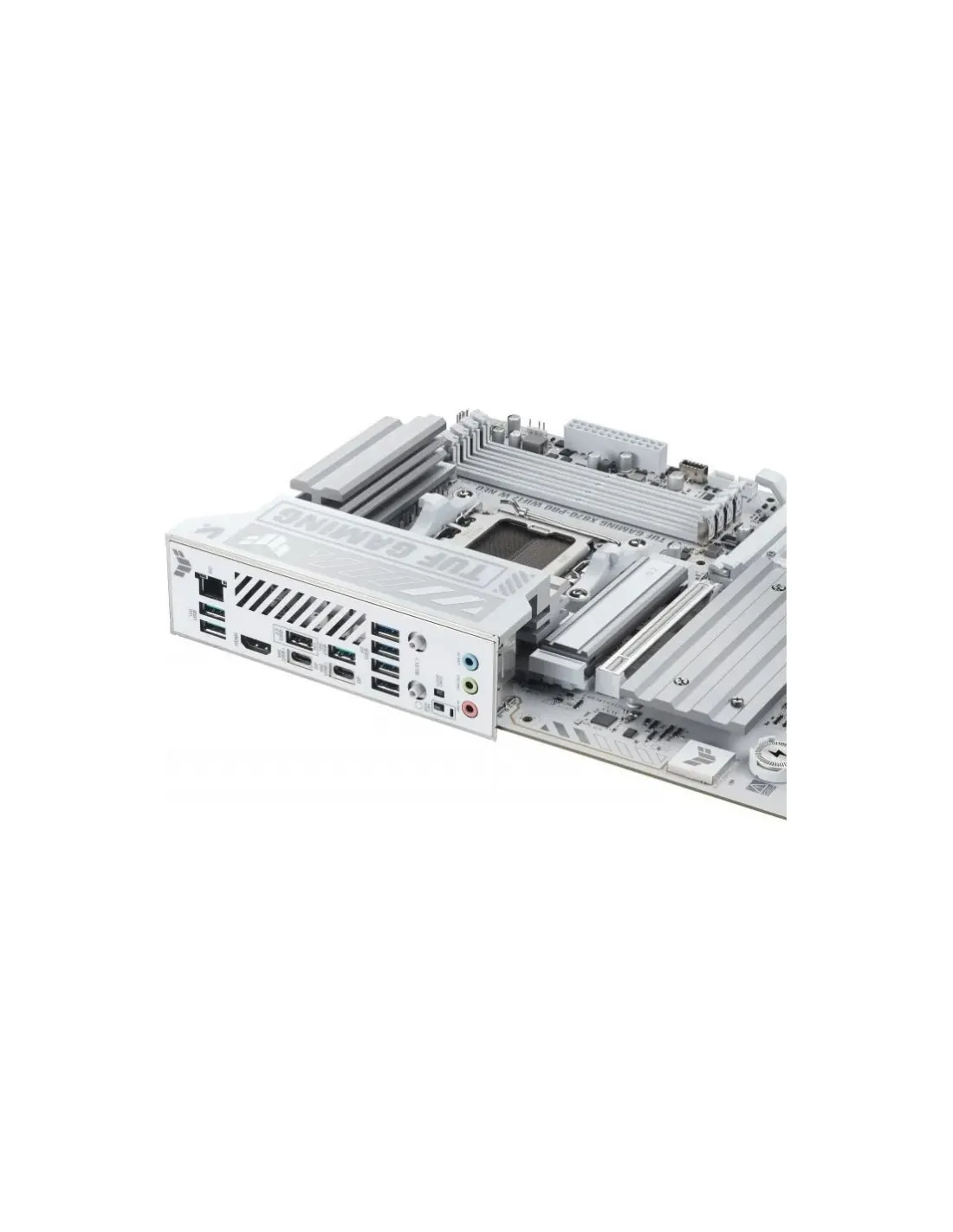

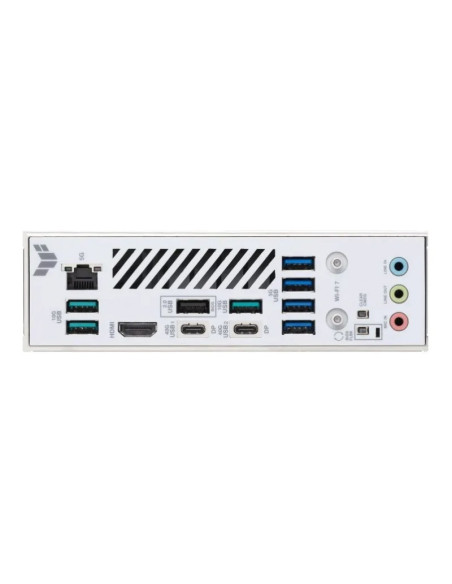

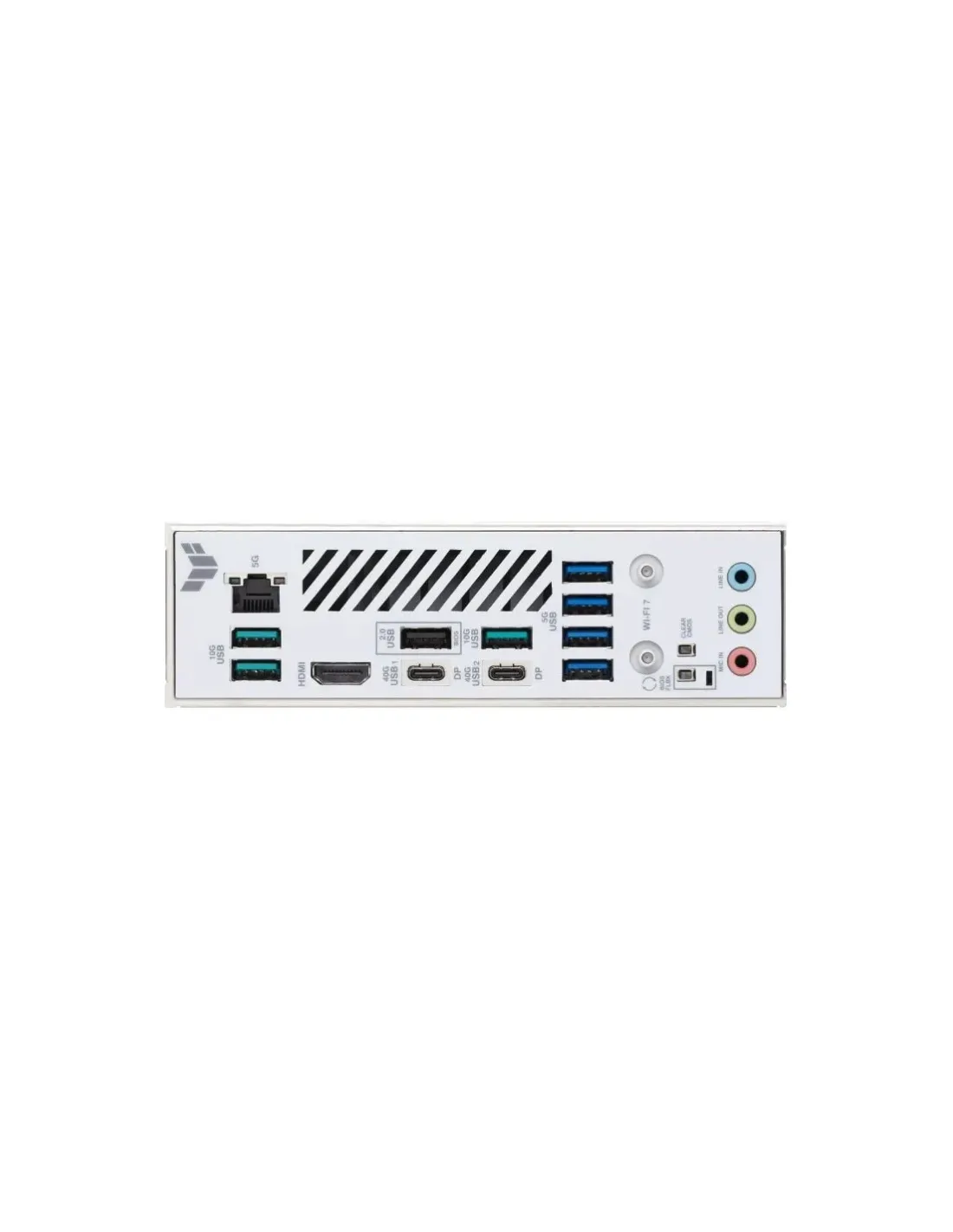

Conectores Traseros

• 2 x USB4® (40Gbps) ports (2 x USB Type-C®)
• 3 x USB 10Gbps ports (3 x Type-A)
• 4 x USB 5Gbps ports (4 x Type-A)
• 1 x USB 2.0 port (1 x Type-A)
• 1 x HDMI™ port
• 1 x Wi-Fi module
• 1 x Realtek® 5Gb Ethernet port
• 3 x Audio jacks
• 1 x BIOS FlashBack™ button
• 1 x Clear CMOS button

Factor de forma

• ATX ( 30.5 cm x 24.4 cm )
