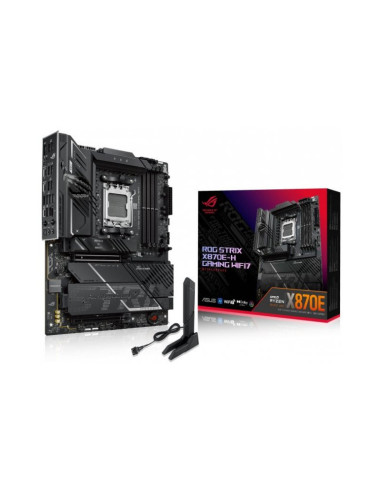

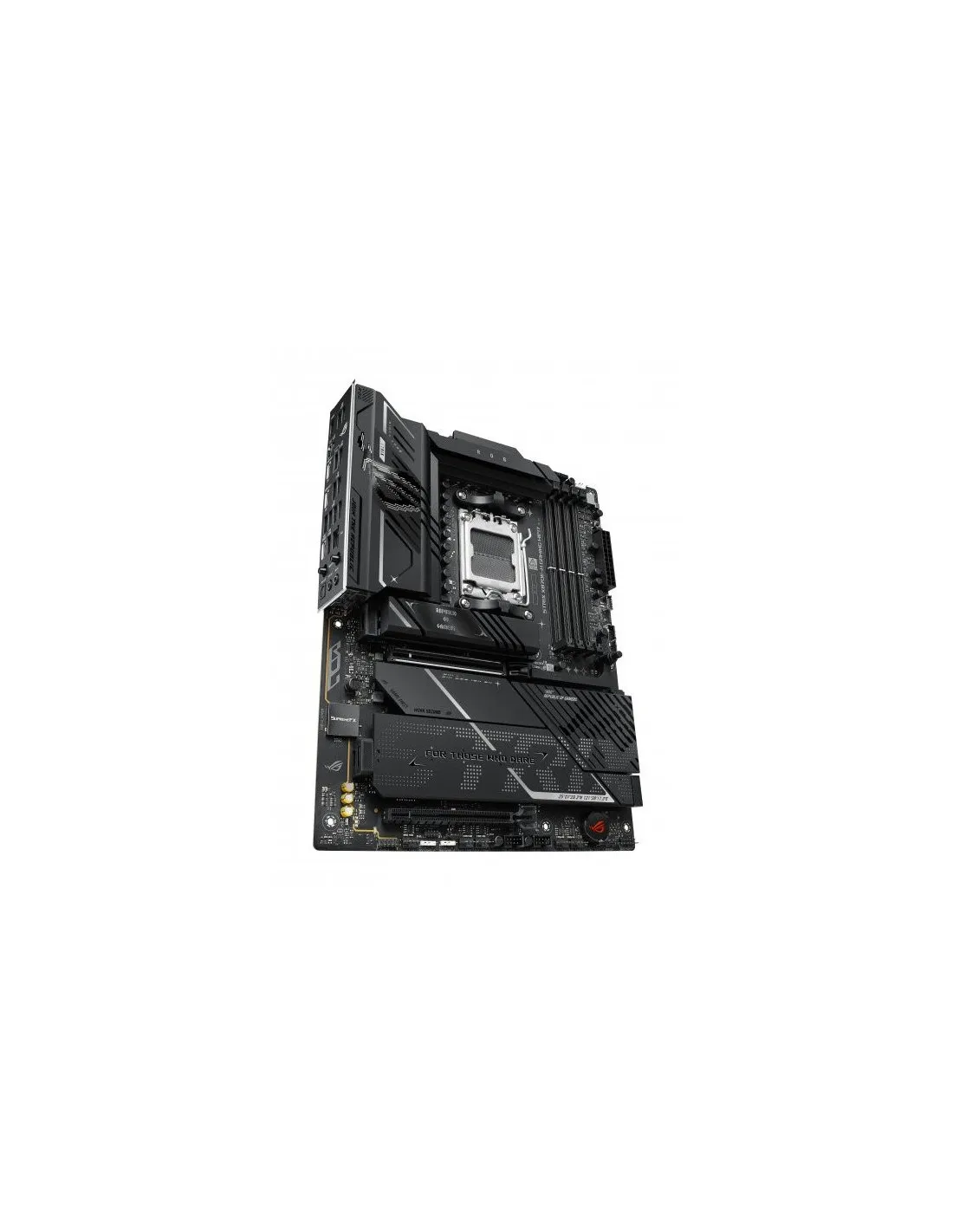

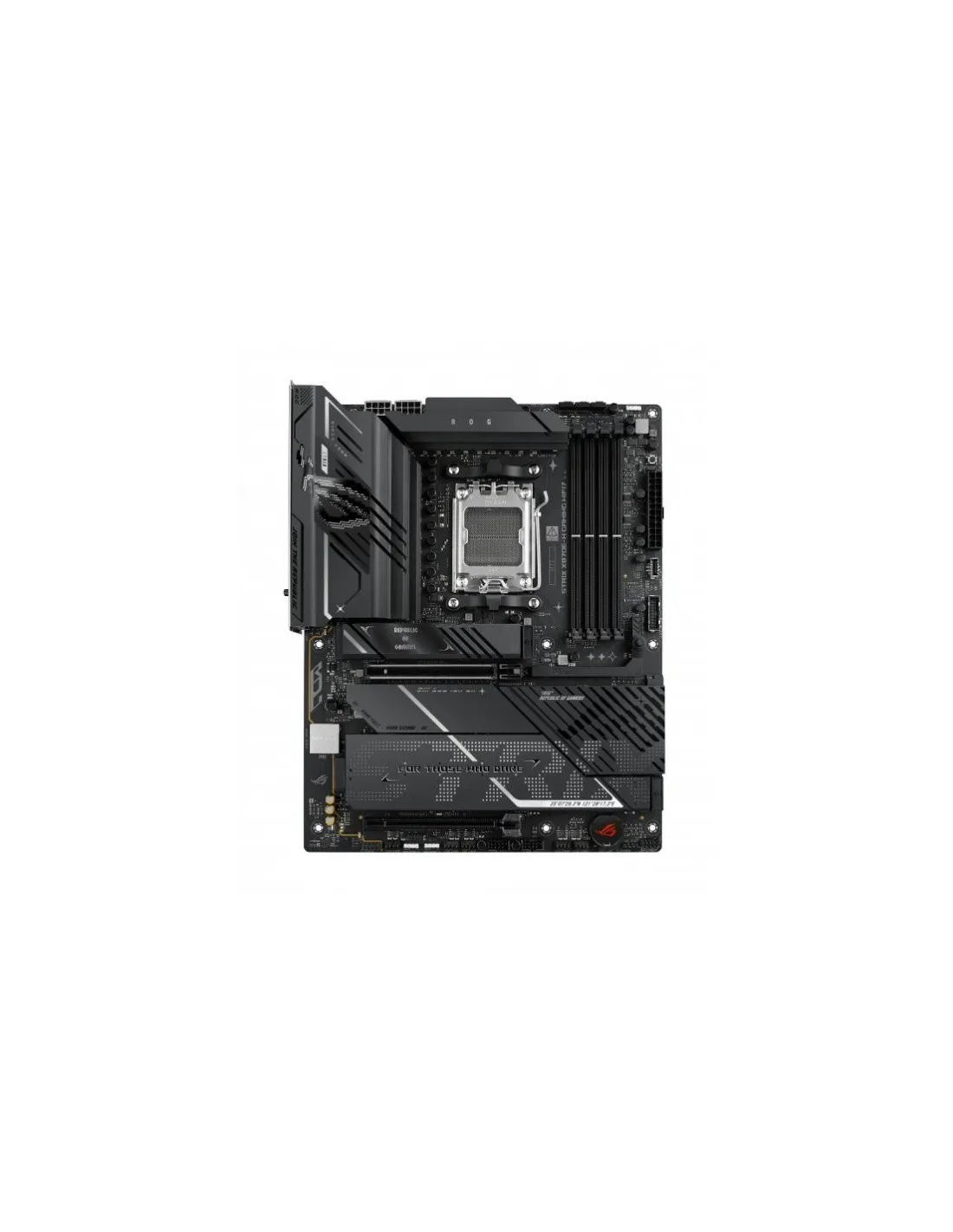

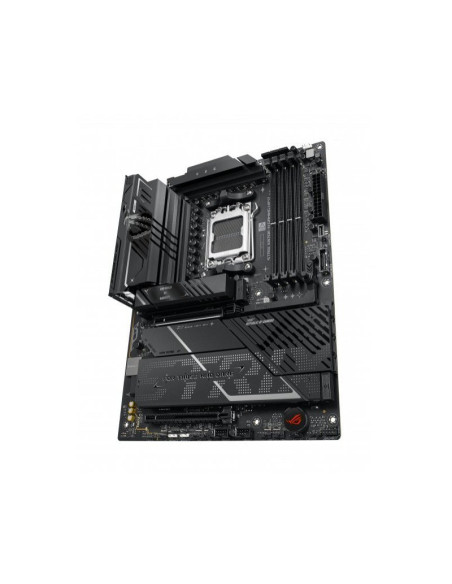

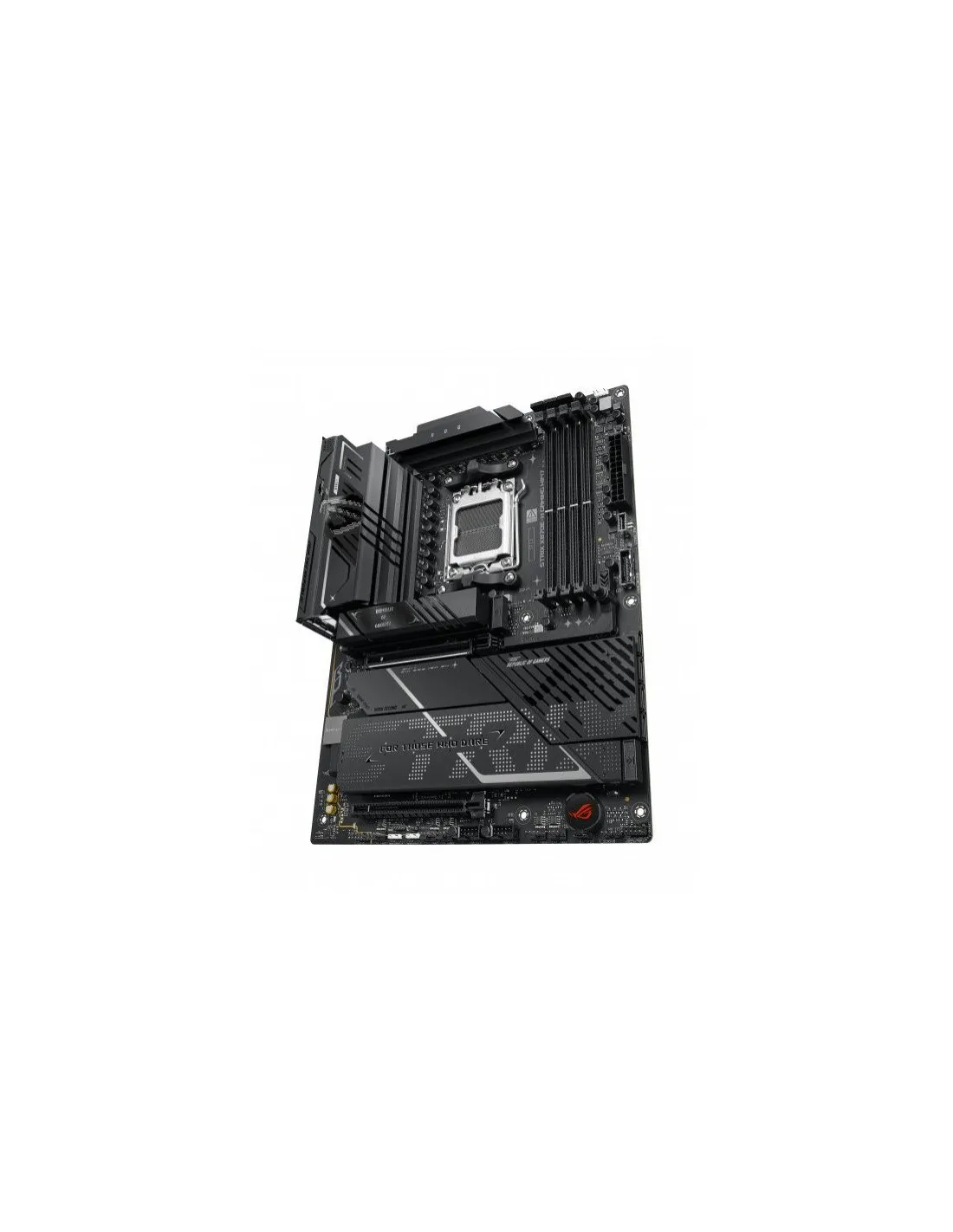

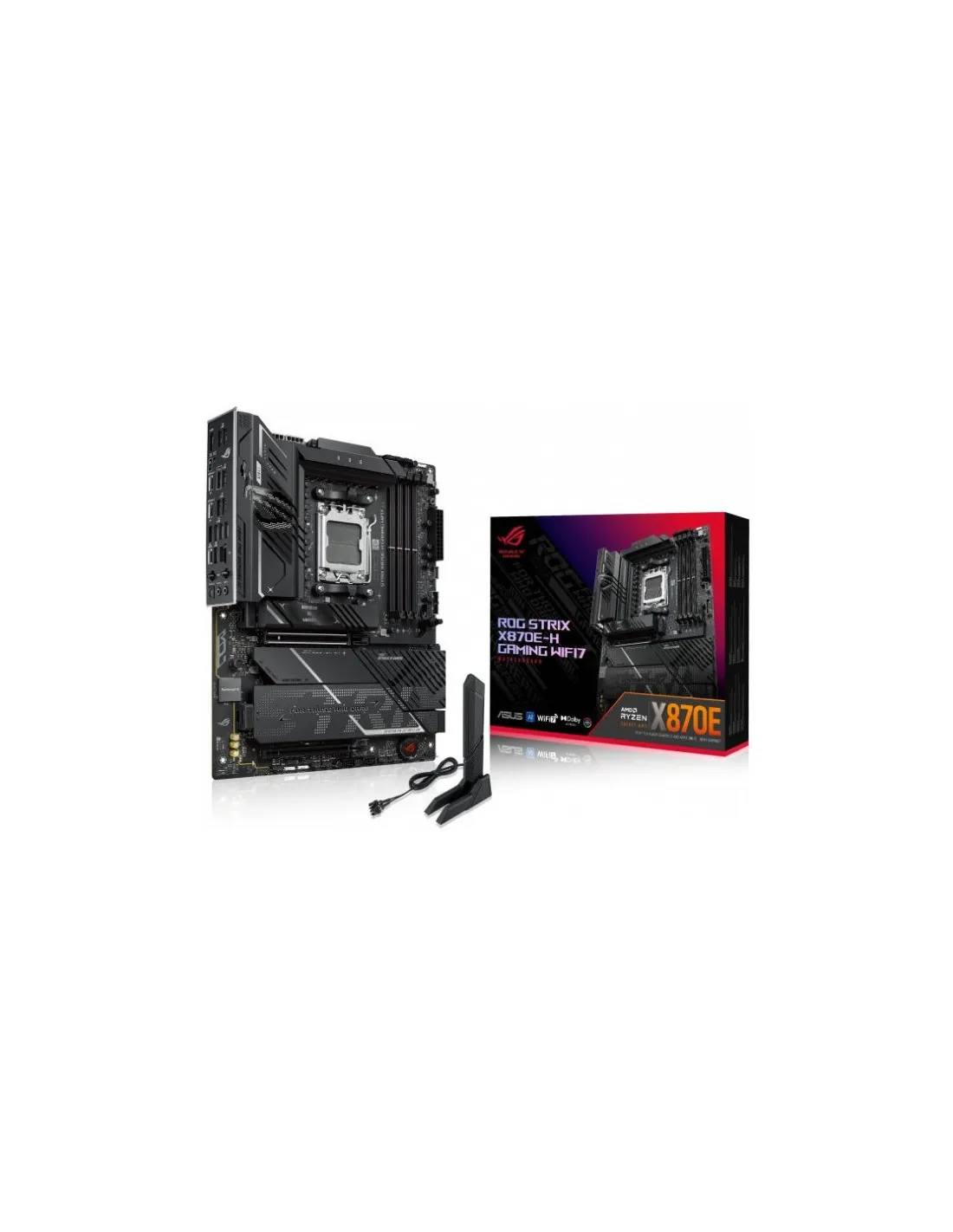

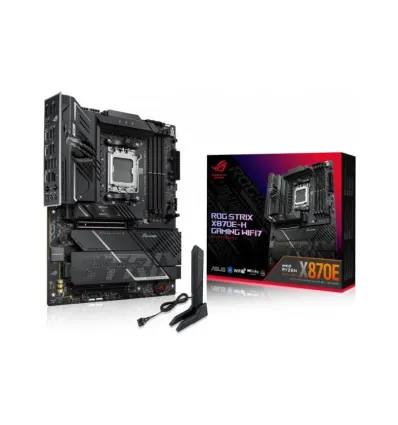

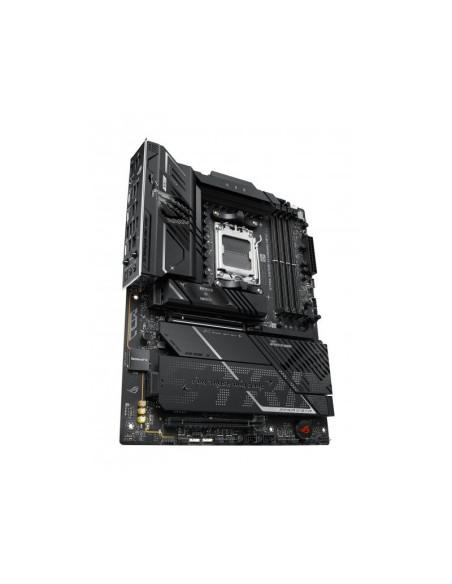

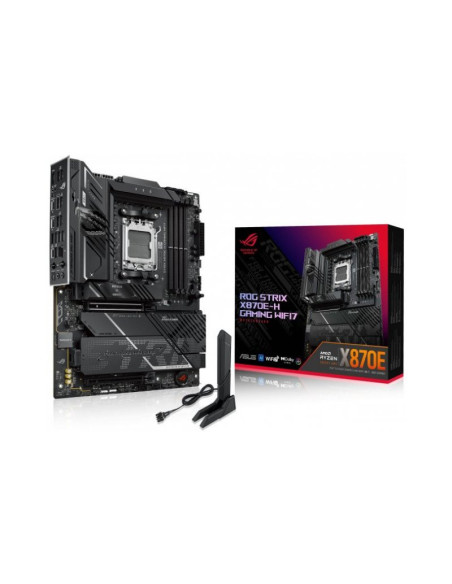

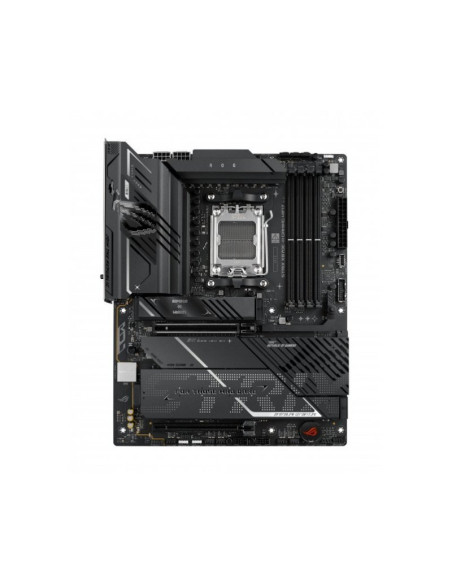

Asus ROG Strix X870E-H Gaming WiFi7 Socket AM5 ATX

Características de la placa base Asus ROG Strix X870E-H Gaming WiFi7

Procesador

• AMD Socket AM5 for AMD Ryzen 9000 & 8000 & 7000 Series Desktop Processors

Chipset

• AMD X870E

Memoria

• 4 x DIMM slots, max. 256GB, DDR5 Supports up to 8000+MT/s(OC) with Ryzen9000 & 8000 & 7000 Series Processors
• Dual channel memory architecture
• Supports AMD Extended Profiles for
• Overclocking (EXPO)
• Supports DIMM Fit / DIMM Fit Pro
• ASUS Enhanced Memory Profile (AEMP)

Slots

• 1 x PCIe 5.0 x16 slot (supports x16 mode)
• 1 x PCIe 4.0 x16 slot (supports x8/x4
• 1 x PCIe 4.0 x16 slot (supports x4 mode)

Gráficos

• 1 x HDMI port
• 2 x USB4 (40Gbps) ports support USBTipo C display outputs

Almacenamiento

• Supports 4 x M.2 slots and 4 x SATA 6Gb/s
• 4 x SATA 6Gb/s ports

USB

• 2 x USB4 (40Gbps) ports (2 x USB Tipo C)
• 4 x USB 10Gbps ports (3 x Tipo A + 1 x USB Tipo C with up to 30W PD/PPS Fast-charge)
• 6 x USB 5Gbps ports (6 x Tipo A)
• 2 x USB 2.0 ports (2 x Tipo A)
• 1 x USB 20Gbps connector (supports USB Tipo C)
• 1 x USB 5Gbps header supports 2 additional USB 5Gbps ports
• 2 x USB 2.0 headers support 4 additional USB 2.0 ports

Audio

• Realtek ALC1220P 7.1 Surround Sound High Definition Audio CODEC
• Impedance sense for front and rear headphone outputs
• Internal audio Amplifier to enhance the highest quality sound for headphone and speakers
• Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
• High quality 120 dB SNR stereo playback output and 113 dB SNR recording input (Line-in)
• Supports up to 32-Bit/192 kHz

Conectividad y redes

• 1 x Realtek 5Gb Ethernet
• Wi-Fi 7 (Realtek RTL8922AE) 2x2 (802.11be)
• Supports 2.4/5/6GHz frequency band
• Supports Wi-Fi 7 160MHz bandwidth
• Bluetooth v5.4

Conectores Internos

• 1 x 4-pin CPU Fan header
• 1 x 4-pin CPU OPT Fan header
• 1 x 4-pin AIO Pump header
• 5 x 4-pin Chassis Fan headers
• 1 x 24-pin Main Power connector
• 2 x 8-pin +12V CPU Power connector
• 4 x M.2 slots (Key M)
• 4 x SATA 6Gb/s ports
• 1 x USB 20Gbps connector (supports USB Tipo C)
• 1 x USB 5Gbps header supports 2 additional USB 5Gbps ports
• 2 x USB 2.0 headers support 4 additional USB 2.0 ports
• 3 x Addressable RGB Gen 2 headers
• 1 x Chassis Intrusion header
• 1 x CPU Over voltage jumper
• 1 x Front Panel Audio header (F_AUDIO)
• 1 x Start button
• 1 x 10-1 pin Front Panel System header
• 1 x Thermal Sensor header

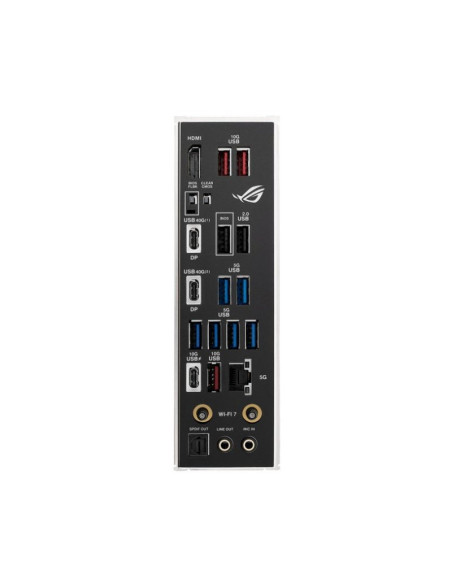

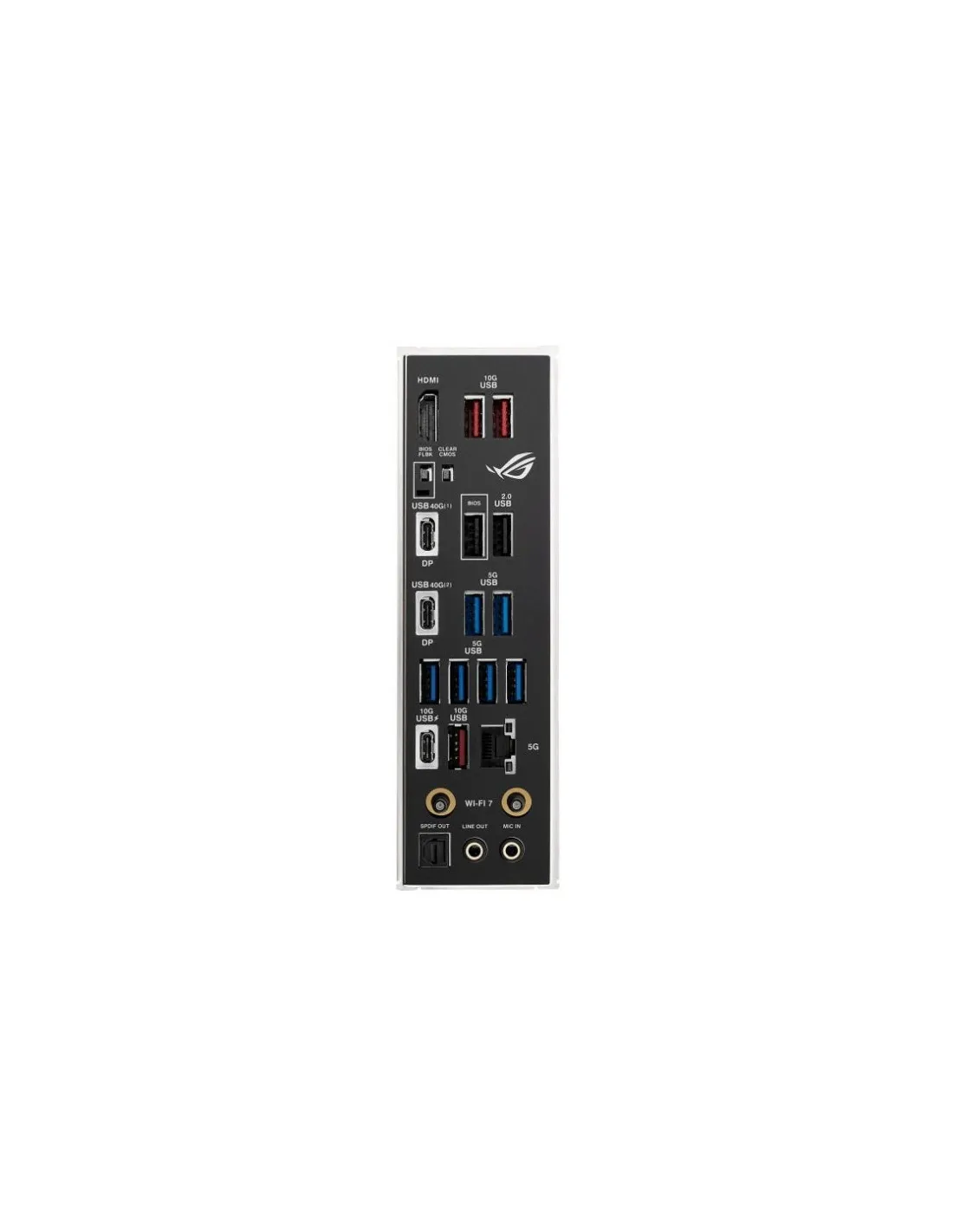

Conectores Traseros

• 1 x HDMI
• 2 x USB 4 Tipo C (40 Gbps)
• 2 x USB 2.0 Tipo A
• 3 x USB Tipo A (10 Gbps)
• 1 x USB Tipo C (10 Gbps) (Permite carga de dispositivos 30W / Carga rápida)
• 6 x USB Tipo A (5 Gbps)
• 1 1 x Wi-Fi module
• 1 x RJ45 (5GbE)
• 2 x Jack 3.5mm
• 1 x Salida óptica S/PDIF

Factor de forma

• ATX (30.5 x 24.4 cm)
