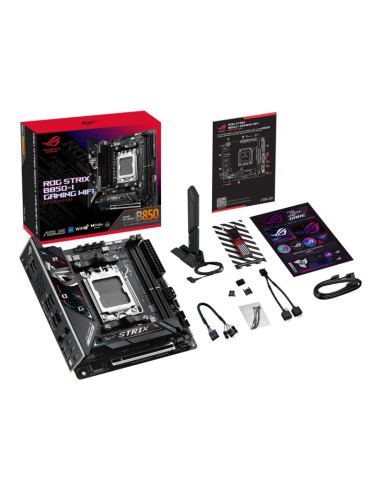

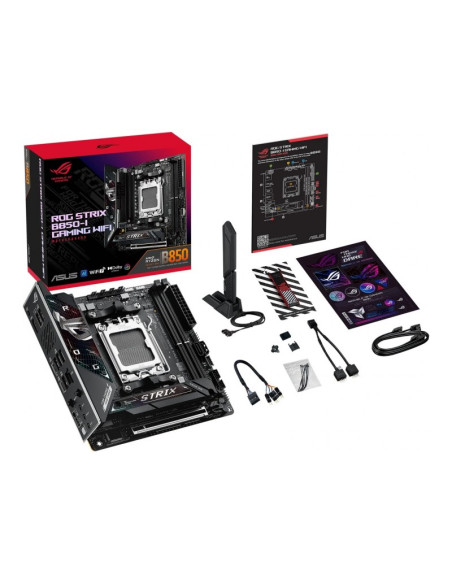

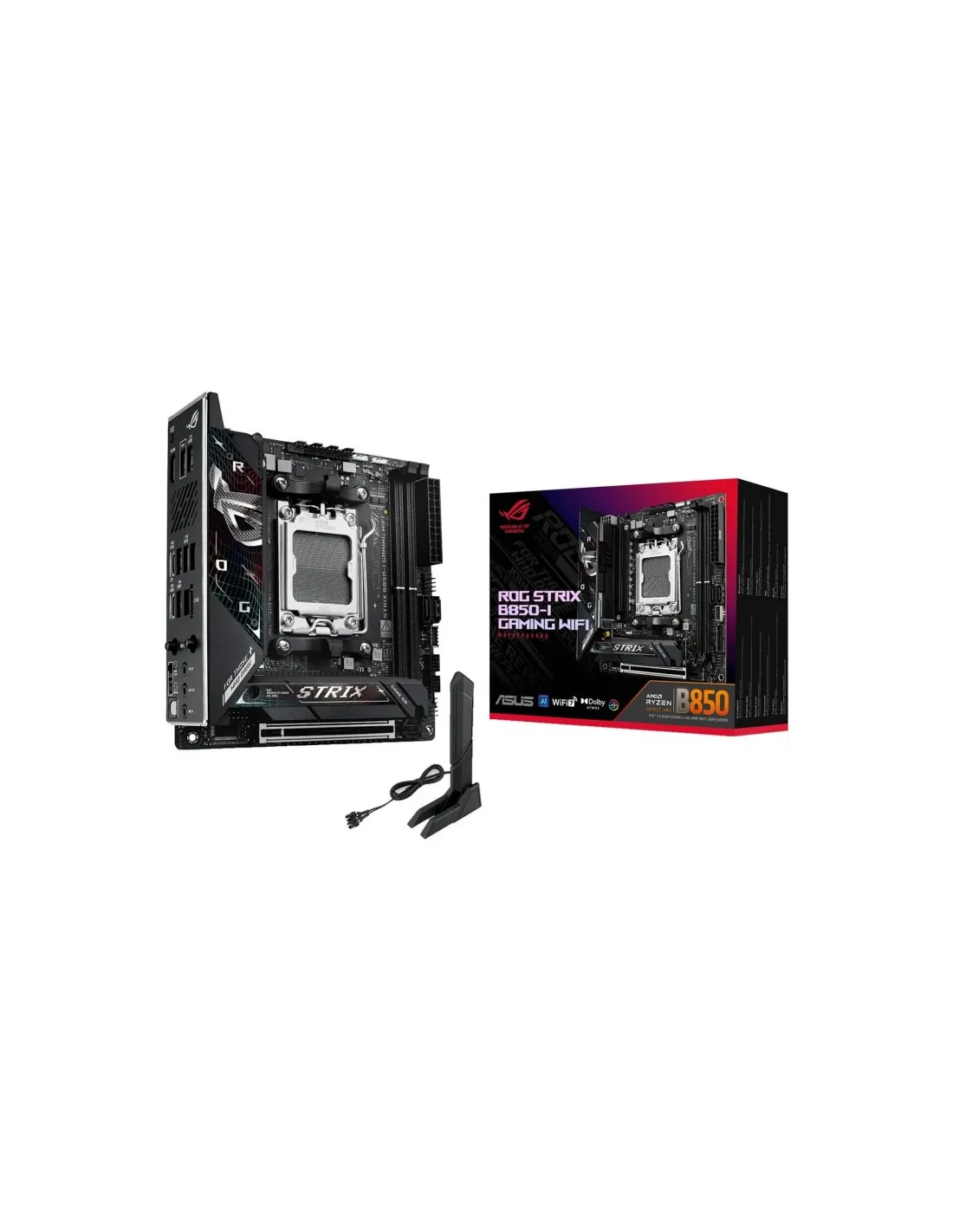

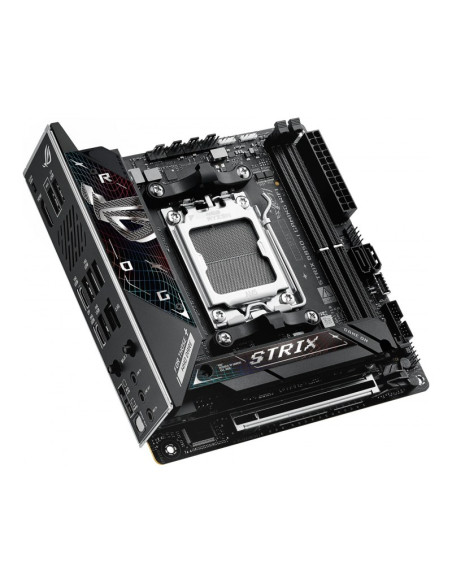

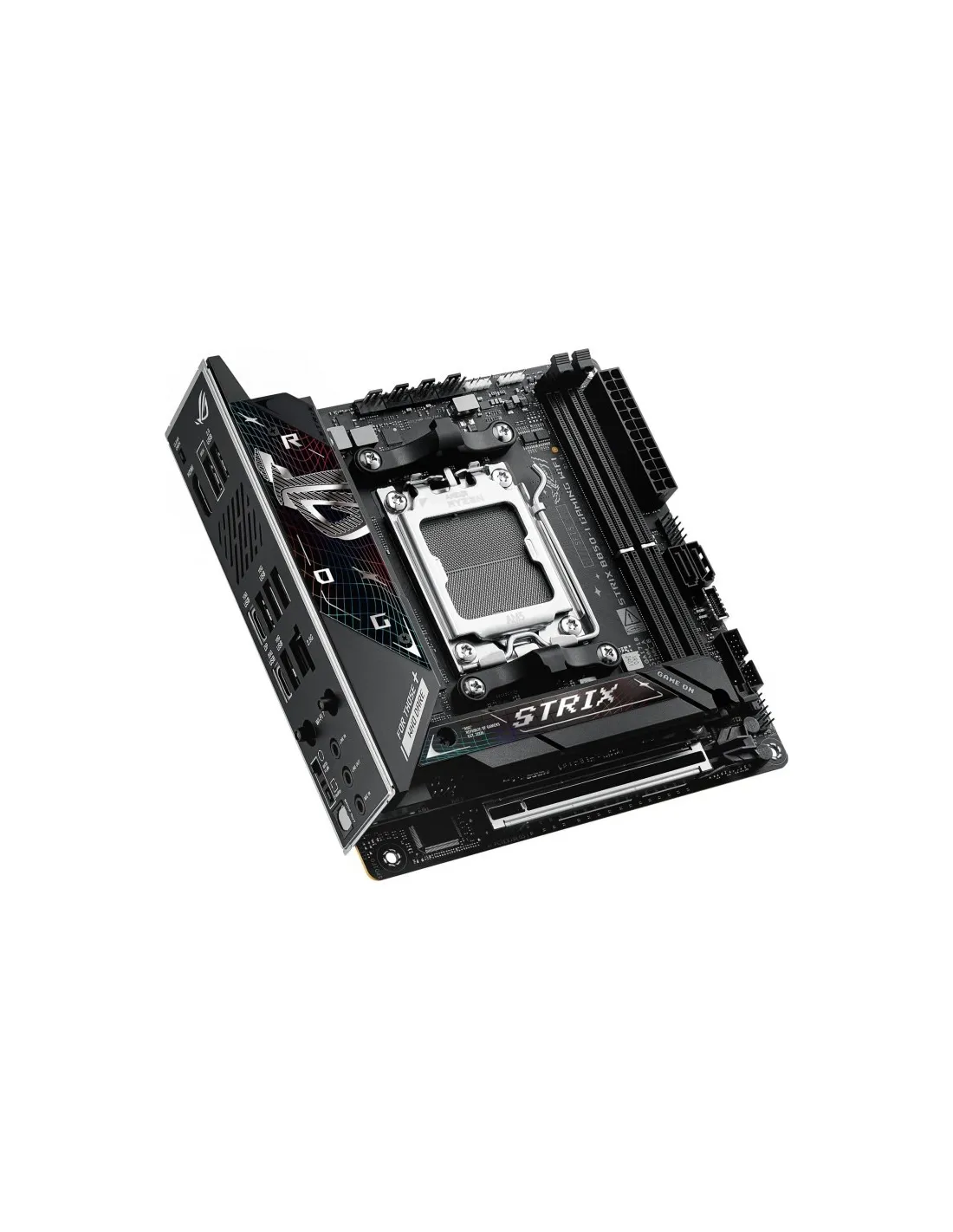

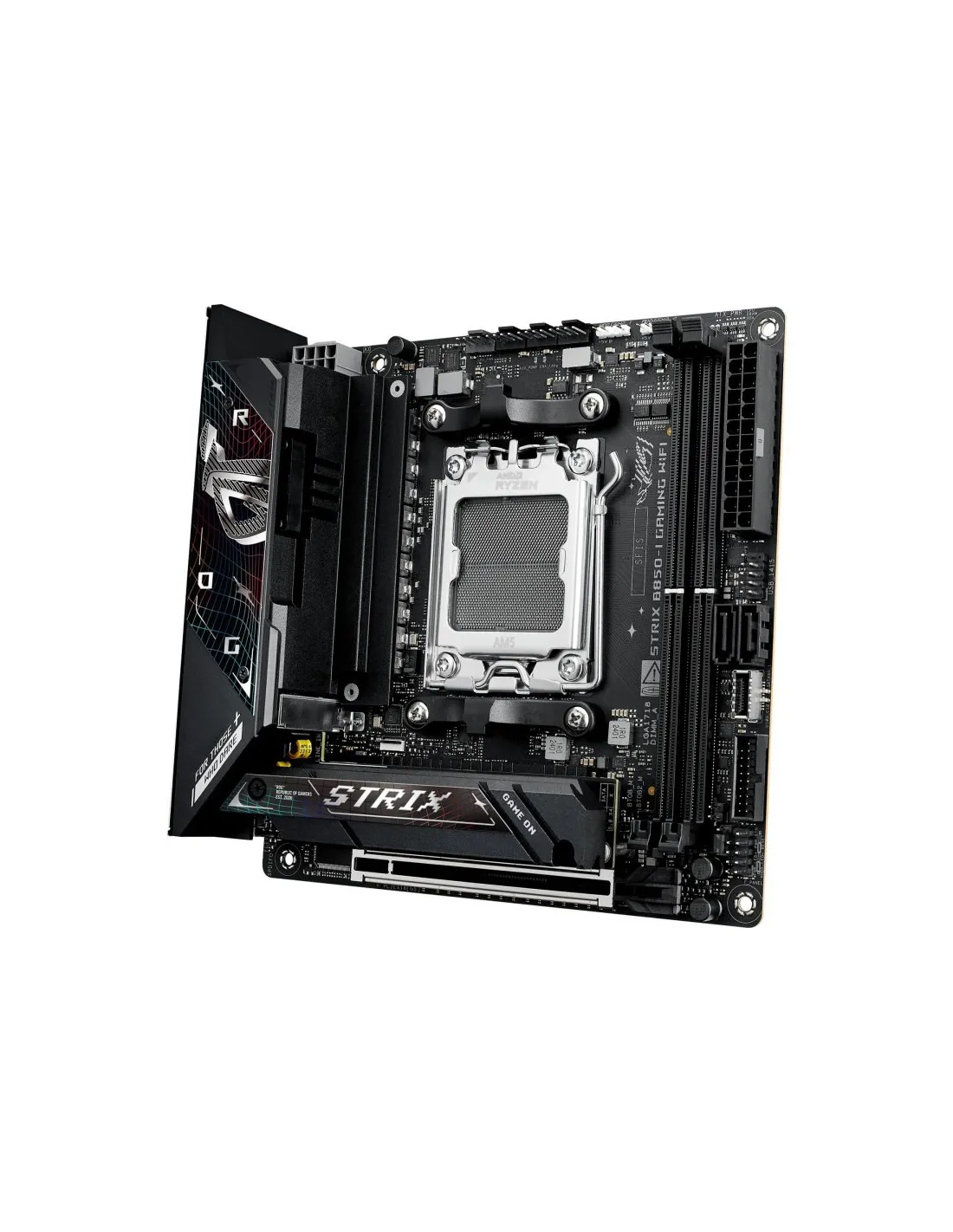

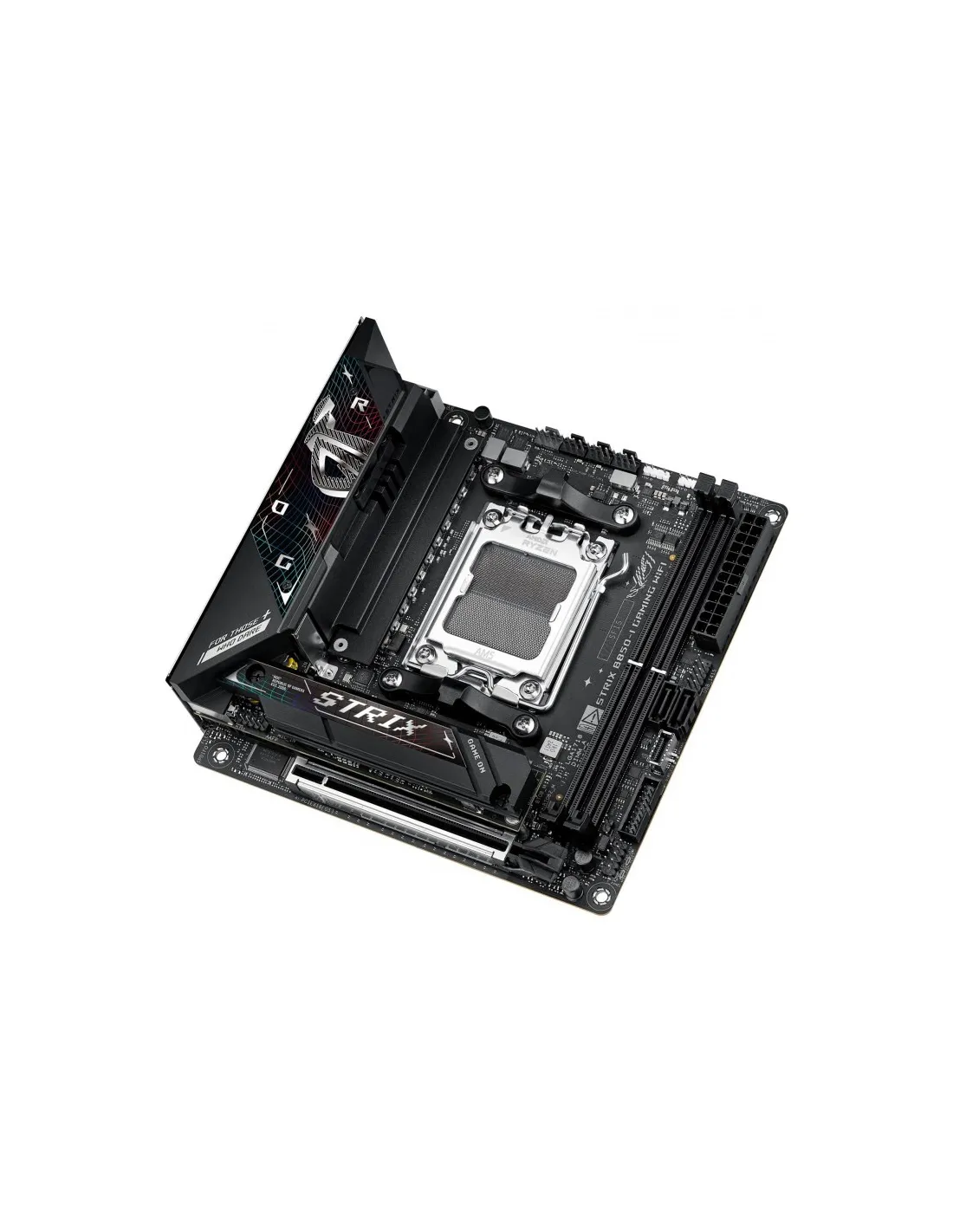

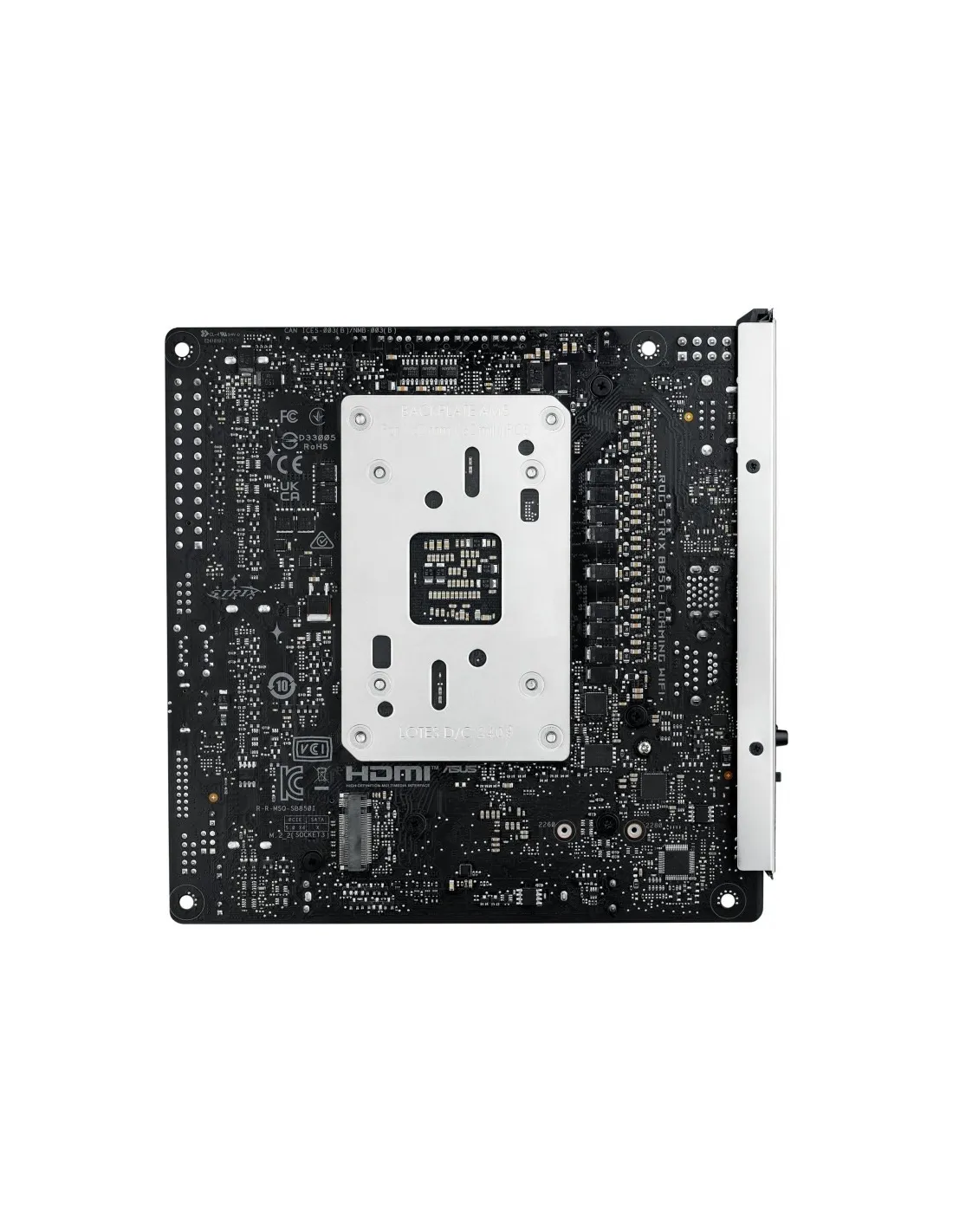

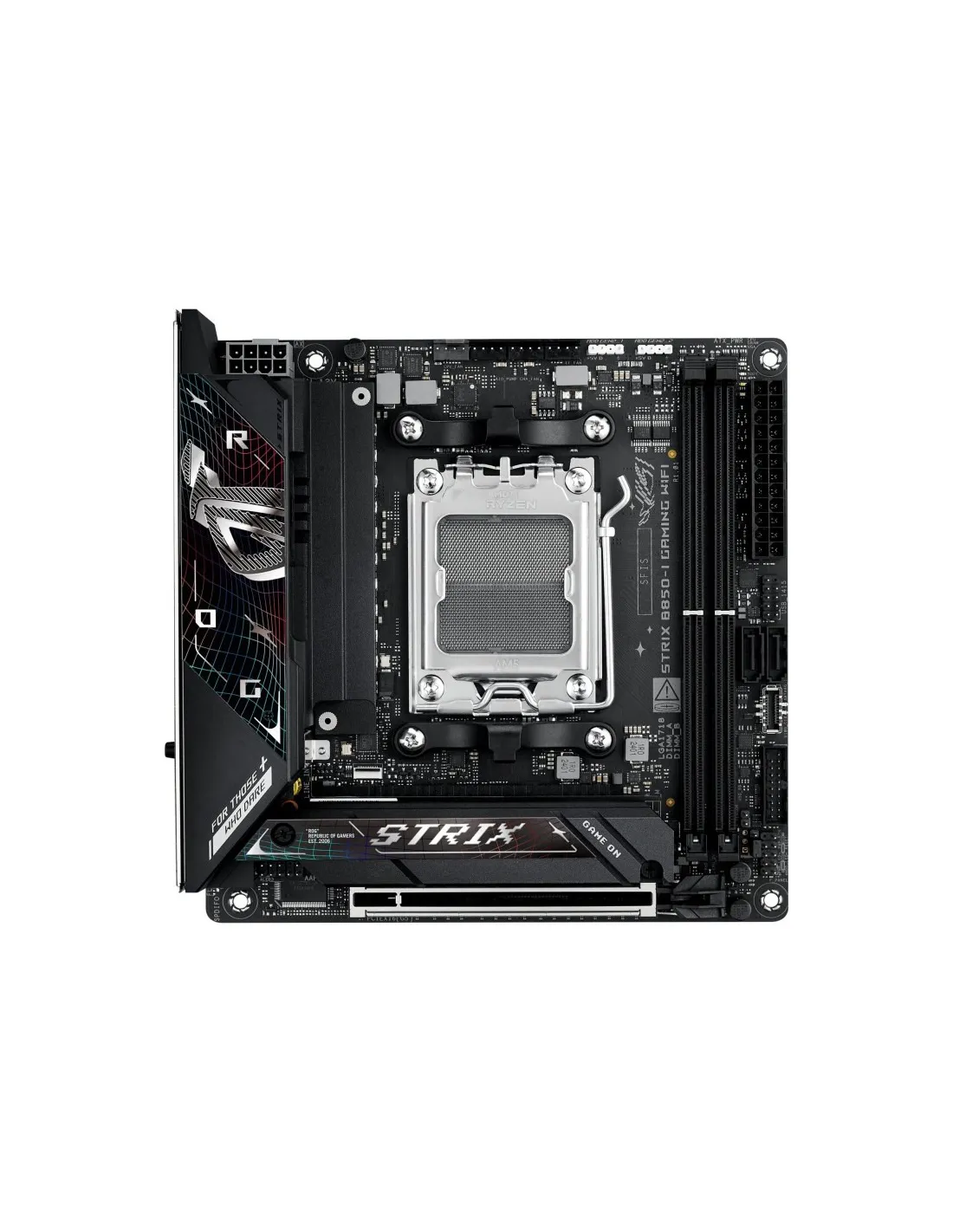

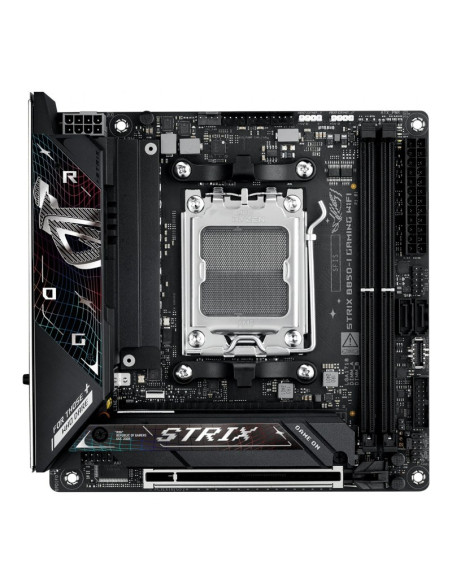

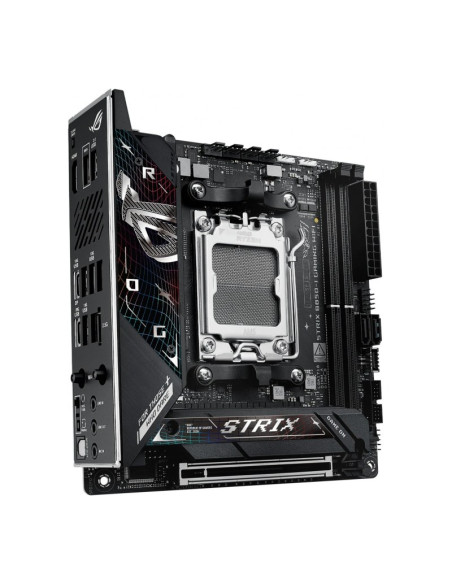

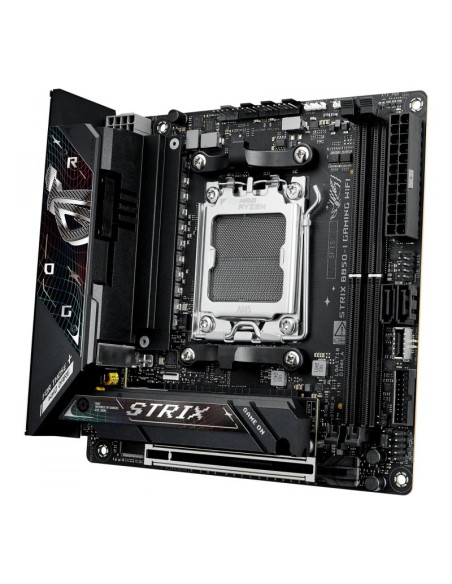

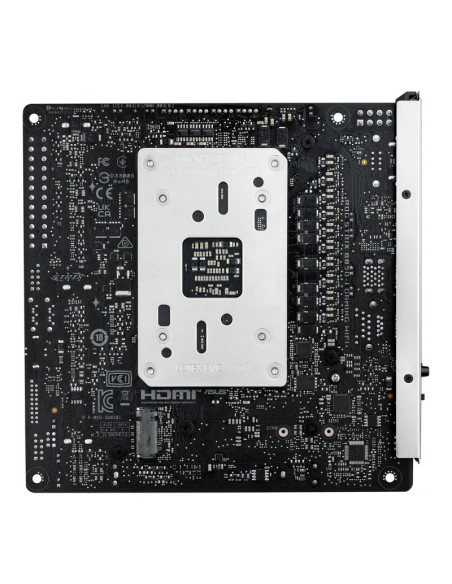

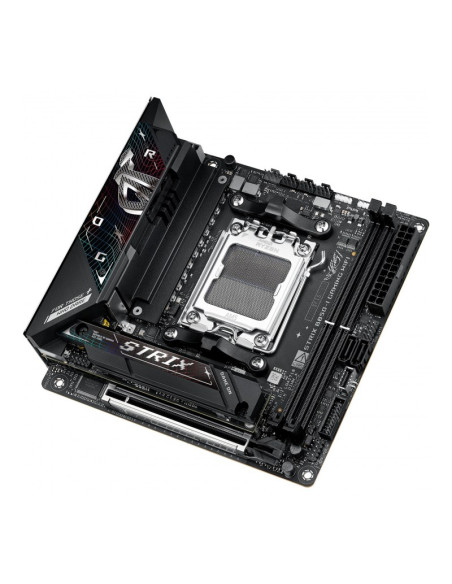

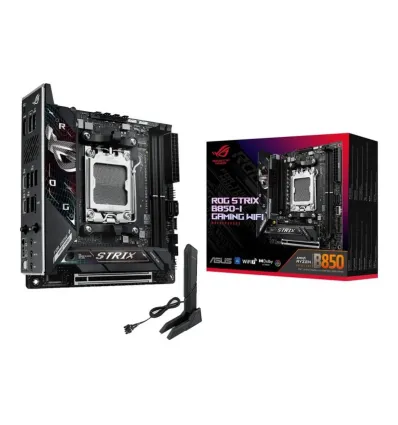

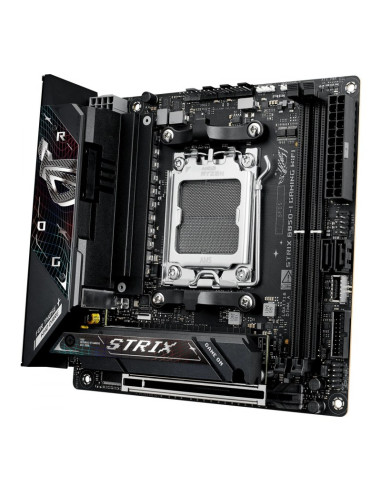

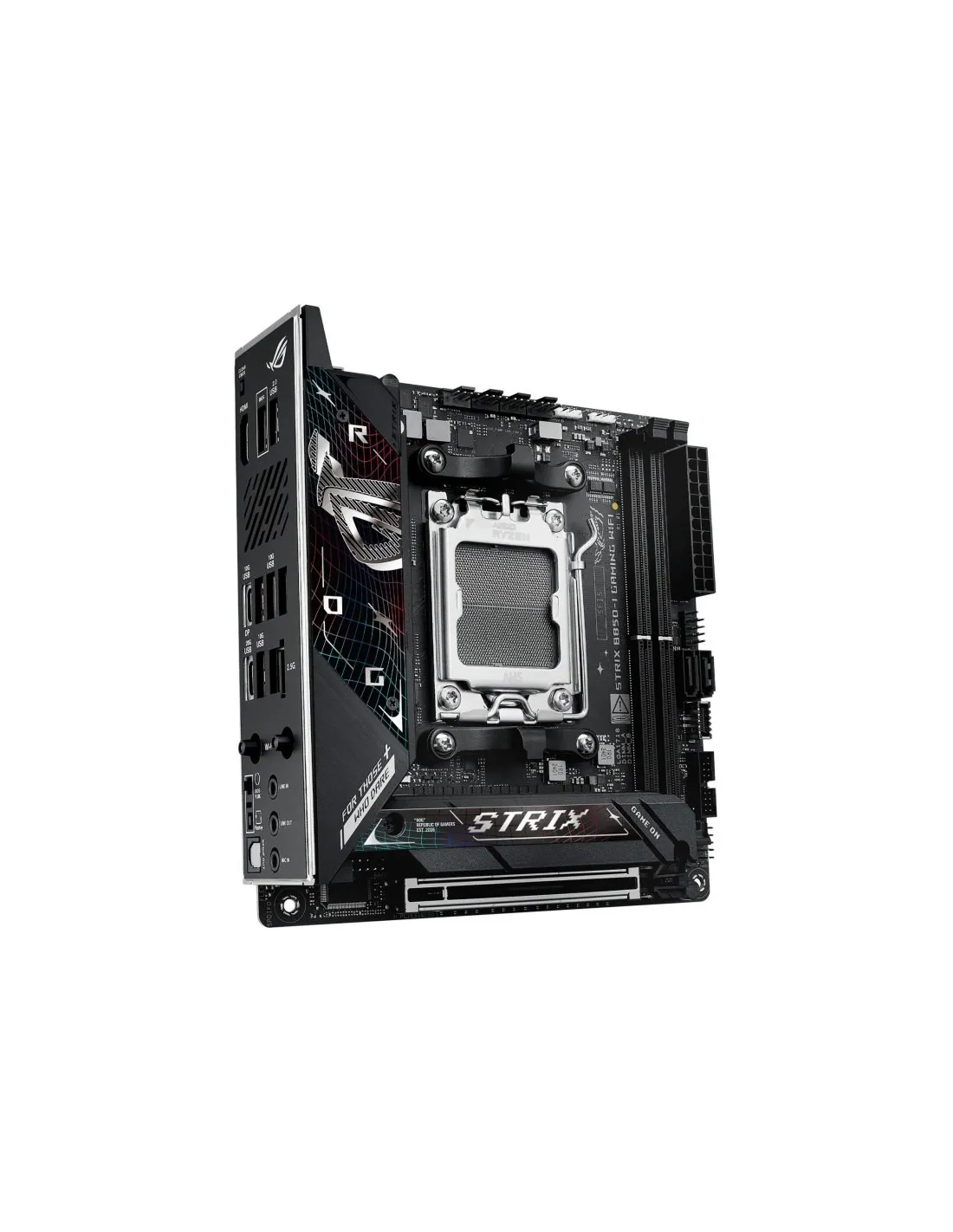

Asus ROG Strix B850-I Gaming WiFi Socket AM5 Mini-ITX

Características de la placa base Asus ROG Strix B850-I Gaming WiFi

Procesador

• AMD Socket AM5 for AMD Ryzen™ 9000 & 8000 & 7000 Series Desktop Processors

Chipset

• AMD B850

Memoria

• 2 x DIMM slots, max. 96GB, DDR5
• Supports up to
• 8200+MT/s(OC) with Ryzen™ 9000 Series Processors,
• 8400+MT/s(OC) with Ryzen™ 8000 Series Processors,
• 8000+MT/s(OC) with Ryzen™ 7000 Series Processors,
• ECC and Non-ECC Un-buffered DIMM"
• Dual channel memory architecture
• Supports AMD Extended Profiles for Overclocking (EXPO™)
• Supports DIMM Flex
• ASUS Enhanced Memory Profile (AEMP)

Slots

• 1 x PCIe 5.0 x16 slot(s)
• 1 x PCIe 4.0 x16 slot(s)

Gráficos

• 1 x HDMI™ port
• 1 x USB 10Gbps ports support USB Type-C® display outputs

Almacenamiento

• Total Supports 2 x M.2 slots and 2 x SATA 6Gb/s ports
• M.2_1 slot (Key M), type 2280 (supports PCIe 5.0 x4 mode)
• M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode)
• 2 x SATA 6Gb/s ports

USB

• 1 x USB 20Gbps port(s) (1 x USB Type-C®)
• 5 x USB 10Gbps port(s) (4 x Type-A + 1 x USB Type-C®)
• 2 x USB 2.0 port(s) (2 x Type-A)
• 1 x USB 10Gbps
• 1 x USB 5Gbps header(s) support(s) 2 additional USB 5Gbps ports
• 1 x USB 2.0 header(s) support(s) 2 additional USB 2.0 ports
• USB Type-C® power delivery output: max. 5V/3A

Audio

• ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4080
• Impedance sense for front and rear headphone outputs
• Supports: Jack-detection, Multi-streaming, Front Panel MIC Jack-retasking
• High quality 120 dB SNR stereo playback output and 110 dB SNR recording input
• Supports up to 32-Bit/384 kHz playback on front panel
• SupremeFX Shielding Technology
• Savitech SV3H712 AMP
• Rear optical S/PDIF out port
• Premium audio capacitors
• Unique de-pop circuit

Conectividad y redes

• Wi-Fi 7
• 2x2 Wi-Fi 7 (802.11be)
• Supports 2.4/5/6GHz frequency band
• Supports Wi-Fi 7 160MHz bandwidth, up to 2.9Gbps transfer rate.
• Bluetooth® v5.4
• 1 x Intel® 2.5Gb Ethernet
• ASUS LANGuard

Conectores Internos

• 1 x 4-pin CPU Fan header(s)
• 1 x 4-pin AIO Pump header(s)
• 1 x 4-pin Chassis Fan header(s)
• 1 x Extra Flow Fan header(s)
• 1 x 24-pin Main Power connector
• 1 x 8-pin +12V CPU Power connector
• 2 x M.2 slots (Key M)
• 2 x SATA 6Gb/s ports
• 1 x USB 10Gbps connector (support(s) USB Type-C® )
• 1 x USB 5Gbps header(s) support(s) 2 additional USB 5Gbps ports
• 1 x USB 2.0 header(s) support(s) 4 additional USB 2.0 ports
• 2 x Addressable Gen 2 header(s)
• 1 x CPU Over voltage jumper
• 1 x Front Panel Audio header (F_AUDIO)
• 1 x 10-1 pin Front System Panel header
• 1 x Thermal Sensor header

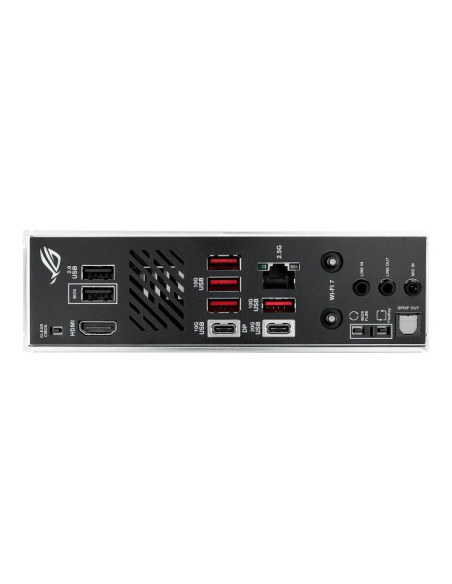

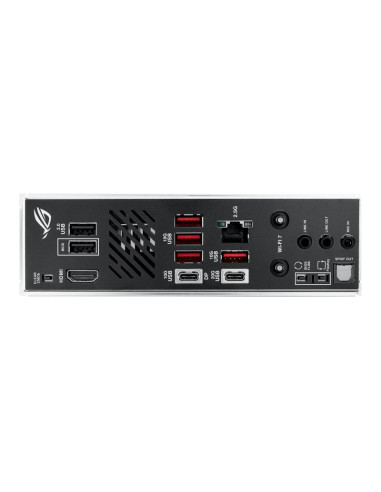

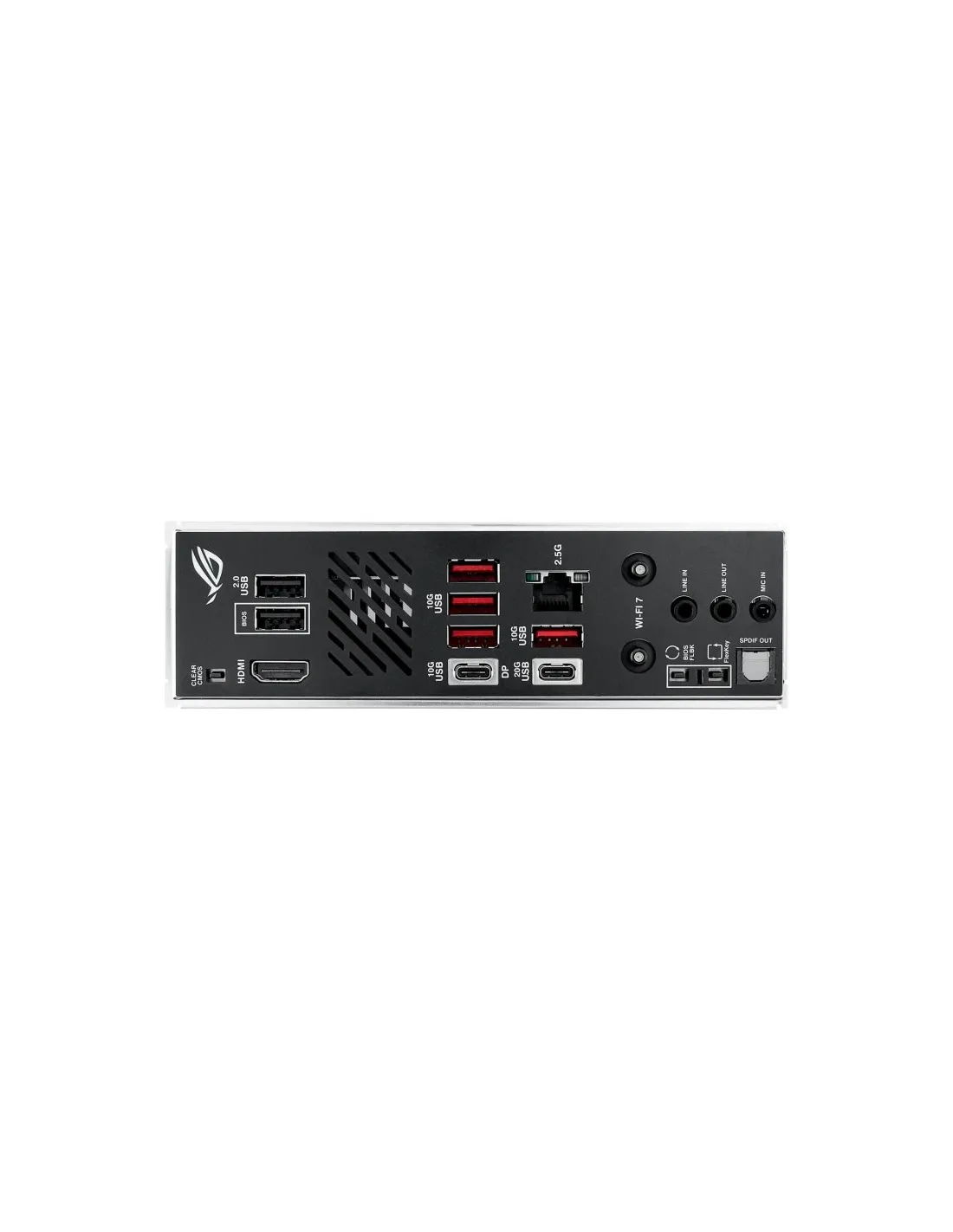

Conectores Traseros

• 1 x HDMI
• 1 x USB Tipo C (10 Gbps) DisplayPort
• 1 x USB Tipo A (20 Gbps)
• 4 x USB Tipo A (10 Gbps)
• 2 x USB 2.0 Tipo A
• 1 x Ethernet 2.5GbE
• 2 x Antena (WiFi / Bluetooth)
• 3 x Jack 3.5mm
• 1 x S/PDIF

Factor de forma

• Mini-ITX (17 x 17 cm)
